2.3.6 Camber

Through the camber you influence:
• the side tilt stability,
• the shoulder rear wheel position and
• the track width of the wheelchair.
INFORMATION

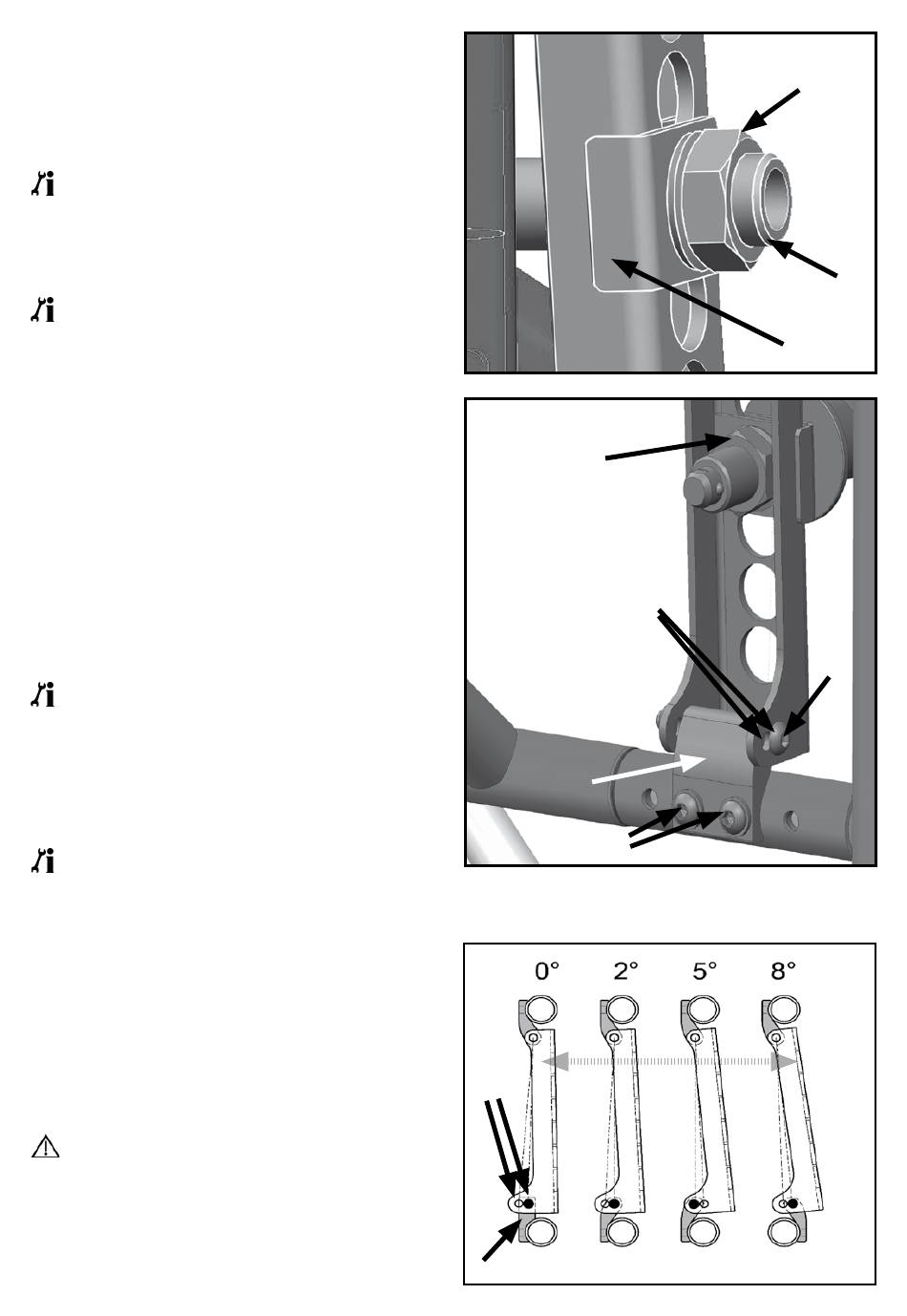

(1) To avoid the so called "eraser effect" we general-
ly mount the fitting track balance ex-works (A). With a
change of the camber afterwards, the track balance
adapter (A) must be replaced by one that fits (spare part).
INFORMATION
With a camber of 8° a distance block to the wheelbase
extension is necessary (spare part).
Adjusting the camber
• (2) Remove the rear wheels,
• remove screws (A) and move them in the alterna-
tive holes (B),
• retighten the screws.
For a camber of 8°:
• (2+3) remove the screws (A),
• remove the screws (C),
• move the perforated plate holder (D) by turning it
180° on the outer part of the frame tube,
• replace the screws (C) and tighten them,
• replace the perforated plate with the screws (A)
and tighten them.
INFORMATION
The setting may not be possible if you wish to widen the
seat, being that then you would have to turn the quick-re-
lease axle fittings too far out of the perforated plate.
Check/correct the distance of the rear wheel to the side
guard and skirt guard by attaching the rear wheel.
INFORMATION
The tire of the wheel must be at least 10 mm away from
the side guard/skirt guard. Take notice that the distance
on the left and right are the same!
(1) In order to screw on or screw off the quick-release axle
fittings:
• remove the screws of the fittings (B) (the lock nut
(2E) on the inner surface as well),
• turn the whole fitting (C) in the wanted position
and
• retighten the screws (tightening torque nuts M18
fitting 35 Nm).
ATTENTION
You must check the functionality of the knee lever brake
and if necessary reset them.
(1)
(2)
(E)
(B)
(D)
(C)
(3)
inner
(B)
(D)
Service Record
(B)
(C)
(A)
(A)
outer
