3.1 Assembly Group Wheels

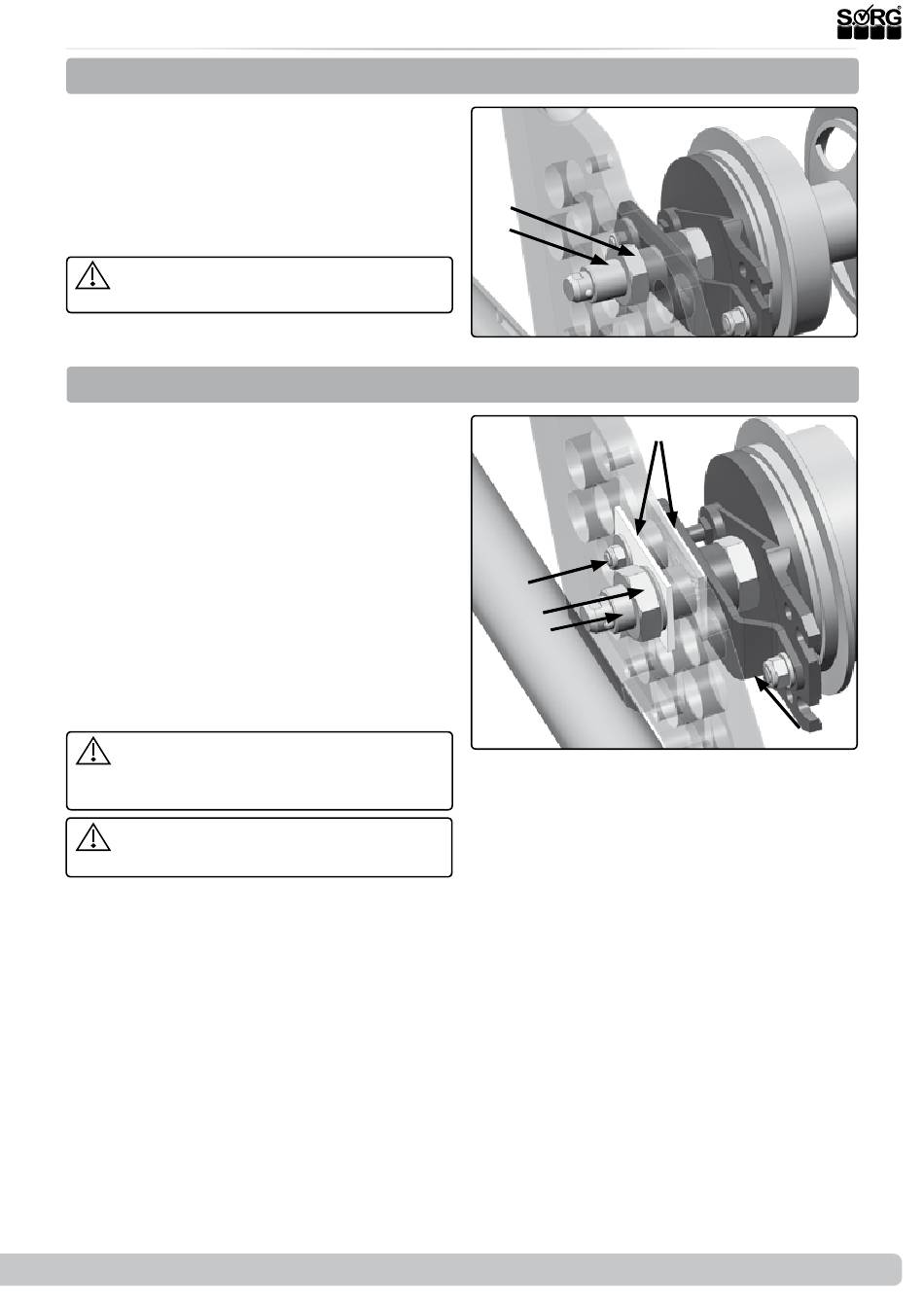

3.1.3 Displacing the wheels without a camber adapter (20",22",24")
•
(1) Remove the wheels,
•
remove the hexagon nut (A) of the
quick-release axle fitting (B),
•
place the fitting (B) in the new hole,
•
put the hexagon nut (A) back on, tighten
it and
•
place the wheels back on.
Correct the position of the knee lever
brake and be sure that it functions properly.
3.1.4 Displacing the wheels with a camber adapter (20",22",24")
•
(2) Remove the wheels,
•
remove the hexagon nut (A) of the
quick-release axle fitting (B),
•
remove the nut (C) from the brake arm
(D) including the inner shell,
•
remove both camber adapters (E) and
place them in front of the new position.
•
Fixate both camber adapters (E) with the
fitting (B) and the shell in the new posi-
tion,
•
replace the hexagon nut (A) and tighten
it,
•
replace and tighten the nut (C) from the
spacer.
The Camber adapters must always be
mounted opposite. At 0°: inner surface=
thick end facing up.
Correct the position of the knee lever
and be sure that it functions properly.
2019-07-16
(1)
(A)
(B)
(2)
(C)
(A)
(B)
