3.1 Assembly Group Wheels

3.1.3 Displacing the wheels with a camber adapter (20",22",24")

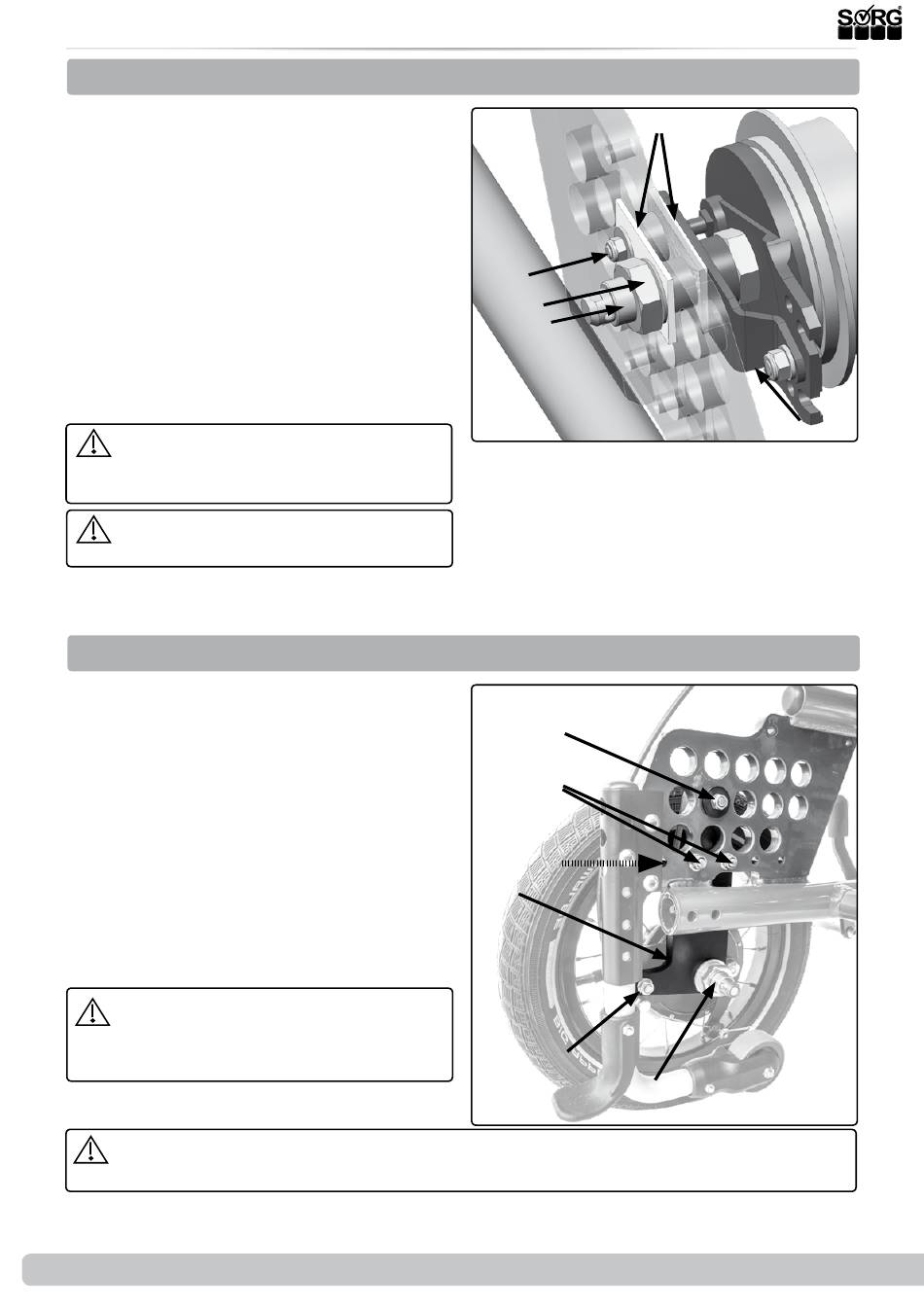

• (1) Remove the wheels,
• remove the hexagon nut (A) of the
quick-release axle fitting (B),
• remove the nut (C) from the brake arm
(D) including the inner shell,
• remove both camber adapters (E) and
place them in front of the new position.
• Fixate both camber adapters (E) with the
fitting (B) and the shell in the new posi-
tion,
• replace the hexagon nut (A) and tighten
it,
• replace and tighten the nut (C) from the
spacer.
The Camber adapters must always be
mounted opposite. At 0°: inner surface=
thick end facing up.
Correct the position of the knee lever
and be sure that it functions properly.

3.1.4 12"/16" wheels

Changing to 12"/16" wheels subsequently:
• (2) Remove the big wheels including the
brake pad, fitting and drum brake arm,
• mount the adapter (A) for the 12"/16"
wheels with the screws (B) in the bottom
hole row (C)
• mount the screw (D) with the delivered
discs in the proper hole.
• Mount the quick-release axle fitting (E)
with the brake pad and the drum brake
arm (F) analogously as described above
and
• put the 12"/16" wheels on.
Be sure that the drum brake functions
properly and if necessary establish its func-
tionality (see drum brake).
Whe using a knee lever brake, this must be displaced (see knee lever brake). Correct the
position and be sure that if functions properly.
To change the camber to 0°, please proceed as described.
