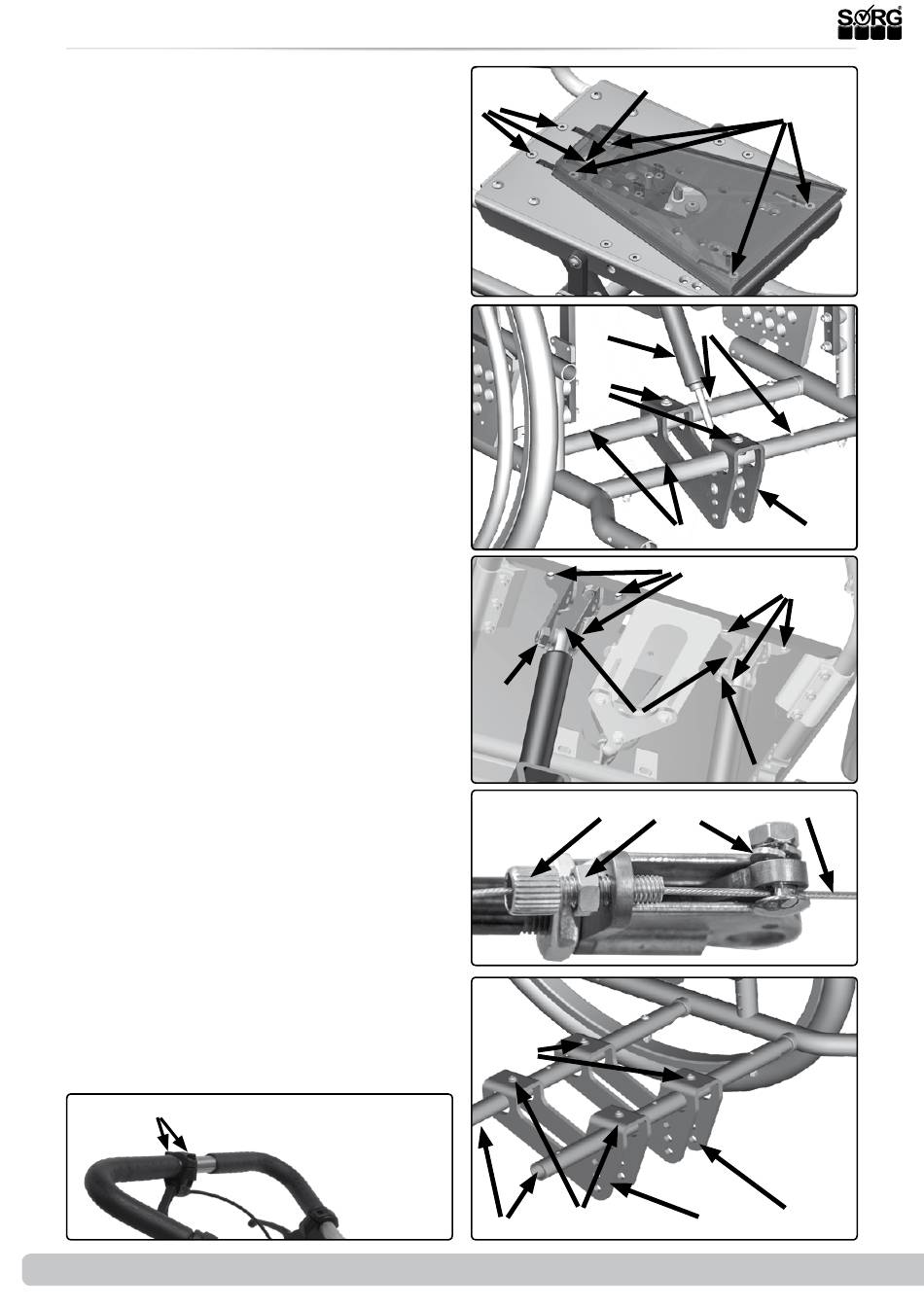

3.3 Assembly Group Seat
Step 1: control lever
(1) Remove both screws (A) from the
control lever and the spiral cable shell
from the Bowden cables and
remove the control lever of the seat
wedge under the seat plate.
Step 2: moving the gas spring
(2) Loosen the four screws (A) and
adjust the wedge adaptor so that the
front of the three screws (B) of the top
adapter is visible through the mount
hole (C).
With the screws (B), remove the top
adapter of the gas spring.
With frame size 1, there are only the back two
screws (B), where in this case you do not have
to remove the wedge adapter.
(3) Remove both screws (A).
Displace the adapter (B) including gas
spring (C) in the alternative holes (D).
(4) Displace the top adapter (A) in the
alternative holes (B) and fixate the gas
spring back in the top adapter with the
screw (C) as in the same mounting point
as before.
(5) Remove the inner cable of the
Bowden cable (A) on the release mech-
anism of the gas spring by loosening the
clamp (B) and the adjusting screw (C)
and/or the lock nut (D) and remove the
complete Bowden cable (A).
Step 3: removing half of the frame
Remove one half of the frame as de-
scribed in chapter before
Step 4: applying the new adapter
(6) Guide the second adapter (A) of
the gas spring on the traverses (B) and
connect the adapter with the screws (C)
tightly in the prepared holes of the tra-
verses (see also picture 3D).
(1)
(A)
22 of 44
(2)
(B)
(3)
(4)
(C)
(5)
(6)
(C)
(B)
Service Record Loop
SORG
(C)
(D)
(C)
(A)
(D)
(B)
(A)
(C) (D) (B)
(C)
(A)
(A)
(B)
(B)
(C)
(A)
(A)
2019-08-15
