3.3 Assembly Group Seat

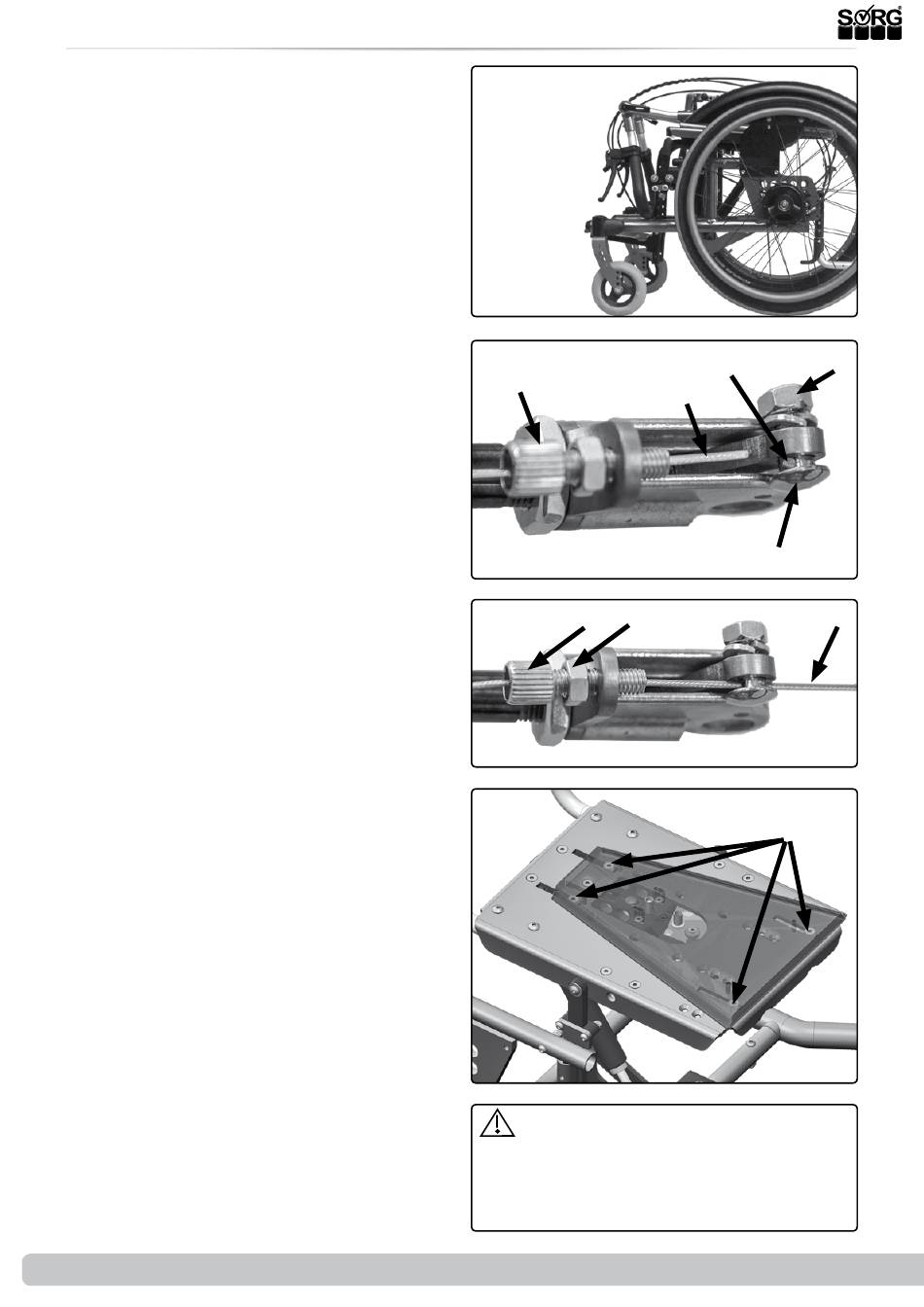

Step 10: installing the maximum length of the
Bowden cables
• Place the push bar in the maximum push
height,
• (1) fold the back of the Loop forward
and
• lie the push bar forward toward leg
support (see picture), so that maximum
length for the Bowden cables is reached.
• Now guide the new Bowden cable from
the release lever over the seat to the
back and then back to the front under-
neath the Loop to each release lever of
the gas springs.
• Fold the back of the Loop back in an up-
right position and
• cut the ends of both Bowden cables to
the needed measurements.
Step 11:
• (1) Fold the back of the Loop back in an
upright position.
Step 12: mounting the Bowden cables
• (2) Mount the ends (A) of both inner
cables on the release mechanism of the
gas spring.
• Guide the inner cables (B) first through
the adjusting screw (C), then through
the hole (D) of the clamp (E).
• With a thumb, push the release lever
(A) slightly upward toward the adjusting
screw (C).
• While pushing the adjusting screw up,
tighten the clamp (D) by turning it.
• (3) Shorten the excess piece of Bowden
cable (A) just far enough so that you can
adjust the release moment, if necessary,
with the clamp.
Step 13:
• Be sure that the release mechanism
functions properly and adjust the release
moment with the adjusting screw (3B)
and the lock nut (3C).
Step 14:
• Replace the back upright.
Step 15:
• (4) Push the wedge adapter back in the
wanted position and retighten the four
screws (A) for fixating the wedge adapt-
er.
24 of 44
(1)
(2)
(C)
(3)
(4)
After every change made on the seat
and/or the tilting, the tilt behavior of the
Loop must be newly tested and practiced
with a passanger and the help of an experi-
enced and strong person.
