Summary of Contents for SORG Loop 802

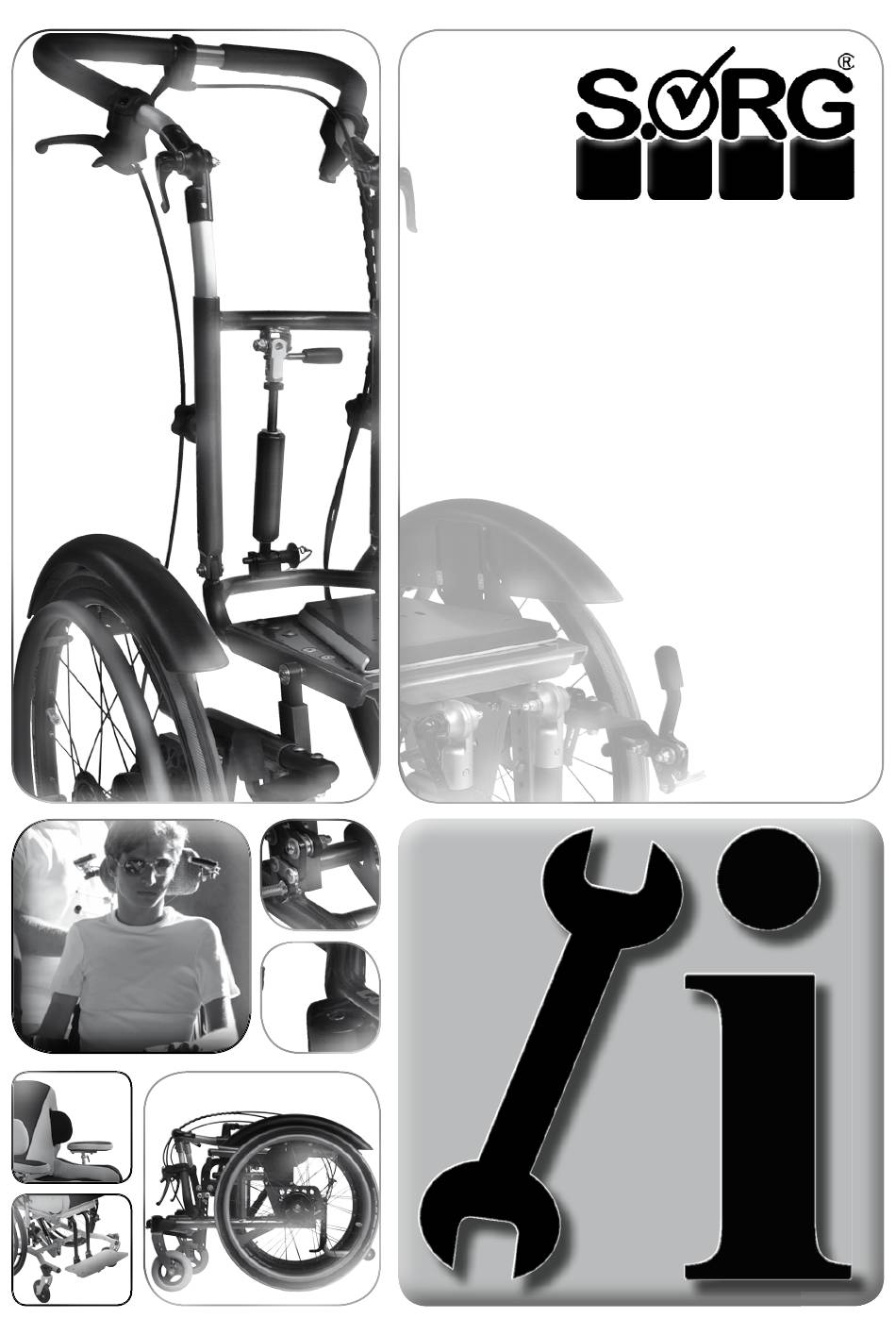

- Page 1 Service record for the rehab technician Loop SORG Type 802...
-
Page 2: Imprint
We are a member of rehaKIND e.V. International association child and adolescent rehabilitation COPYRIGHT © by SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5, 68794 Oberhausen-Rheinhausen. All texts and pictures in this user manual underlie the international copyright protection and are not allowed to be published without our consent –... -
Page 3: Table Of Contents
service record IMPRINT 2.4.5 Changing the basic setting of REVISION STATUS the push height TECHNICAL STATUS rehaKIND ASSEMBLY GROUP LEG SUPPORT COPYRIGHT 2.5.1 Positioning the leg supports CERTIFICATION 2.5.2 Leg supports: standard or Wheelchair Overview angle adjustable 2.5.3 Leg supports which swing to the side 24 2.5.4 Leg support can be elevated with a physiological turning point PREAMBLE... -
Page 4: Wheelchair Overview
Loop SORG Wheelchair Overview Overview Loop SORG height adjustable push bail control lever for drum brake eccentric clamp to adjust the angle of the push bail gas spring to adjust the angle of the back star knob screw to adjust the height of the push... -
Page 5: Preamble
All of our wheelchairs fulfill the guidelines and require- tation. ments according to 93/42/EWG, 2007/47/EWG and EN12183:2009. SORG Rollstuhltechnik is also certified ac- CONFIRMATION OF RECIEPT cording to the quality management system ISO 9001. With �... -
Page 6: Documentation
Loop SORG DOCUMENTATION TIGHTENING TORQUE AND TOOLS � INDICATION INFORMATION Keep this service record in a safe place. Have all work/ Technical changes reserved. repairs done on your wheelchair documented by the med- ical supply store in the maintenance plan. If applicable, Screws hand it back to your benefactor along with the wheelchair. -
Page 7: Adjustments
service record 2. ADJUSTMENTS 1 2 3 4 5 ASSEMBLY GROUP REAR WHEELS 2.1.1 Position ATTENTION Check the tilt stability of Loop while fully tilted and with the patient, after all positioning adjustments of the rear wheels have been made and, if necessary, modify the po- sition! (1) We mount: •... -
Page 8: 12" Wheels
Loop SORG 2.1.4 12” wheels Changing to 12” wheels subsequently: • (1) Remove the big wheels including the brake pad, fitting and drum brake arm, • mount the adapter (A) for the 12” wheels with the screws (B) in the bottom hole row (C) (also see 2.1.1, Picture 1D),... -
Page 9: Wheel Base Extension For 20" + 22
service record 2.1.6 Wheel base extension for 20” + 22” Preparing to extend the wheel base: • remove the wheels on both sides including brake pads, fittings etc. • remove the wheel cover holder completely, • remove, if necessary, the anti-tipper completely. To extend the wheel base on 20”... -
Page 10: Casters
Loop SORG 2.1.8 Casters To adjust the caster adapters: • (1) loosen all four screws (A), also the ones on the frame inner surface, that connect the adapter and the frame pipe together on both sides, (frame inner • loosen both screws (B), surface) •... -
Page 11: Assembly Group Frame
service record ASSEMBLY GROUP FRAME 2.2.1 Frame arch for closed frames In order to add the frame arch for a closed frame in the front, proceed on both sides of the frame in the same man- ner as follows: • (1) Remove the caster adapters on both sides (3A) including the half shells (3B) as described in 2.1.9, (A) (B) -
Page 12: Widening The Frame
Loop SORG 2.2.2 Widening the frame To widen the frame: • (1+2) remove both wheels, • remove the screwing (A) from the crossbars (B) completely on one side, • (2) remove the screwing (C) from the seat board including the shell (D) completely. -
Page 13: Assembly Group Seat
service record ASSEMBLY GROUP SEAT 2.3.1 Adjusting the tilting direction (1) The tilting direction is determined by the position of the gas spring at the bottom of the carrier (A) and on top on the holders under the seat board (B) as well as by the horizontal (C) and vertical (D) position of the seat. -
Page 14: Displacing The Seat Plate Horizontally
Loop SORG 2.3.2 Displacing the seat plate horizontally In order to displace the seat plate by 2 cm with the same tilting direction (only possible with frame sizes 2 and 3): • (1) remove the screws (A) from the seat plate (B) on both sides including the inner shells (see chap- ter 2.2.2, picture 2E) completely. -
Page 15: Position Wedge Adapter
service record 2.3.4 Position wedge adapter You can adjust the seat position as described in the chapter before, horizontally and vertically through the seat plate. In addition, you can change the position of the wedge adapter. In order to change the position of the wedge adapter: •... -
Page 16: Double Gas Spring
Loop SORG 2.3.7 Double gas spring An oversight of the individual steps to apply a second gas spring in short form: The components involved: 1. Remove control lever of the gas spring and wedge adapter, (1) (A) seat plate 2. move the already available gas spring, (B) top adapter for gas spring 3. - Page 17 service record Step 1: control lever • (1) Remove both screws (A) from the control lever and the spiral cable shell from the Bowden cables • remove the control lever of the seat wedge (see chapter 2.3.5) under the seat plate. Step 2: moving the gas spring •...
- Page 18 Loop SORG Step 6: mounting the top adapter (1) Both alternative mounting possibilities of the • gas spring are shown in picture 1. • Attach the second top adapter (A) of the gas spring by screwing it on with the three screws (B) under- neath the seat plate in the prepared holes.
- Page 19 service record Step 12: mounting the Bowden cables • (1) Mount the ends (A) of both inner cables on the release mechanism of the gas spring. • Guide the inner cables (B) first through the ad- justing screw (C), then through the hole (D) of the clamp (E).
-
Page 20: Assembly Group Back
Loop SORG ASSEMBLY GROUP BACK 2.4.1 Setting back depth To fixate the back depth see chapter 2.3.6 Position push bar. ATTENTION TILT STABILITY (see there) ( B ) 2.4.2 Setting height of the push bar The basic setting of the height adjustable push bar can be changed as follows: •... -
Page 21: Conversion From Back Angle Setting To Back Angle Adjustment
service record 2.4.4 Conversion from back angle setting to back angle adjustment If you want to convert the seat shell from an angle setting (1) to and angle adjustment (2), then proceed as follows: • (1) Remove the screws (A), •... -
Page 22: Assembly Group Leg Support
Loop SORG ASSEMBLY GROUP LEG SUPPORT ATTENTION LEG SUPPORTS WITH A DIVIDED FOOTREST ARE NOT SUITABLE FOR USERS WITH TONE DYSREGULATION 2.5.1 Positioning the leg supports All leg supports are mounted under the seat plate, which is shown transparent here. You have two scenarios available with which you can adjust the distance of the adapter to the seat shell. -
Page 23: Leg Supports: Standard Or Angle Adjustable
service record 2.5.2 Leg supports: standard or angle adjus- table Setting distance between footrest and seat board The distance between top edge of the seat board and the top edge of the footrest can be adjusted in the same way by standard leg supports (1) continuous or divided and angle adjustable leg supports (2) continuous or divided: •... -
Page 24: Leg Supports Which Swing To The Side
Loop SORG 2.5.3 Leg supports which swing to the side Setting distance between footrest and seat plate • (1) Remove both screws (A), • move the footrest/s and the alternative holes (B), • replace both screws (A) and tighten them. -
Page 25: Leg Support Can Be Elevated With A Physiological Turning Point
service record 2.5.4 Leg support can be elevated with a physiological turning point Setting distance between footrest and seat plate • (1) Loosen both star knob screws (A), • move the footrest/s in the new position • and retighten the star knob screws. INFORMATION The star knob screws allow a flexible setting (length com- pensation) for the lower leg length also when flipping the... -
Page 26: Multidirectional Leg Support
Loop SORG 2.5.5 Multidirectional leg support The multidirectional leg support has eight different setting possibilities which are stated by roman numerals (I-VIII). Each side, right and left, can be individually set. Setting I (abduction width) • (2) Loosen both nuts (A) on both sides under the seat plate, •... -
Page 27: Assembly Group Brakes
service record ASSEMBLY GROUP BRAKES 2.6.1 Drum brake The brake force of the drum brakes is set ideally by our tech- nicians. ATTENTION For safety reasons it is recommended to check the func- tionality regularly since a readjustment of the brake force or even a replacement of the Bowden cables becomes necessary from permanent use. -
Page 28: Knee Lever Brake
Loop SORG 2.6.2 Knee lever brake With a closed knee lever brake, the wheelchair with passen- ger should not be able to move on a slope of 7% (=6°). All variations of the knee lever brake are set in the same way. -
Page 29: Assembly Group Frame Equipment
service record ASSEMBLY GROUP-FRAME EQUIPMENT 2.7.1 Anti-tipper Height of anti-tipper: • (1) Remove the screws (A). • Pull the anti-tipper bar (B) down • and displace the screw (A) in the alternative holes (C), • retighten the screws (A) • and release the anti-tipper bar (B). -
Page 30: Service And Inspection
Loop SORG SERVICE AND INSPECTION TECHNICAL DATA CHECK LIST Misprints and technical changes reserved. � INDICATION Indication Measurement Comment For safety reasons a yearly inspection is designated under Size 1 Usable width = FW 30-42 cm in 4 suitable at a SD normal operating conditions. -
Page 31: Type Label
CE-sign back height frame width max. load capacity DECLARATION OF CONFORMITY SORG Rollstuhltechnik GmbH & Co.KG Benzstraße 3-5 D-68794 Oberhausen-Rheinhausen Tel.: +49 7254 9279.0 Fax: +49 7254 9279.10 e-mail: info@sorgrollstuhltechnik.de Web: www.sorgrollstuhltechnik.de declares with this in sole responsibility, that the following aid... -
Page 32: Your Specialized Retailer
Loop SORG YOUR SPECIALIZED RETAILER company stamp SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5 D-68794 Oberhausen-Rheinhn. Germany Fon +49 7254 9279-0 Fax +49 7254 9279-10 info@sorgrollstuhltechnik.de www.sorgrollstuhltechnik.de Technical changes and misprints reserved.
