3.5 Assembly Group Leg Supports

3.5.5 Multidirectional leg support

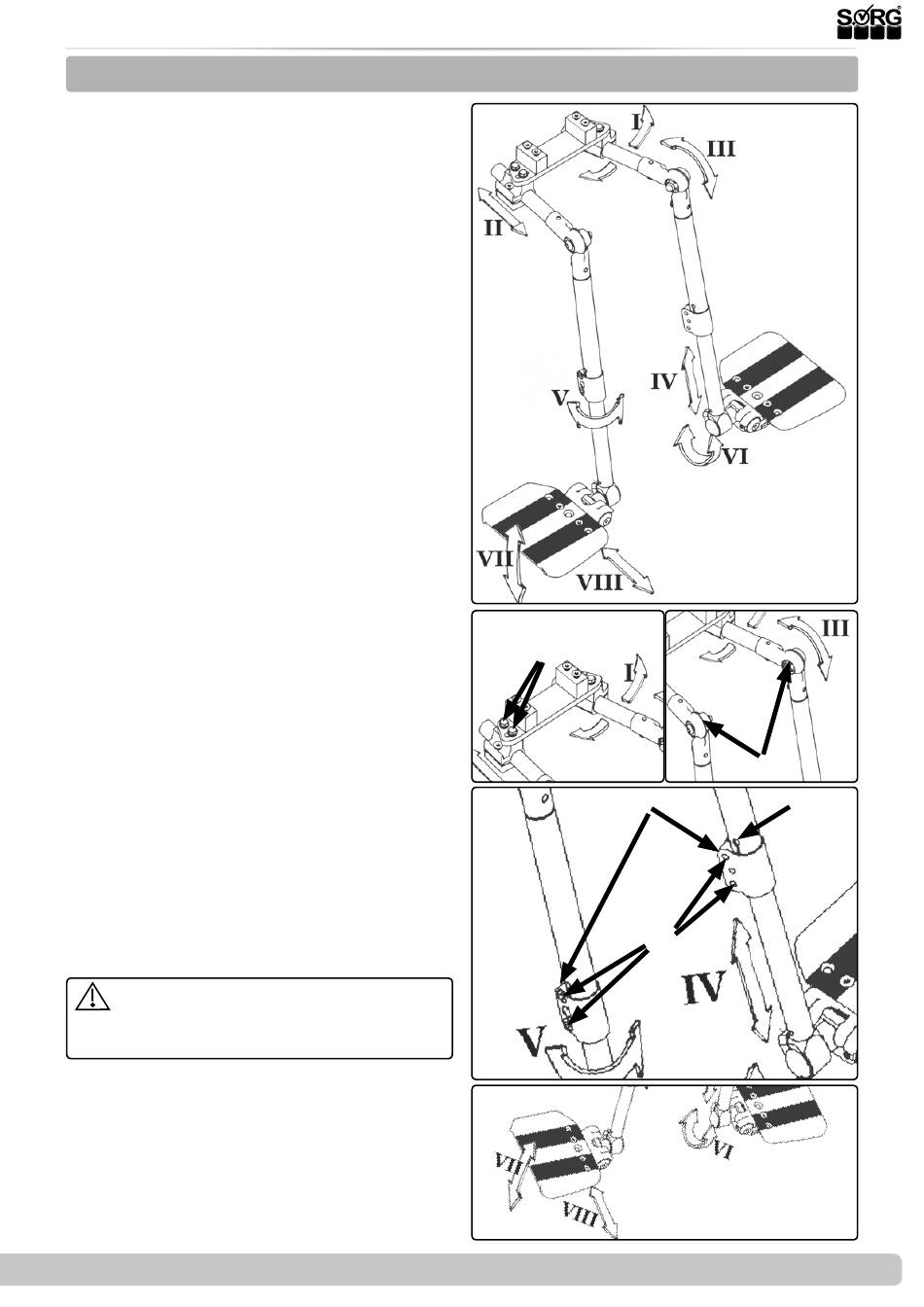

The multidirectional leg support has eight dif-
ferent setting possibilities which are stated by
roman numerals (I-VIII). Each side, right and
left, can be individually set.
Setting I (abduction width)
• (2) Loosen both nuts (A) on both sides
under the seat plate,
• turn the leg support/s inward/outward in
the position wanted and
• retighten the screws (A).
Setting II (distance to seat plate)
• Proceed as described in chapter before.
Setting III (leg support angle)
• (3) By loosening the eccentric clamp/s
on the raster element (A) the angle can
be set.
Setting IV (distance seat and foot plate)
• (4) At the end of the top leg support pipe
is a milled slot (A). Here, the bottom leg
support pipe is fixated or loosened by
the clamp (B).
• Loosen both screws (C) on each clamp
(B),
• put the foot board in the needed dis-
tance to the seat plate and
• retighten the screws (C).
Setting V (turning the foot plate)
• (4) Loosen both screws (C) on each
clamp (B),
• turn the foot plate in the needed posi-
tion and
• retighten the screws (C).
Setting VI-VIII (turning the foot board)
• (5) Proceed as described in chapter be-
fore
Setting thigh cushion
• Please proceed as described in chapter
before
After every adjustment/setting on the
lower leg length, the clamp (4B) must be
tightened firmly.
2019-08-15
(1)
(2)
(A)
(4)
(5)
Service Record Loop
SORG
(3)
(A)
(B) (A)
(C)
33 of 44
