3.1 Assembly group wheels

3.1.1 Centre of gravity/ wheelbase

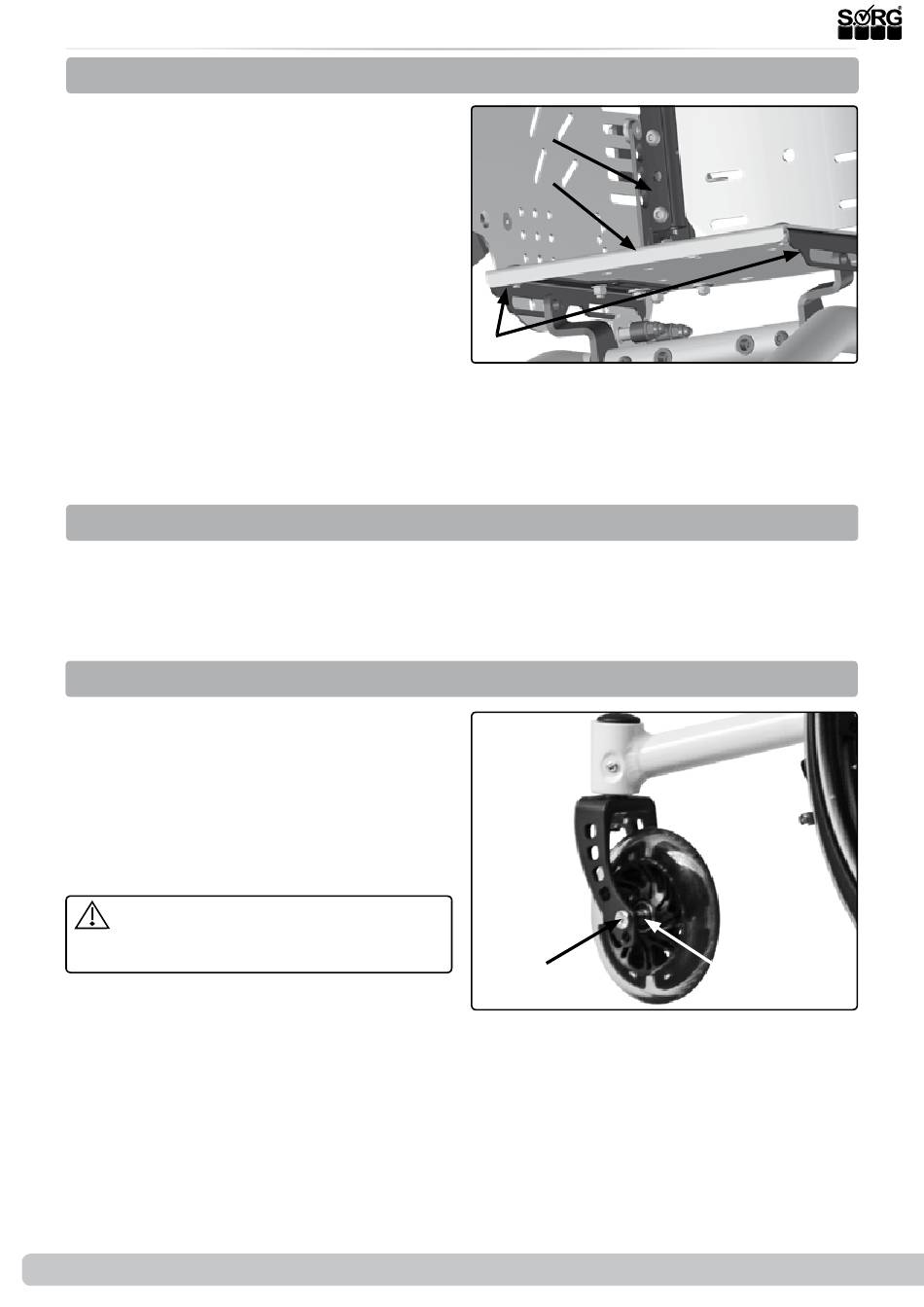

(1) The centre of gravity is set with the seat
support bracket (A) by displacing the seat pla-
te (B) forward/backward and by displacing the
back intake (C).
The centre of gravity is the crucial factor for
an optimal gripping point. The acceptance of
the aid and, therefore, the success of the rehab
programm depend on this (especially for the
younger users). Please use the utmost care
when fitting the wheelchair to this point.
The rear wheel is always factory-installed in
the front hole of the rear wheel mount. Only
with an angle adjustable back the rear wheel is
mounted in the rear hole.

3.1.2 Camber

The camber and toe adjustment settings can be found in the separate service booklet "Camber
and toe compensation". This can be found at http://www.sorgrollstuhltechnik.de

3.1.3 Casters

(2) To displace/replace the casters:
• remove the screws (A) completely,
• remove the husks,
• change the casters,
• if necessary, guide the husks and wheels
in the new holes (B),
• replace the safety nuts with new ones
and retighten all the screws.
When changing the casters, make sure
that the Casters is mounted in the previous
hole (4 "lower hole, 5" upper hole).
8 of 32
(1)
(C)
(B)
(A)
(2)
(A)
Service Record Mio (Design 2018)
(B)
2019-07-16
