Additional Crossbar - SORG Loop Service Record

3.2 Assembly Group Frame

3.2.3 Additional crossbar

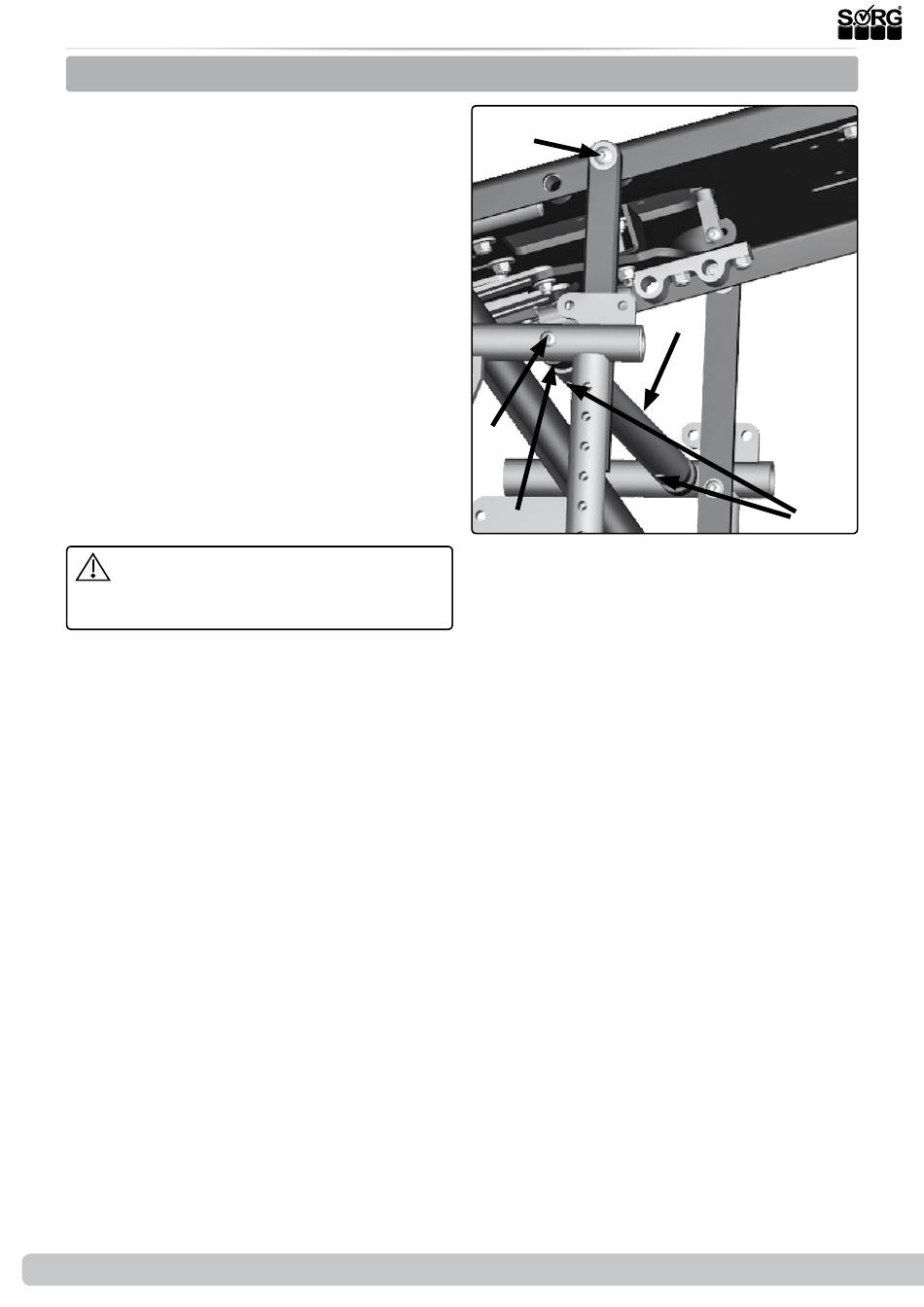

To fixate the additional crossbar under the seat:
• (1) remove both wheels,
• then remove the screw connections,
completely on one side, of the bottom
crossbar as described above,
• on the same side, remove the screw con-
nections (A) for the seat board,
• place the crossbar adapter (B) for the
top crossbar (C) in and screw it onto the
frame pipe with the screw (D).
• Place the top crossbar (C) in the wanted
hole of the crossbar adapter (B),
• with the screws (E), screw them together
in the same hole as the bottom crossbar,
• place or displace the shells from the seat
screwing (A) as described above,
• put the screws (A) back into the seat
board and tighten them firmly.
• Precede the same way on the opposite
side.
The crossbars must be displaced in the
same distance on both sides. An asymmetri-
cal assembly is dangerous and not allowed.
