3.2 Assembly Group Frame

3.2.1 Frame arch for closed frames

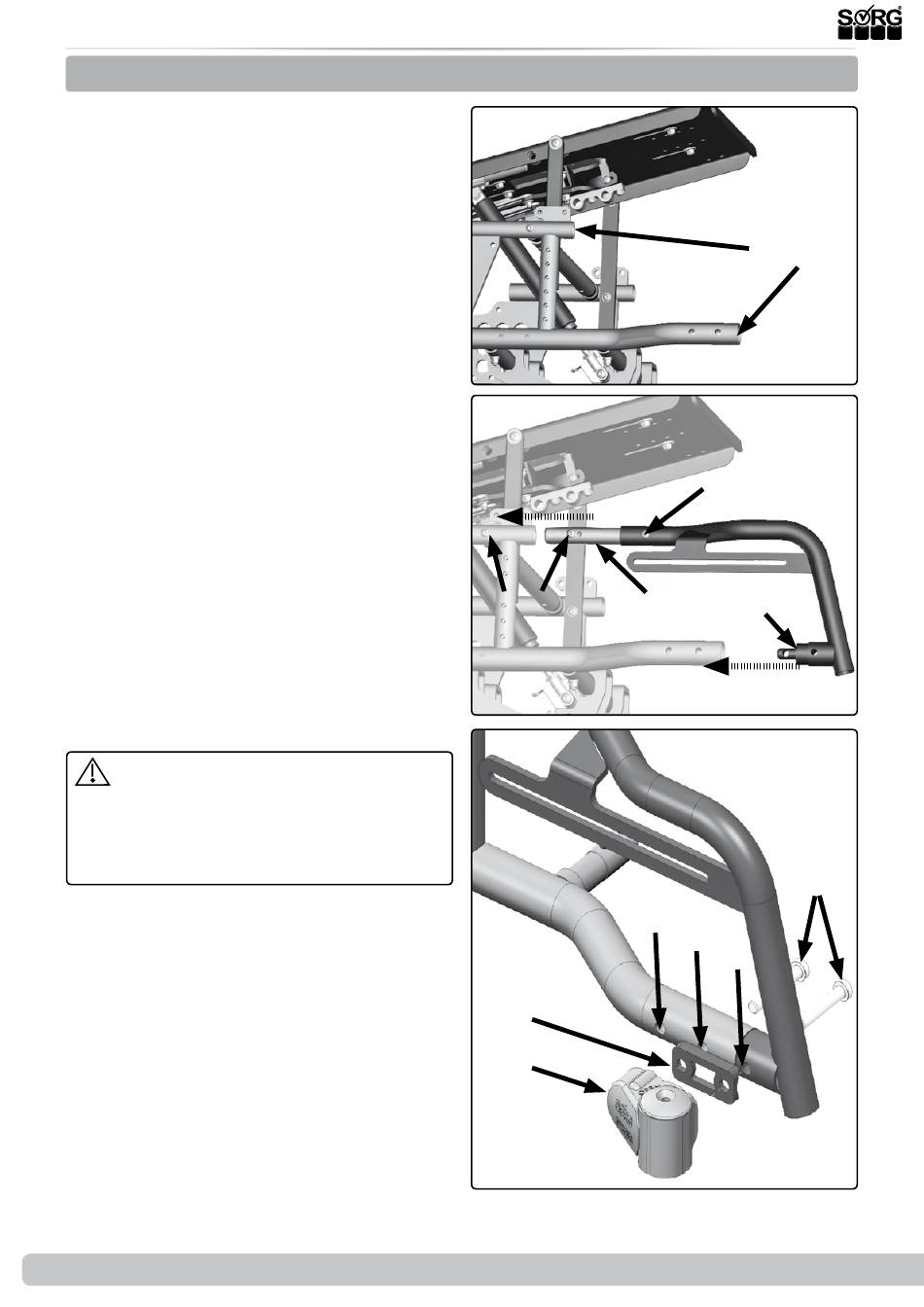

For retrofitting the frame bow for a frame
closed at the front, proceed as follows on both
sides of the frame:
• (1) Remove on both sides the steering
wheel adapter (3A) incl. Half-shells
(3B),
• if necessary, remove the knee lever
brakes
• and remove the caps at the end of the
frame tubes (A) and (B).
• (2) Secure the supplied sleeve (C) with
the screw (D) in the hole (E) provided.
• Insert the frame into the bottom frame
tube (C) with the bottom frame tube
(F).
• Screw the frame bow at the top with the
(G) screw to the sleeve (C).
• Check the tightness of the fittings
(D+G).
• (3) Move the steering wheel adapters
(A) and half shells (B) from the old
holes (E+F) into the new holes (F+G),
• Mount the adapters (A) of the half-
shells (B) with the screws (H) in the new
position (F+G)
• and adjust as described
• Possibly. you must re-assemble and
adjust the toggle brakes
Every change made on the seat and/ or
the tilting, the tilt behavior of the Loop must
be newly tested and practiced with a pas-
senger and the help of an experienced and
strong person.
14 of 44
(1)
(2)
(E) (D)
(3)
(B)
(A)
Service Record Loop
SORG
(A) (B)
(G)
(F)
(C)
(H)
(E)
(F)
(G)
2019-08-15
