3.4 Assembly Group Back

3.4.4 Adjustment of back guide

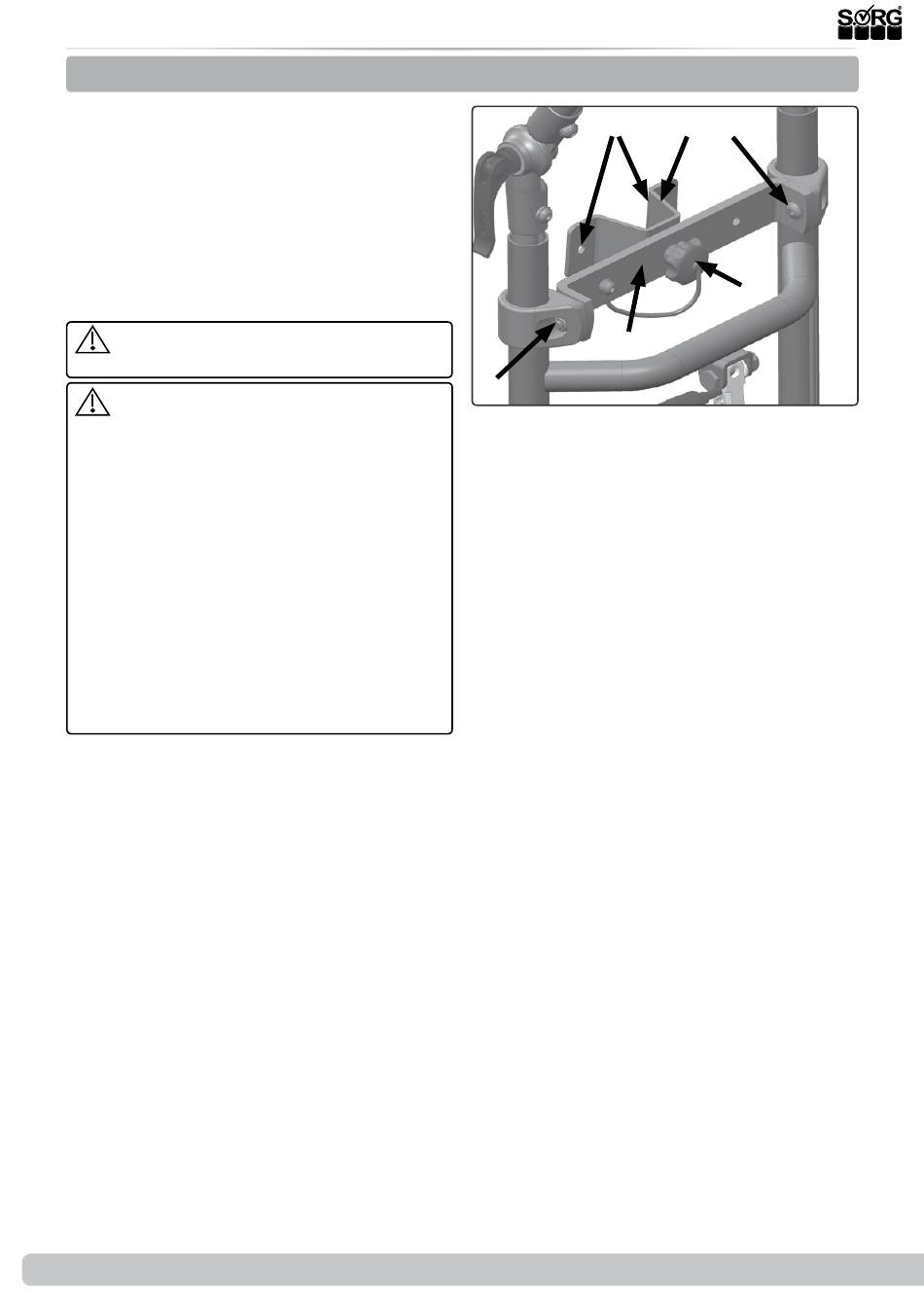

(1) To add the back guide:
• place the clamping part (A) including
the connection part (B) on the traverse
(C) of the back pipes,
• place the back pipes of the Loop as close
as needed to the back of the seat shell.
To change the distance between shell and back
you have three options:
1. Displace the back of the Loop (see chap-
ter position push bar),
2. displace the wedge adapter (see
chapter position wedge adapter),
3. displace the wedge under your seat
shell.
• After, mark the four holes (D) of the
connection part with a marker (also on
the opposite side, here not visible),
• remove the seat shell out of the wedge
adapter
• place the holes on the back of the seat
shell and in that, screw the connection
part (B).
Put the seat shell in and test if the lock el-
ement is tight in the connection part and if
necessary correct it with the four screws (E)
of both runners (F).
