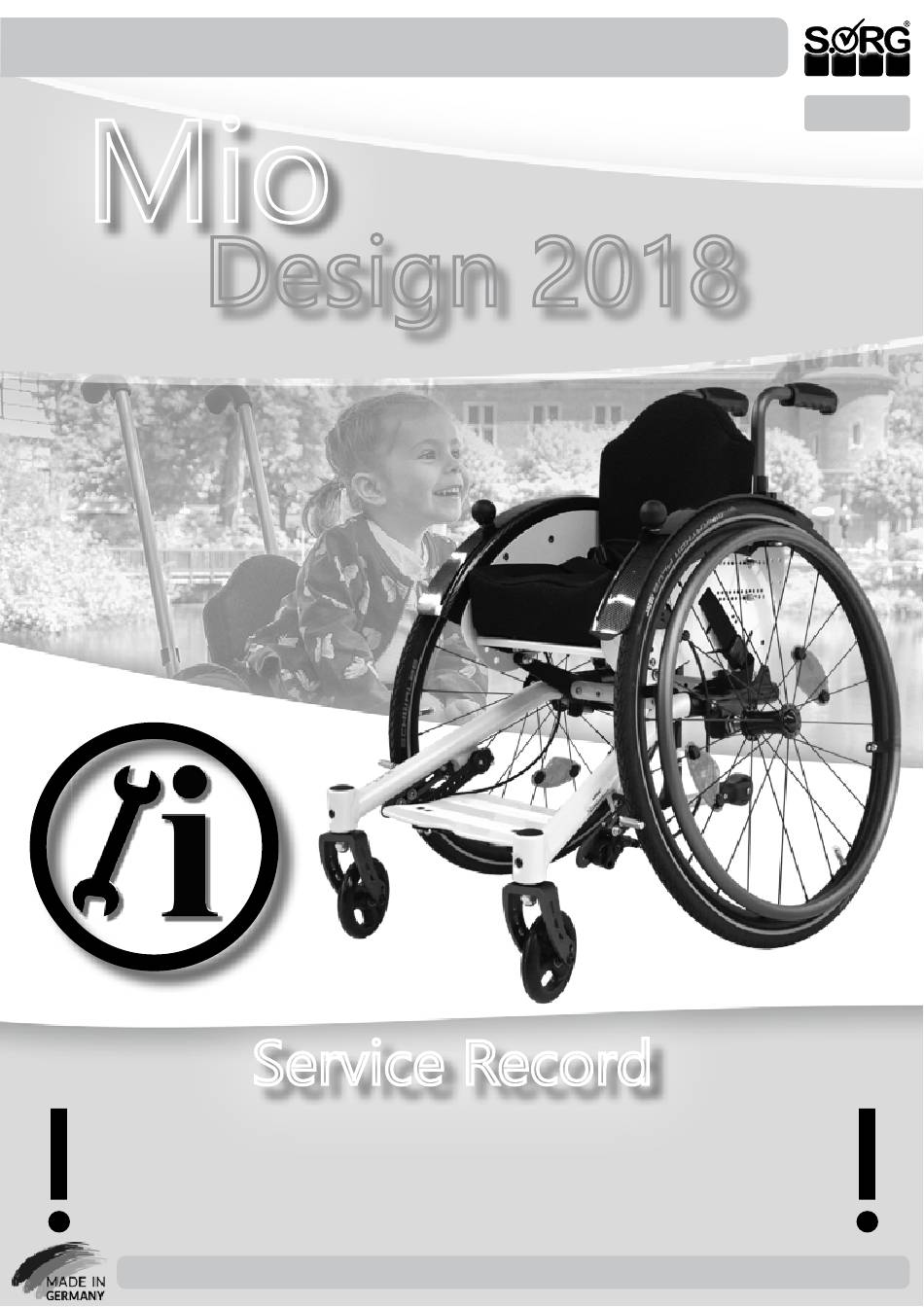

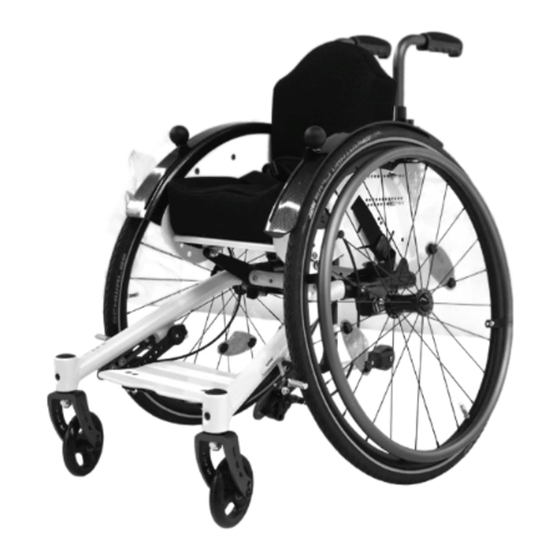

Service Record Mio (Design 2018)
Mio
ENG
Design 2018
Service Record
In the following all individual adjustments of the wheelchair are
described. These adjustments require tools and specialised
knowledge. Please leave the adjustments to a qualified rehab
consultant.
2019-07-16
Service Record Mio (Design 2018)
Unique people, unique solutions.
1 of 32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mio and is the answer not in the manual?

Questions and answers

Related Manuals for SORG Mio

Summary of Contents for SORG Mio

  • Page 1 Service Record Mio (Design 2018) Design 2018 Service Record In the following all individual adjustments of the wheelchair are described. These adjustments require tools and specialised knowledge. Please leave the adjustments to a qualified rehab consultant. 2019-07-16 Service Record Mio (Design 2018) Unique people, unique solutions.
  • Page 2 All texts, pictures and graphics underlie co- pyright protection. All rights, including co- pying, publishing, editing and translating, remain reserved. © by SORG Rollstuhltech- nik GmbH+Co. KG Benzstraße 3-5, 68794 Oberhausen-Rhein hausen / Germany. Our terms and conditions can be found on our order forms and at www.sorgrollstuhl-...

  • Page 3: Table Of Contents

    3.8 Assembly group truss pads 3.8.1 Composition 3.8.2 Vertical setting 3.8.3 Horizontal setting 3.8.4 Fine adjustment of the truss pad holder 3.8.5 Adjusting to the user 3.9 Assembly group Outdoor-Front-End 3.9.1 Horizontal setting 2019-07-16 Service Record Mio (Design 2018) 3 of 32...

  • Page 4: Wheelchair Overview

    6 frame 7 impact protection 8 caster fork 9 caster 10 foot plate 11 hand rim 12 curved back plate 13 stabiliser bar 14 rear wheel 15 hand rim 16 anti-tipper 4 of 32 Service Record Mio (Design 2018) 2019-07-16...

  • Page 5: General Information

    • Phillips screw driver • flat head screw driver • plastic mallet • side cutter • threadlocker (fluid) • bicycle inner tube repair kit • work bench/jaw vise with rubber pads 2019-07-16 Service Record Mio (Design 2018) 5 of 32...

  • Page 6: Explanation Of Sysmbols

    Turn counter-clockwise view from the back steps to be done at the same time fasten parts steps to be done after each other remove parts steps to be done on both sides 6 of 32 Service Record Mio (Design 2018) 2019-07-16...

  • Page 7: General Safety Instructions

    In combination of wheelchair and electric auxiliary drive, certain strains can occur which can lead to damage to the wheelchair. Slowly approach obstacles and carefully overcome them so that little force is applied to the caster, driving wheel and wheelchair as a whole. 2019-07-16 Service Record Mio (Design 2018) 7 of 32...

  • Page 8: Assembly Groups

    When changing the casters, make sure that the Casters is mounted in the previous hole (4 "lower hole, 5" upper hole). 8 of 32 Service Record Mio (Design 2018) 2019-07-16...

  • Page 9: Assembly Group Seat

    385 mm/ 405 mm/ 430 mm/ slight 36,0 cm 38,5 cm 40,5 cm 43,0 cm strong without 400 mm/ 420 mm/ 455 mm/ slight 40,0 cm 42,0 cm 45,5 cm strong 2019-07-16 Service Record Mio (Design 2018) 9 of 32...

  • Page 10: Widening The Seat

    To change the seat height / seat angle: • Completely remove the screws of the seat support bracket on both sides, • Bring the seat plate into the desired position, • Reinstall screw connections and tighten tightly. 10 of 32 Service Record Mio (Design 2018) 2019-07-16...

  • Page 11: Seat Depth

    3.2.3 Seat depth On the pictures you can see the delivery status of the Mio (Design 2018): • (1) seat plate is mounted at the very back of the seat support bracket (2B),...

  • Page 12: Adjusting Seat Plate

    Tighten screw connections (A) again. 3.2.6 Adjusting back • (3) Loosen screws (A) on both sides, • Bring the back to the desired position, • Tighten the screws in the desired bore again. 12 of 32 Service Record Mio (Design 2018) 2019-07-16...

  • Page 13: Centre Of Gravity

    Please proceed carefully and only with the assistance of an experienced escort step by step to the maximum and user-desired point of tilt 2019-07-16 Service Record Mio (Design 2018) 13 of 32...

  • Page 14: Assembly Group Back

    The Mio (Design 2018) offers three back systems: • Standard, • angle adjustable (with adjustable covering or SORG backrest program) or • fixed with back tubes (with adjustable covering) As a measure of thumb for the greatest possible freedom of movement of the arms when dri- ving the wheelchair applies to active riders: back height = lower edge of shoulder blades.

  • Page 15: Adjusting The Back Angle

    (A) outwards using the spacer bushings (B). • Please proceed as described. • Replace the screws (3B) with new, lon- ger ones (included) and insert spacer bushings (B). Seat plate shown transparently 2019-07-16 Service Record Mio (Design 2018) 15 of 32...

  • Page 16: Back With Back Tubes

    The broadening is done by moving the side parts outwards and mounting the spine in the new holes. • Proceed as described above. Try new setting only with the help of a helper! 16 of 32 Service Record Mio (Design 2018) 2019-07-16...
  • Page 17 2019-07-16 Service Record Mio (Design 2018) 17 of 32...

  • Page 18: Assembly Group Leg Support

    - without thumb). The thighs must rest evenly on the seat cushion. 3.4.1 Standard leg support The standard legrest can be rotated 360 ° on the Mio (Design 2018) in the bracket mount (1G) like a Ferris wheel. This "turning" changes the distance between the seat and footplate both horizontally and vertically.

  • Page 19: Removable Leg Support

    (= rising foot plate) on the holder unit (C). • Loosen all four screws (D), • put the foot plate in the position wanted • and retighten the screws. 90° 2019-07-16 Service Record Mio (Design 2018) 19 of 32...

  • Page 20: Assembly Group Side Guards

    3.5 Assembly group side guards 3.5.1 Side guards The side guards on the Mio cannot be changed. Adjusting the skirt guard (1) The skirt guard (A) can be adjusted in height: • Loosen the screws (B) on both sides, •...

  • Page 21: Assembly Group Brakes

    The maximum distance between the brake pressing bolt and the tires, with opened brake, is as follows: Standard KLB 21mm Pull to lock brake 11mm KLB with rollback blocking about 10mm cable brake (technical changes reserved). 2019-07-16 Service Record Mio (Design 2018) 21 of 32...

  • Page 22: Adjusting User Handel

    (A). Afterwards, check the functionality of the brake. The wheelchair with passenger (max. load capacity) must stand securely, with drawn brake, on a ramp with a 12,3% (= 7°) descent. 22 of 32 Service Record Mio (Design 2018) 2019-07-16...

  • Page 23: Assembly Group Anti-Tipper

    • place the anti-tipper wheel and the hold- er back on the anti-tipper bail (C), • place the screws (B) in the hole (D) and tighten them. 2019-07-16 Service Record Mio (Design 2018) 23 of 32...

  • Page 24: Assembly Group Truss Pads

    (3) Additionally, with truss pad size II the height can be adjusted be displacing the cushions. Re- move the screws (A), place the cushion on the holes (B), replace and retighten the screws (A). 24 of 32 Service Record Mio (Design 2018) 2019-07-16...

  • Page 25: Horizontal Setting

    (5) If all positioning and extension works are finished close the truss pads, adjust the joints in the necessary position and tighten all joint screws (3A). The ball joint is then fixated by tighten the four screws (B). 2019-07-16 Service Record Mio (Design 2018) 25 of 32...

  • Page 26: Assembly Group Outdoor-Front-End

    Release parking brakes To dismantle outdoor front end please pro- ceed in reverse / analogue order. The outdoor front end may only be mounted if there is no user in the wheelchair. 26 of 32 Service Record Mio (Design 2018) 2019-07-16...

  • Page 27: Repairs And Maintenance

    • If necessary, pack removable textile parts in foil or similar • Secure the wheelchair from rolling away and getting dirty • Store in a dry environment without aggressive environmental influences. 2019-07-16 Service Record Mio (Design 2018) 27 of 32...

  • Page 28: Reinstatement

    (if available) Clean the wheelchair and oil all moving parts. If you notice any defects during maintenance, please contact your specialist retailer im- mediately and do not use the wheelchair anymore. 28 of 32 Service Record Mio (Design 2018) 2019-07-16...
  • Page 29 Locking mechanisms (tripod springs of push handles, quick-release axles, eccentric clamps, etc.) checked for functionality, anti-tipper checked for firm fit and fuctionality. Oiling: moving parts and bearings oiled Final check: functional check of all mechanical adjusting devices carried out. 2019-07-16 Service Record Mio (Design 2018) 29 of 32...

  • Page 30: Technical Data

    3 years at not excessive demand wheelchair life cycle of the wheelchair 5 years Normative requirements The wheelchair meets the requirements of ISO 7176-8 and the requirements against ignition. 30 of 32 Service Record Mio (Design 2018) 2019-07-16...

  • Page 31: Meaning Of Labels

    5.2 Meaning of labels The meaning of the individual labes is explained in the texts at the respective place. If the type plate is damaged or gets lost, a new one can be ordered from SORG Rollstuhltechnik. Type plate: manufacturer address...
  • Page 32 Service Record Mio (Design 2018) SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5 68794 Oberhausen-Rheinhausen Germany Fon +49 7254 9279-0 Fax +49 7254 9279-10 info@sorgrollstuhltechnik.de www.sorgrollstuhltechnik.de company stamp...
