3.5 Assembly Group Leg Supports

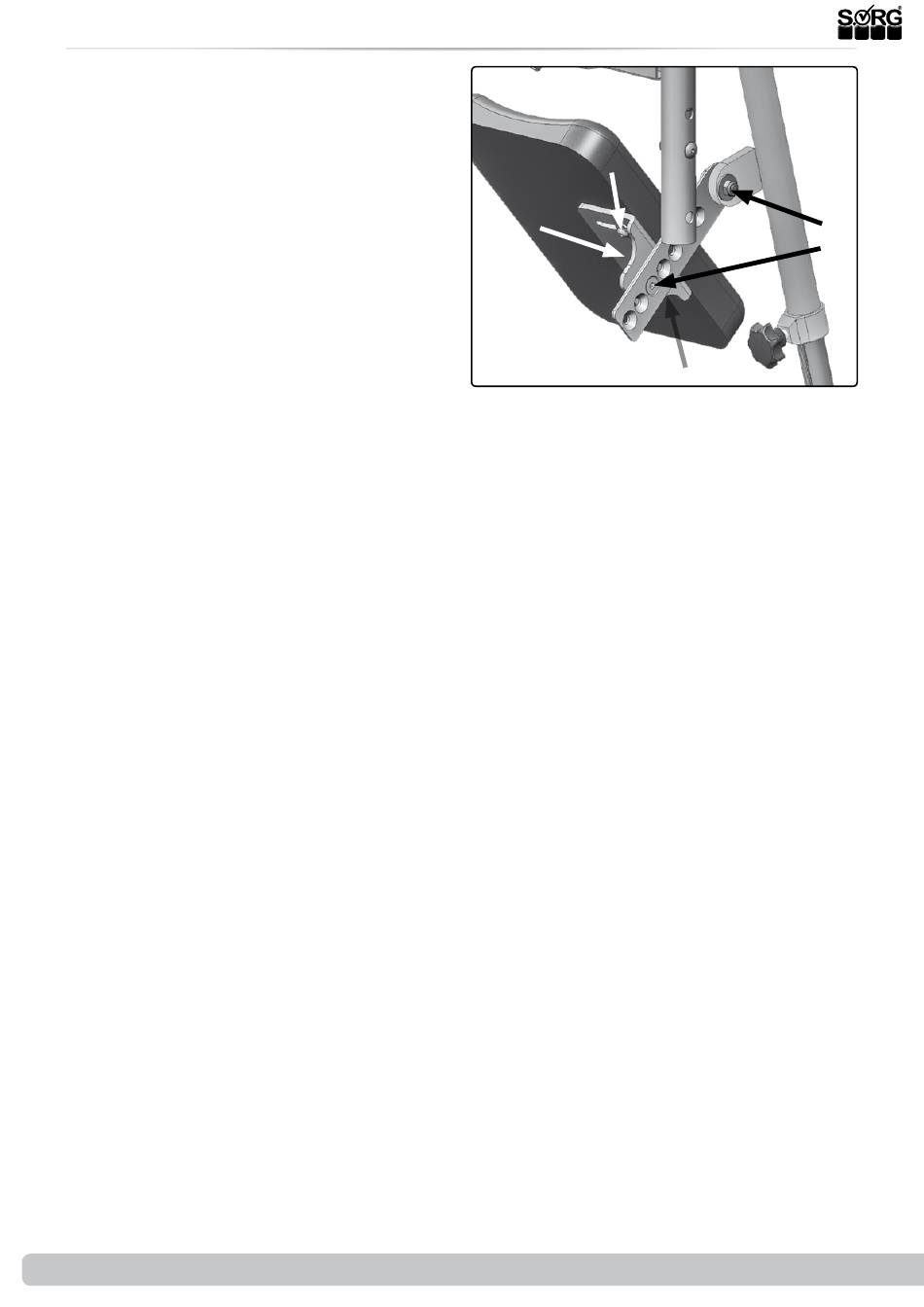

Setting thigh cushion
(3) To adjust the angle setting of the
thigh cushion loosen the screw (A) and/
or this screw (B),
place the thigh cushion in the desired
position
and retighten the screw (A) and/or (B).
To adjust the holder (C) of the thigh
cushion, remove the screw (B),
place the holder (C) in the wanted hole,
set the screw (B) back in
and tighten it.
To adjust the thigh cushion in the holder
(C) loosen both screws (D) (the second
is not visible here),
move the thigh cushion in the desired
position
and retighten the screw (D).
32 of 44
(1)
(C)
Service Record Loop
SORG
(D)
(D)
(A)
(B)
