3.1 Assembly Group Wheels

3.1.7 Casters

If you would like to add a frame arch so that the
frame is closed in the front and more resilient:

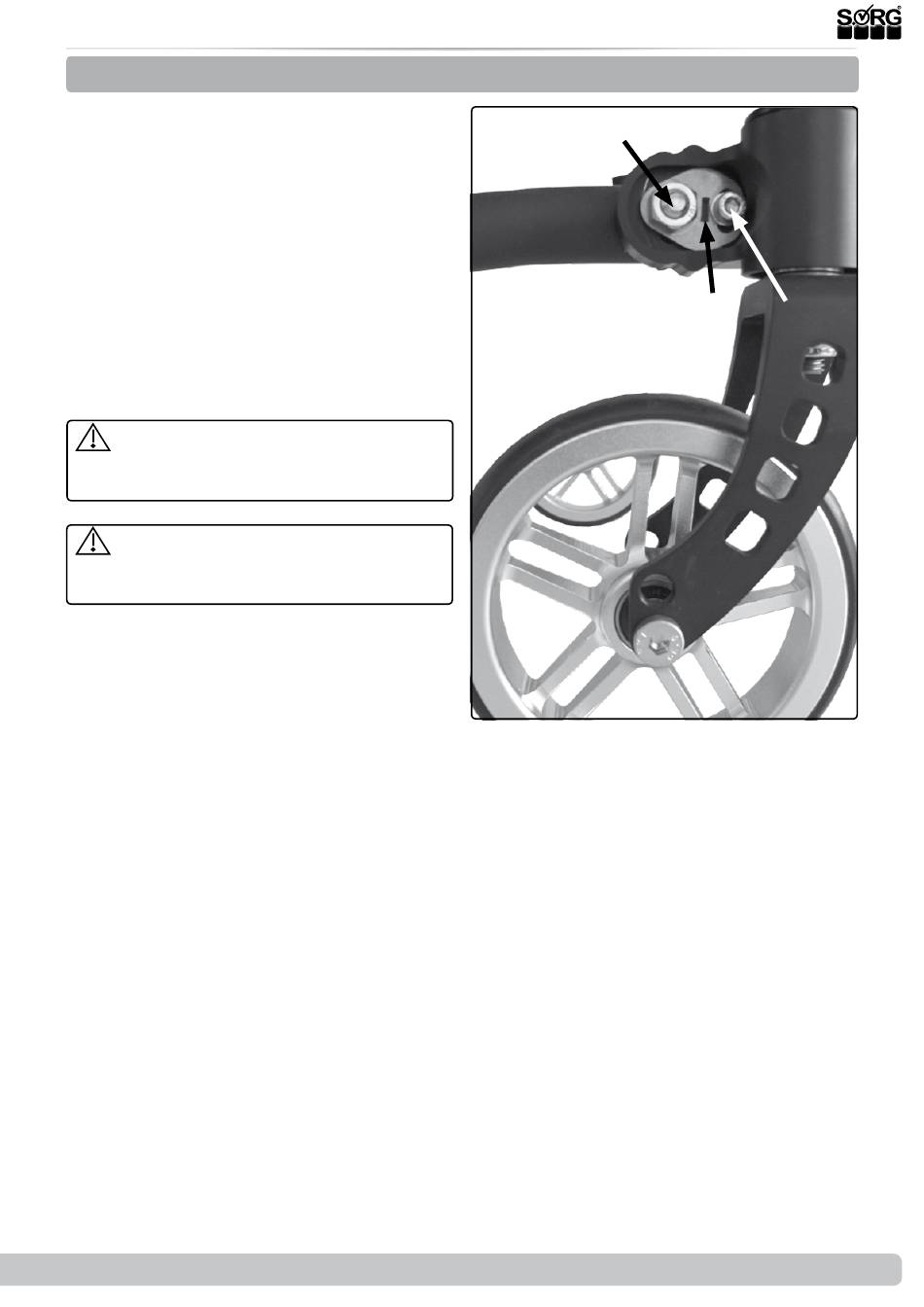

• (2) Remove the caster adapters from
both sides (A) including the half shells
(B),
• put the frame arch (C) on and attach it
from the top with the screws (D),
• move the caster adapters (A) out of
the old holes (E+F) into the new holes
(F+G),
• mount the adapters (A) including half
shells (B) with the screws (H) in the new
position and adjust as described above
the casters in an absolute vertical posi-
tion.
Correct the position of the knee lever
brake and be sure that if functions properly
(see knee lever brake)
After every change made on the casters
the steering head tendency must be newly
adjusted.
2019-08-15
(1)
Service Record Loop
SORG
(A)
(C)
(B)
13 of 44
