SORG Loop Service Record page 35

3.6 Assembly Group Brakes

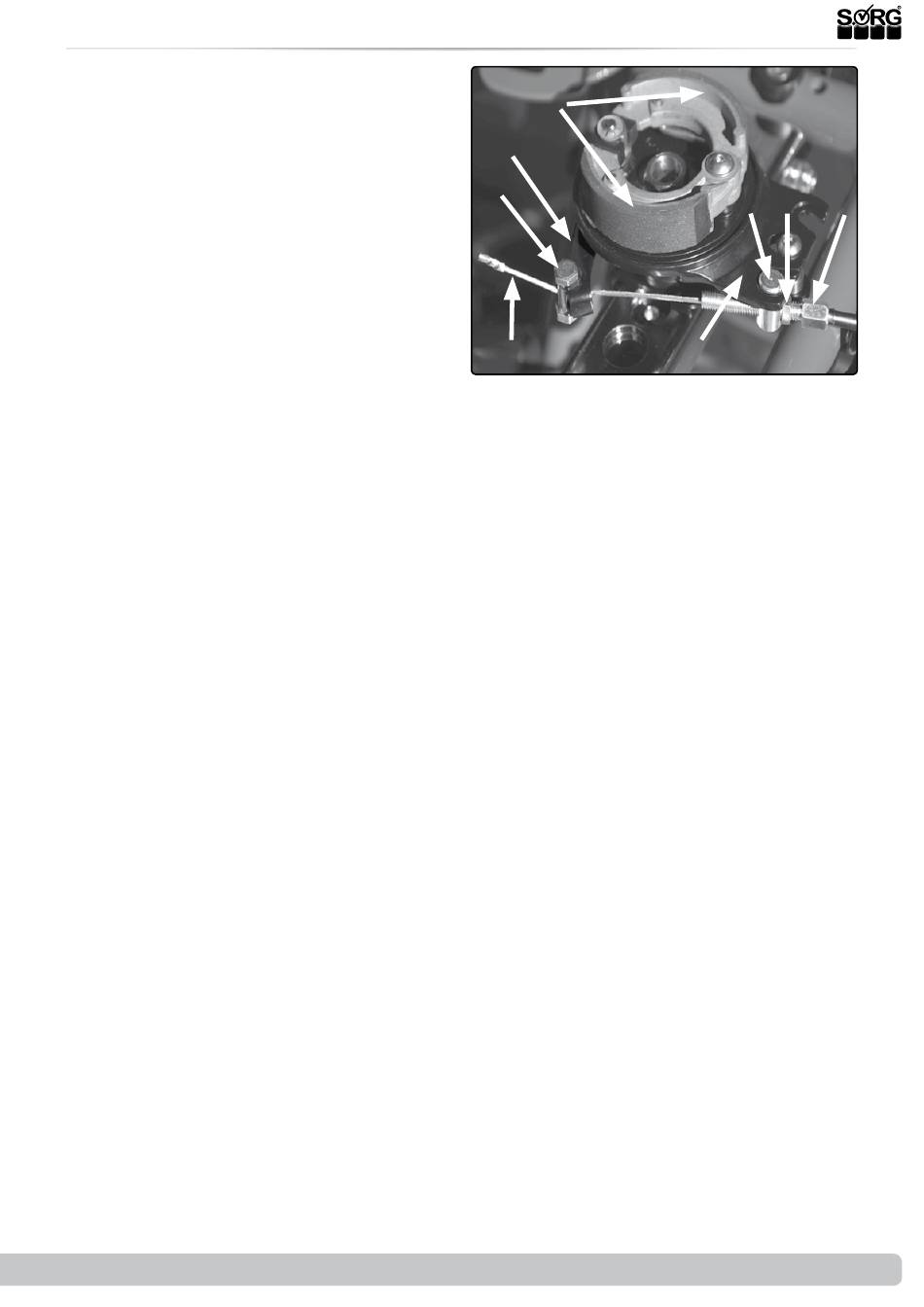

(1) To set the brake force:
• loosen the lock nut (B) on the drum
brake pad,
• tighten or loosen the inner cable (E) of
the Bowden cable and turn the setscrew
(A),
• test the traction on the control lever and
• retighten the lock nut (B).
Possible impairments of the brake force can oc-
cur from:
• wrongfully adjusted traction of the
Bowden cables,
• defected Bowden cable,
• dirty brake pads/brake shoes.
2019-08-15
(1)
(H)
(F)
(G)
(E)
Service Record Loop
SORG
(B)
(C)
(A)
(D)
35 of 44
