3.3 Assembly Group Seat

3.3.5 Release lever-seat wedge

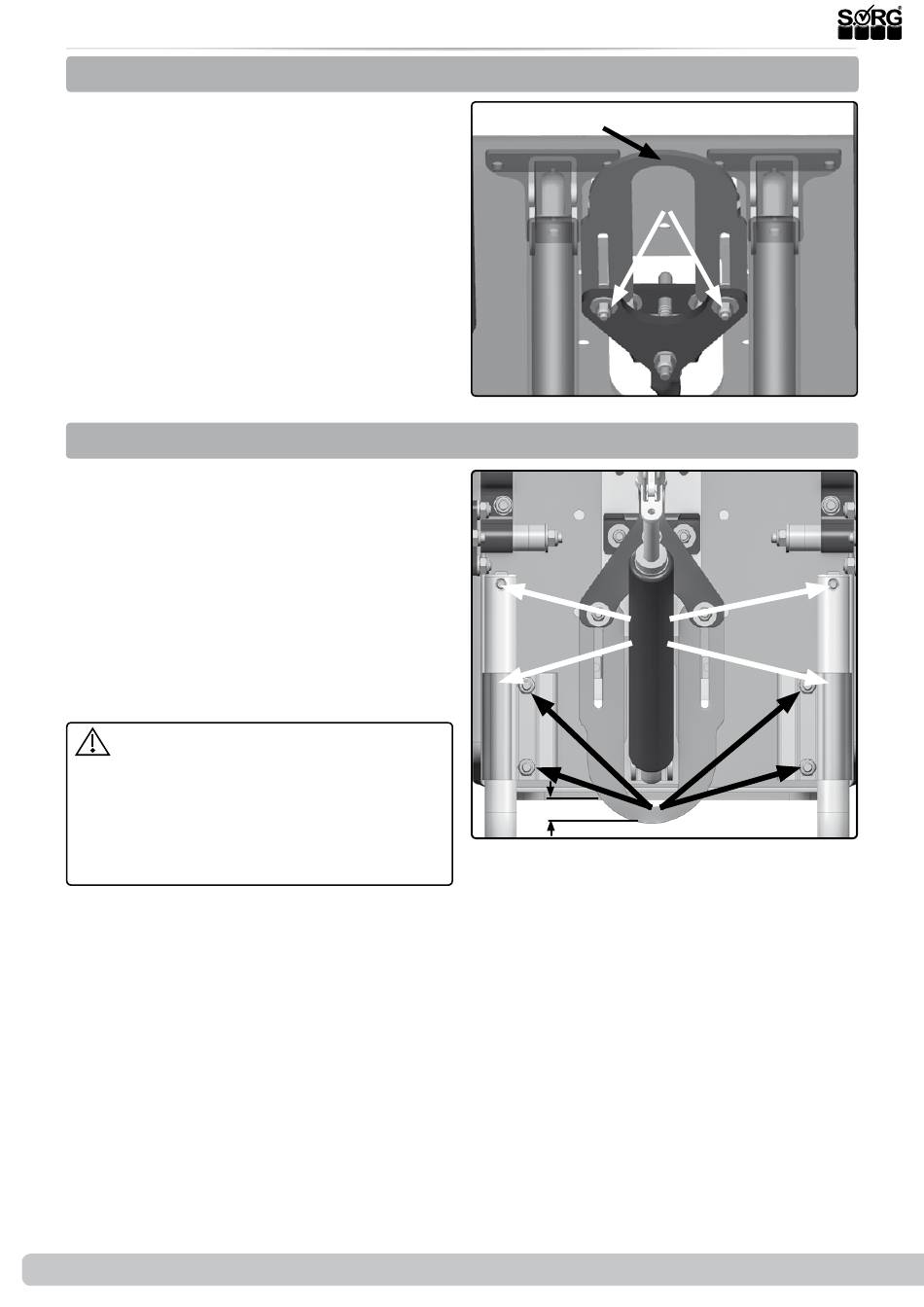

(1) The red release lever (A) of the wedge
adapter should stick out of the seat plate
about 1 cm.
To change the position:
• (2) loosen both screws (B),
• guide the release lever in the wanted po-
sition and
• retighten the screws (B).
With certain tilt adjustments "collisions" be-
tween gas spring and release lever can occur.
In this case, be sure that the gas spring has
enough room when the max. tilt angle is in use;
see chapter tilting

3.3.6 Position push bar

If, for example, you have a great structure depth
of the seat shell on the back, the structure depth
can be compensated through the position of
the push handles.
For this:
• (2) loosen the four screws (A) of the
push bar adapter (B),
• push the ends of the pipes from the
push bar in the wanted position, forward
or backward
• and retighten all four screws (A).
After, it is important that you check the
tilt behaviour of the loop with full strain
(with a passanger) and the help of an experi-
enced and strong person.
If necessary, the centre of gravity must be
changed (wheelbase extension) and the po-
siton of the anti-tipper must be renewed.
