3.1 Assembly Group Wheels

3.1.6 Wheel base extension for 20" + 22"

To prepare the extension of the wheelbase:
remove the wheels completely on both sides
incl. brake body, fitting etc.
remove the wheel guard completely,
if necessary remove the anti-tipper completely.

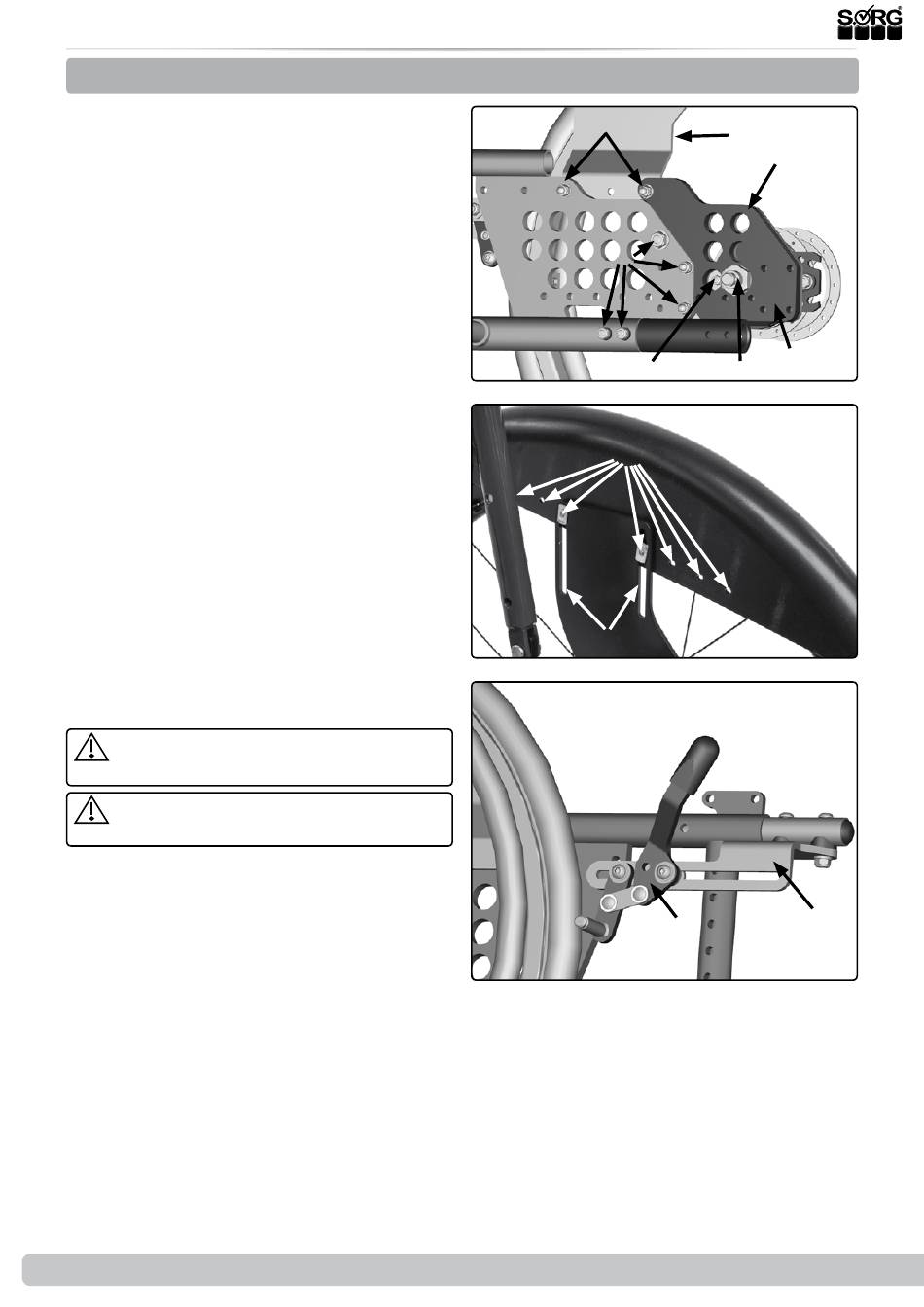

To extend the wheelbase
• (1) mount the wheelbase extension (A)
and the connecting plate (B) with the
screws (C),
• Mount the quick-release axle fitting (D)
in the corresponding hole and
• Adjust the drum brake counterholder
(E) in the corresponding hole.
To move the clothes guard:
• (1) Move the clothes guard (F) back
and secure it with the corresponding
screws (G).
To adjust the clothing protection:
• (2) Replace the wheels and adjust the
clothes guard on the existing holes (A)
and slots (B).
To move the knee lever brake:
• (3) Replace the standard brake adapter
with the brake adapter for wheelbase
extensions (A).
• Adjust the knee lever brakes (B)
Check the functionality of the drum bra-
ke and restore it if necessary.
Correct the position of the knee lever
brake and then check its functionality.
To change the camber to 0 ° please proceed as
described there.
12 of 44
(1)
(2)
(3)
Service Record Loop
SORG
(G)
(F)
(B)
(C)
(E) (D)
(A)
(B)
(B)
(A)
(A)
2019-08-15
