Summary of Contents for SORG Loop 802

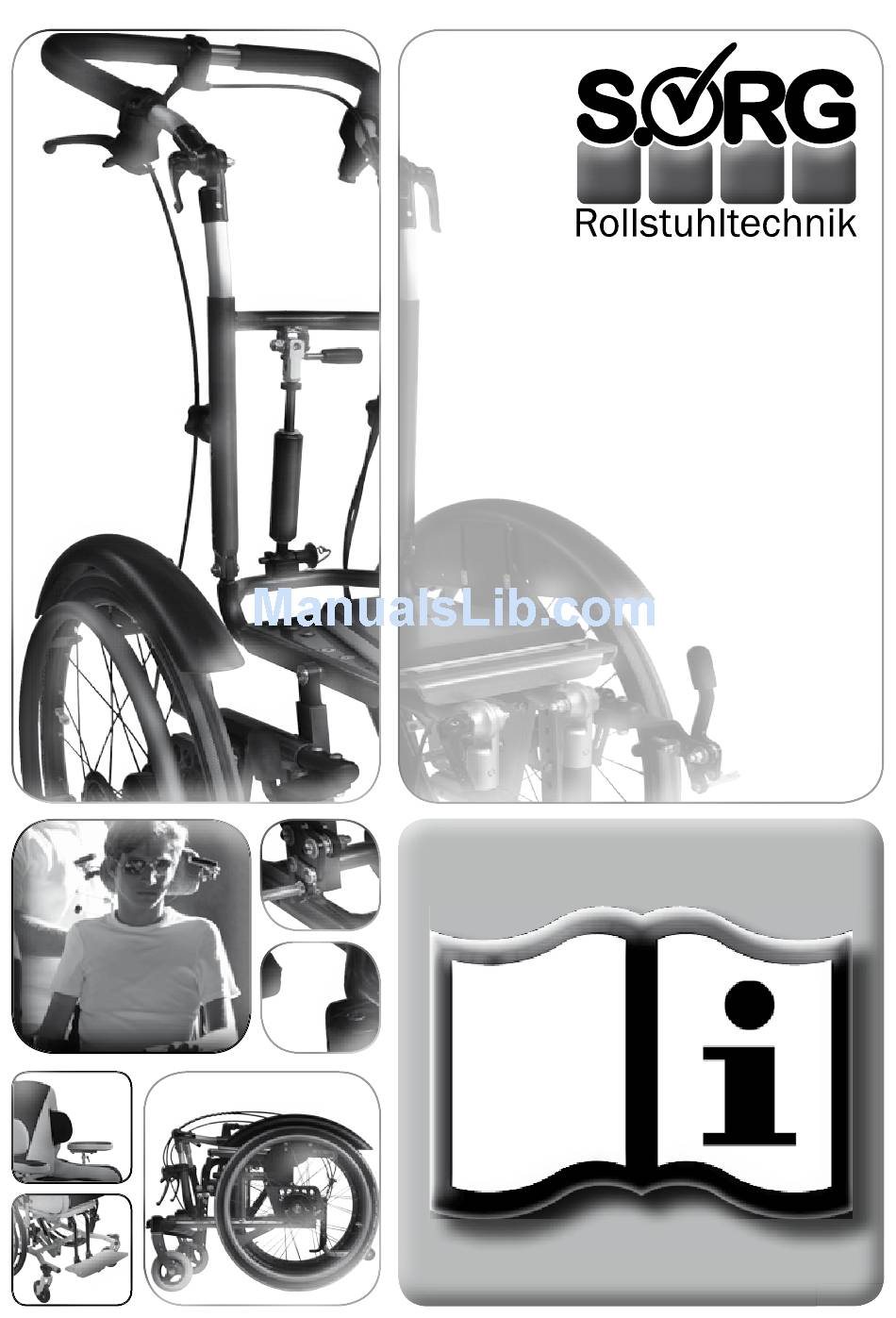

- Page 1 User Manual User Manual Loop SORG Type 802...
-
Page 2: Revision Status
COPYRIGHT © by SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5, 68794 Oberhausen-Rheinhausen. texts and pictures in this user manual underlie the international copyright protection and are not allowed to be published without our consent – not even in excerpts! -
Page 3: Table Of Contents
3.4.3 Adjusting the back angle 4.7.1 Measurements and Dimensions 3.4.4 Push handle height adjustment 4.7.2 Label Meanings 3.4.5 Adjusting the push height 4.7.3 Measurements Loop SORG 3.4.6 Push handle angle adjustment 4.8 Documentation Yearly Inspection 3.4.7 Folding the back part down... -

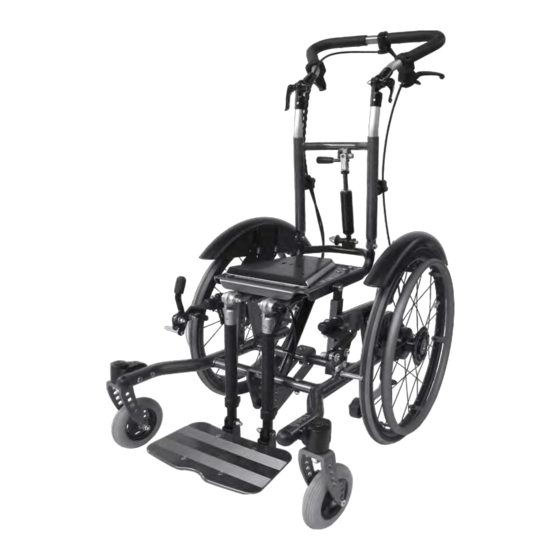

Page 4: Wheelchair Overview
Loop SORG Wheelchair Overview overview Loop SORG height adjustable push bail control lever for drum brake eccentric clamp to adjust the angle of the push bail gas spring to adjust the angle of the back star knob screw to adjust the height of the push... -
Page 5: Preamble
User Manual 1 Preamble 1.3 Indication 1.1 General information Loop is indicated • in the pediatric and geriatric area for all The wheelchair has been built, adjusted and given to therapy forms for changing position and you operable according to your individual instructions. positioning of immobile and mobile persons A qualified Technician will make any changes •... -
Page 6: Application
Loop SORG • Tilting is optionally adjusted from -5° to +35° or 1.7 Reception +2,5° to +40° (without modification tools), • a later fitting with a second gas pressure PLEASE NOTE spring is already prepared, DELIVERY • The back of the seat shell is optionally,... -
Page 7: Accessory And Attachment Drives
User Manual 2 Safety Instructions have all safety relevant inspections, maintenance work and if necessary repairs conducted in order to 2.1 General indications make the wheelchair functional. ATTENTION ATTENTION The risk of injuries occurs on all rotatable and Be careful with all moveable parts since there is a turning parts. -
Page 8: Handling
Loop SORG 2.2.3 Risk of tipping and flipping over 2.2 Handling 2.2.1 Getting in and out ATTENTION ATTENTION Danger of tipping and flipping from: (1) all kinds of height differences of the (1) Getting in and out can only occur on a flat surface and with ACTIVATED WHEEL LOCK. -
Page 9: Grabbing Objects
User Manual ATTENTION Grabbing objects requires much practice and Keep in mind the higher strain in order to drive/ experience. Slowly familiarize yourself, with the help push or brake going up or down a hill. of an experienced and strong person, with this action. ATTENTION (3) In order to grab objects from the side/in front of Before EACH use make sure to check the reliable... -
Page 10: Overcoming Obstacles
Loop SORG 2.4 Overcoming obstacles 2.5 Wheel lock A WHEELCHAIR IS NOT FOR CARRYING. For this ATTENTION reason avoid stairs! Whenever possible, ramps THE KNEE LEVER BRAKES ARE ONLY THERE TO PUT or elevators should be used to overcome height THE WHEELS IN A RESTING POSITION. -
Page 11: Anti-Tipper
User Manual 2.7 Casters ATTENTION Cable controls are high-maintenance! The clamp ATTENTION screws on the Bowden cable need to be checked on Casters which are not correctly adjusted or driving a regular basis and retuned if necessary. too fast, especially downhill, can cause the casters Check the functionality of the brakes regularly! The to dangerously flap back and forth. -
Page 12: Transport In Public Transportation
Loop SORG 2.8.1 Transport in public transportation If necessary, inform yourself by your retailer or under www. In every public transportation, a spot must be sorgrollstuhltechnik.de, if provided to place the wheelchair according to the EG- your model is approved as guideline 2001/85/EG. -
Page 13: Handling
User Manual 3. Handling 3.1 Wheels 3.1.1 Quick-release axle wheels All of our rear and 12” wheels are equipped with quick-release axles for fast removal. (1+2) To release or apply the quick-release axle, push the lock button (A) in the middle of the wheel hub. After applying, the lock ball (3) must be completely in sight at the end of the quick-release axle and the wheels should not be able to be removed. -
Page 14: Drum Brake Wheels
Loop SORG 3.1.2 Drum brake wheels (1) The drum brake wheels can also be removed with a quick-release axle. To apply or remove, proceed as described with the rear wheels. ATTENTION (2) The drum brake wheels’ brake pads are extremely sensitive and can lose their functionality from dirt or scratches on the brake pads. -
Page 15: Special Hand Rims
User Manual ATTENTION After a collision a qualified retailer must immediately check the wheelchair for possible damages and if necessary make repairs. At the first sign of the casters shaking (especially during fast drives or on slopes) slow down. Precede the same with casters with a change set as with the quick-release axles of the rear wheels. -
Page 16: Back
Loop SORG 3.4.2 Positioning the back angle 3.4 Back ATTENTION (2) for seat shells with secure back angle Your rehab technician adjusts the back angle on The tilt stability of the Loop depends on the components of the seat and back: the back angle of the seat shell in version 1. -
Page 17: Push Handle Height Adjustment
User Manual 3.4.4 Push handle height adjustment (4) In order to adjust the height • loosen the star knob screws (D), • adjust to the desired height and then turn the star knob screws (D) tightly. ATTENTION The push handles are only to be used to PUSH someone in the chair;... -
Page 18: Folding The Back Part Down
Loop SORG 3.4.7 Folding the back part down (1+2) To fold it down • place the push handle in the lowest position ( because of the Bowden cables for tilting and drum brakes), • press the red button (A) on the plug bolt (B) •... -
Page 19: Leg Support
User Manual 3.5 Leg support To compensate the length open the star knob screw/s (B), place the footrest in the wanted position and lock the star knob screw/s tightly. All leg supports are adjusted to your measurements by your rehab technician. Should there be ATTENTION modifications necessary please contact him. -
Page 20: Leg Support: Detachable And Swings To The Side, Continuous Or Divided Footrest
Loop SORG 3.5.4 Leg support: detachable and swings to 3.5.6 Locking the side, continuous or divided footrest The leg supports N° (1) to (4) can be locked in a vertical position at the backside of the footrest. (9) To loosen the lock: •... -
Page 21: Brakes
User Manual 3.6.3 Knee lever brake (wheel lock) 3.6 Brakes ATTENTION ATTENTION While braking, forces occur that you must be THE KNEE LEVER BRAKE IS NOT FOR BRAKING able to handle. Therefore, here are important WHILE DRIVING indications. Always use the drum brakes or, when physically A wheelchair is generally (when physically possible, the hand rims to brake. -
Page 22: Locking The Wheel Lock
Loop SORG 3.6.4 Locking the wheel lock 3.6.6 Anti-tipper (1) Several wheel locks can be locked in the open or (1) To activate, push the anti-tipper (A) down using closed position. the tread element (B). Then turn the anti-tipper (A) by 180°... -
Page 23: Seat Shell
User Manual 3.7 Seat shell 3.7.1 Putting on/securing (1) In order to put on the seat shell • Loop needs to be secured from rolling away, • place the seat shell with the wedge on the bottom onto the wedge holder (A), •... -
Page 24: Outdoor Front End (Push Aid For Outside)
Loop SORG 3.8 Outdoor Front End (push aid for outside) ATTENTION The push aid can only be attached if there is no user sitting in the wheelchair. ATTENTION The push aid is designed for a max. speed of 8 km/h. A higher speed is not allowed. -
Page 25: Repairs And Maintenance
User Manual 4. Repairs and Maintenance 4.3 Disposal 4.1. Repairs � INDICATION The wheelchair can only be disposed of after consultation and approval from your benefactor. ATTENTION Do not conduct any reparations and/or As a general rule, the disposal of the wheelchair maintenance work yourself. -
Page 26: Maintenance
Loop SORG Inflation 4.5 Maintenance 4.5.1 Cleaning and care Check if the tube is perfectly clamped between tire and cover. � Check the valve fitting. INDICATION Never treat the wheelchair with a high pressure cleaner! Please use silicon free, water based First inflate the tire with just enough air so you can cleaning and care supplies. -
Page 27: Disinfection
User Manual 4.5.2 Disinfection 4.6 Service/inspection 4.6.1 Check list To disinfect, water based agents should be used such as: Terralin, Quartamon, Med or Sagrotan. A yearly inspection from a qualified medical store is inevitable for the safe use of the wheelchair and for The indications on application given by the a long lifespan. -
Page 28: Check List Yearly Inspection
Loop SORG 4.6.2 Check list yearly inspection 4.6.3 Service list PREPARATORY WORK The following service list is based on our long-term If necessary, we recommend cleaning the wheelchair experience and is a mandatory guideline with which or individual parts of it prior to inspection. - Page 29 User Manual WHEN? WHAT? COMMNENTS Before each use Check wheels/quick release ATTENTION axles for firm fit. Too low air pressure and/or dirty tires as well as adverse You must not be able to pull the weather circumstances can reduce the brake efficiency wheel out of the quick release drastically and put you in danger.
-
Page 30: Technical Data
Loop SORG 4.7.3 Measurements Loop 4.7 Technical data SORG 4.7.1 Measurements and dimensions Indication Measurement Comment Dimension tolerance ± 5° Size 1 Usable width = FW 30-42 cm in 4 cm suitable at a SD of 32 frame width + 4 cm... -
Page 31: Documentation Yearly Inspection
User Manual 4.8 Documentation yearly inspection Work done according Additional work done Date, Signature, to check list medical store stamp,... - Page 32 Loop SORG Your specialized retailer company stamp SORG Rollstuhltechnik GmbH + Co. KG Benzstraße 3-5 D-68794 Oberhausen-Rheinhn. Germany Fon +49 7254 9279-0 Fax +49 7254 9279-10 info@sorgrollstuhltechnik.de www.sorgrollstuhltechnik.de Technical changes and misprints reserved.
