3.2 Assembly Group Frame
3.2.2 Widening the frame

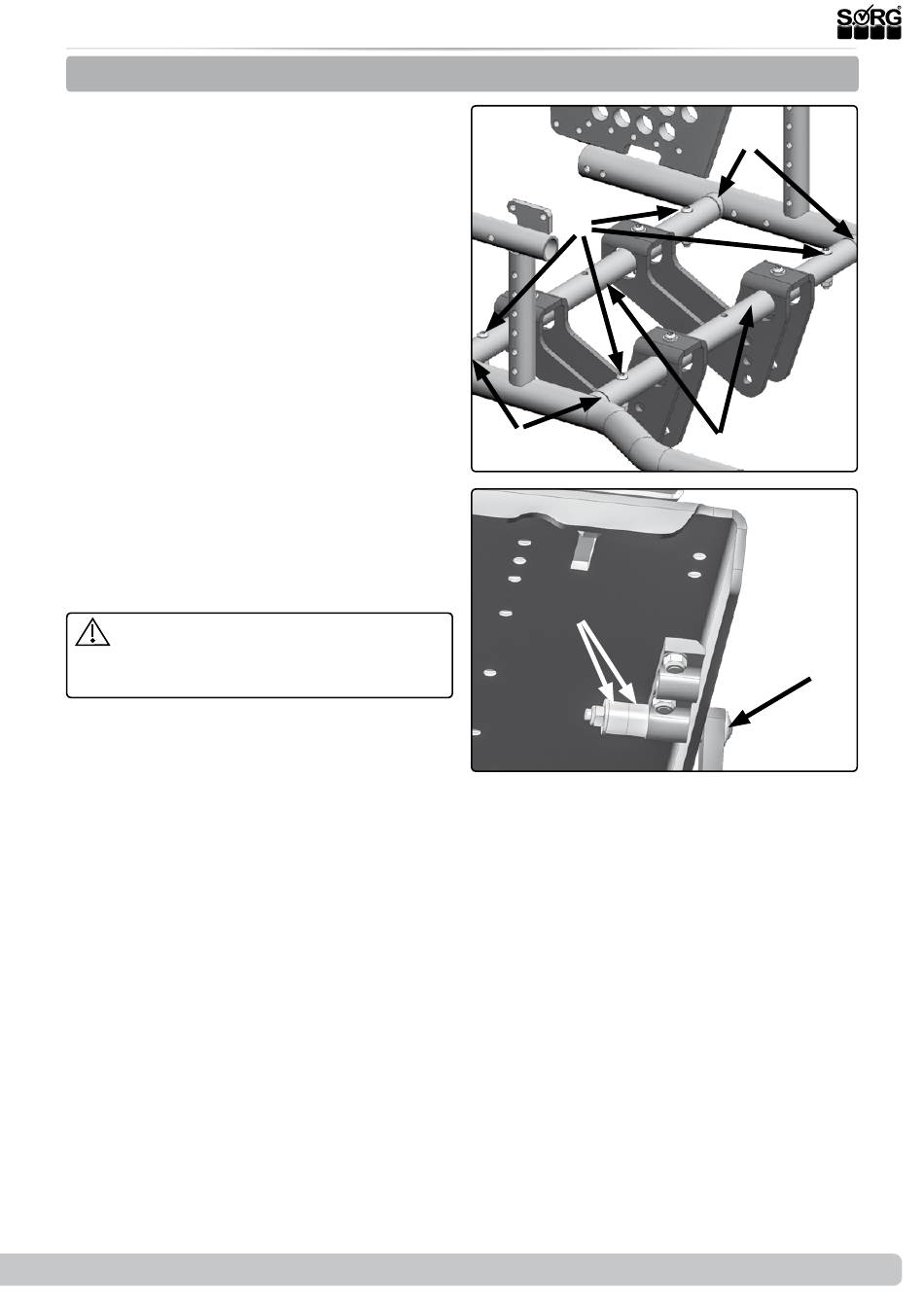

To widen the frame:
•
(1+2) remove both wheels,
•
remove the screwing (A) from the cross-
bars (B) completely on one side,
•
(2) remove the screwing (C) from the
seat board including the shell (D) com-
pletely.
•
Displace both crossbars (1B) in the nec-
essary size along the prepared holes on
the crossbar adapters 1 or 2 cm by put-
ting the screws (1A) loosely back in.
•
Place one or two shells (2E) on the outer
side (1 shell=1 cm, 2 shells=2 cm),
•
place the screwing (2C) back through
the shell.
•
Tighten all screw connections (1A and
2C).
•
Precede the same with the screw con-
nections (1A and 2C) on the other side.
Please regard the next chapter if your Loop
has an additional crossbar.
Both crossbars must be displaced in the
same distance on both sides. An asymmetri-
cal assembly is dangerous and not allowed.
2019-08-15
(1)
(C)
(2)
SORG
Service Record Loop
SORG
(C)
(A)
(B)
(E)
(D)
15 of 44
