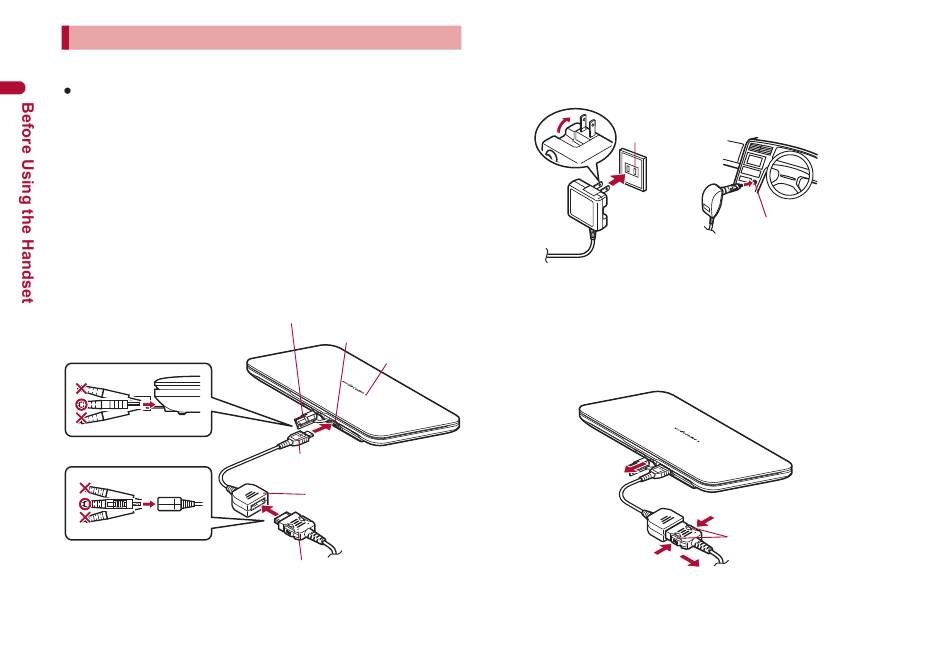

Charging by using AC adapter/DC adapter
[Read the user's guides of FOMA AC Adapter 01/02 (sold
separately) and FOMA DC Adapter 01/02 (sold separately)]
Battery pack can be charged even with the FOMA terminal opened.
1
Insert the AC or DC adapter connector horizontally
into the external connector terminal of the microUSB
adapter for charge (1)
: Check the direction (front or rear) of the connector, keep it parallel
with the microUSB adapter for charge and securely push all the way
in until it clicks.
2
Open the external connector terminal cover of the
FOMA terminal and insert the microUSB plug of the
microUSB adapter for charge horizontally into the
external connector terminal (2)
: Insert the microUSB plug horizontally with the mark side turned up.
38
External connector terminal cover
External connector terminal
Charging lamp
2
microUSB plug
(with the mark side up)
External connector terminal
(with the screw side down)
1
Connector (with the arrows side up)
3
When inserting the AC adapter power plug into an
outlet or inserting the DC adapter power plug into a
car cigarette lighter socket, charging lamp illuminates
and charging starts
100V AC
outlet
For AC adapter
4
When charging lamp turns off, charging is complete
: When charging is complete, remove the microUSB plug horizontally
from the FOMA terminal (1).
: When removing the connector from the microUSB adapter for
charge, always hold the release buttons on both sides (2) and
unplug it horizontally (3).
1
2
Cigarette
lighter socket
For DC adapter
2
Release buttons
3
