Docomo LYNX SH-10B Instruction Manual page 25

1 1Seg antenna (nP. 154)
1Seg antenna is built in. To receive in better conditions, do not cover
the antenna area with your hand.
2 Display/Touch panel (nP. 24, P. 32)
3 Speaker
Emits ring tones, music, etc.
Emits the other party's voice during a call.
4 |: Home key
Displays the stand-by display.
5 H: Power/End key
Use to turn the power on/off (nP. 39).
Use to end the displayed application or a call.
6 Keyboard
For details on operation when entering characters nP. 230
7 In-camera
Use to shoot still pictures or moving pictures of yourself.
8 Trackball (nP. 34)
9 Brightness sensor (nP. 214)
Sensor detects brightness of the surrounding area and adjusts the
brightness of backlight.
Do not cover the sensor area with your hand or a sticker. May
interfere with the sensor.
a {: Back key
Returns to the previous screen.
b z: Menu key
Displays available functions (menus) in a screen.
c +: Enter key
Execute or set a selected item.
d #$%&: Cursor keys
Move the cursor up/down/left/right.
e \: Search key
Displays the quick search box (nP. 31).
f Incoming/Charging lamp
Flashes while receiving a call, etc. (nP. 215).
Illuminates while charging (nP. 37).
g RESET button (nP. 74)
Press when an error occurs such as when data is not displayed
properly, and when operation does not work properly.
h microSD Card slot (nP. 171)
i Infrared port
Use for the infrared communication or IrSS™ communication
(nP. 177).
j Mouthpiece/Microphone
Sends out your own voice.

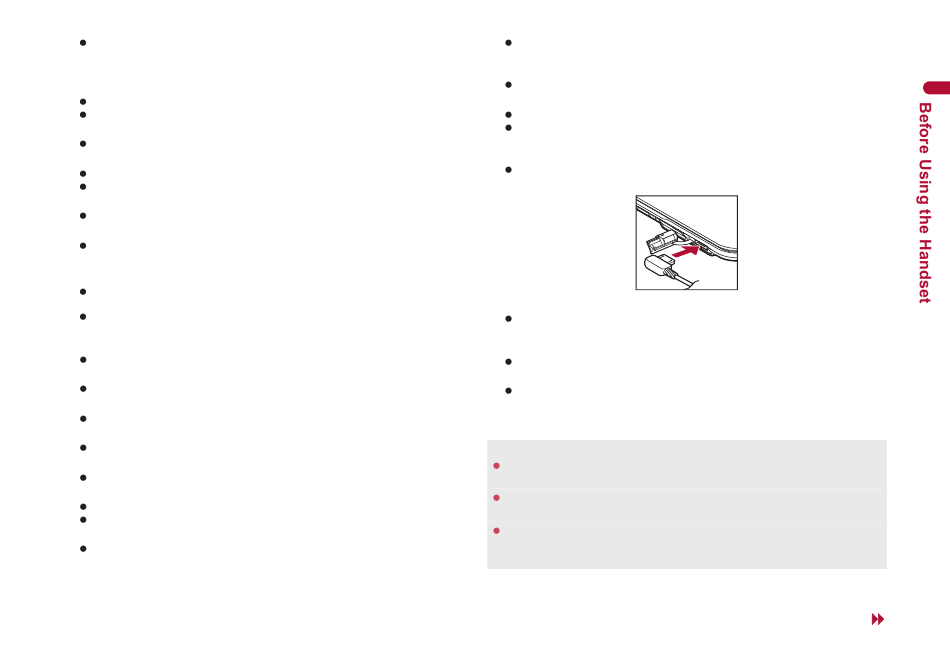

k External connector terminal
Use for charging and connecting a PC, etc.
Connect the microUSB adapter for charge (sample), microUSB cable
for PC (sample), etc. (nP. 38, P. 250).
l Earphone/Microphone terminal
Connect flat-plug earphone/microphone with switch (sold separately),
etc.
m FOMA antenna
FOMA antenna is built in. To receive in better conditions, do not cover
the antenna area with your hand.
n Out-camera
Use to shoot still pictures or moving pictures (nP. 126).
o Picture Light
Illuminates while shooting (nP. 132, P. 135).
p Strap hole
q Back cover (nP. 35)
Display
microSD Card is referred to as [microSD] or [SD] on the FOMA
terminal.
Some of the screen shots in this manual have been modified or
abbreviated.
The display for the FOMA terminal is manufactured using
high-precision technology, but it may occasionally contain dots that fail
to light or that remain permanently lit. This is not a malfunction.
Continued on next page
23
