Docomo F-11C Instruction Manual

Smart series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
F-11C
'11.5
INSTRUCTION MANUAL
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-11C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Docomo F-11C

Summary of Contents for Docomo F-11C

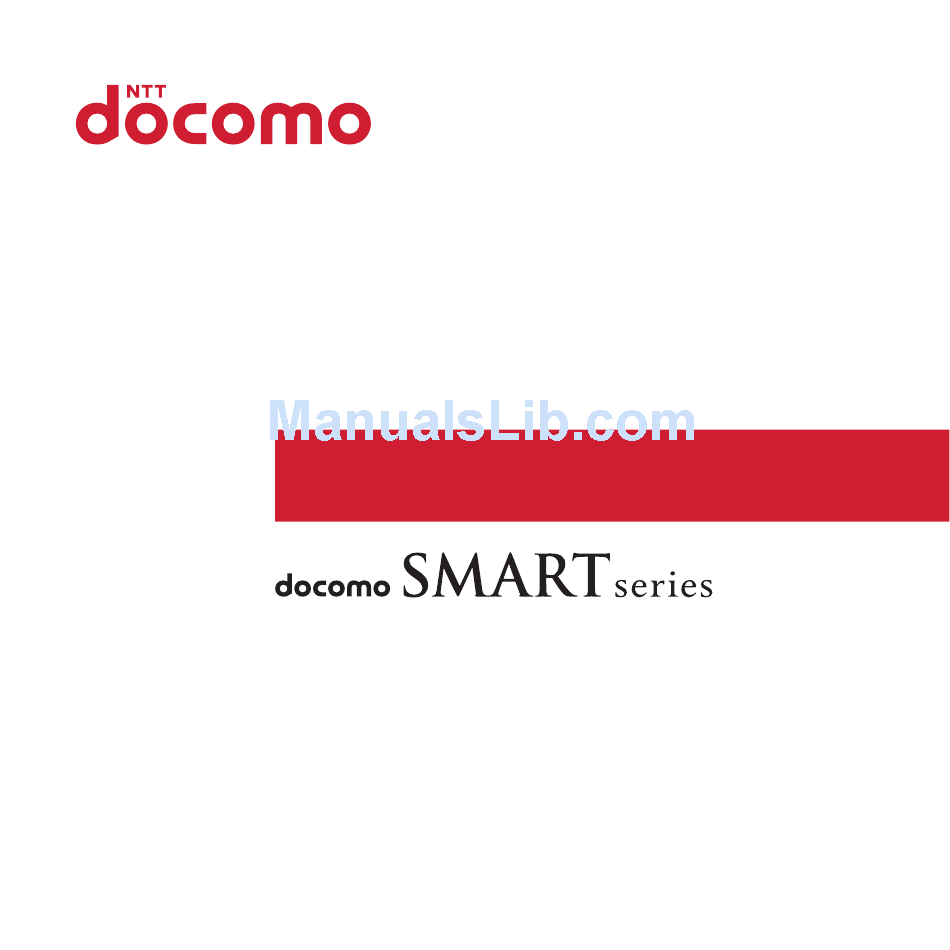

  • Page 1 F-11C ’11.5 INSTRUCTION MANUAL INSTRUCTION MANUAL...
  • Page 2 * The URL and contents are subject to change without prior notice. ･ In this "F-11C INSTRUCTION MANUAL", "F-11C" mobile terminal is usually referred to as "FOMA terminal". ･ The images or illustration used in this manual are examples. They may differ from the actual displays.

  • Page 3: Table Of Contents

    Contents FOMA terminal ......... Precautions (Always follow these What you can do with F-11C... directions) ........Introduction Part names and functions ....Handling precautions....... Open assist button......Waterproofness........ Before Using ........Sound/Screen Setting ..... Basic Screen Explanation ......Lock/Security ........
  • Page 4 Neither DOCOMO nor the certifier as listed herein makes any representation and warranty as for the security in the use of SSL/TLS. If the data should be erased, DOCOMO assumes no responsibility for the loss of any data. Certifier : VeriSign Japan K.K., Cybertrust Japan Co., Ltd., GlobalSign K.K., RSA Security Japan Ltd., SECOM Trust Systems Co., Ltd., Comodo CA Ltd., Entrust, Inc.
  • Page 5 What you can do with F-11C Waterproofness  i-concier  Waterproofness of IPX5 and IPX8 is provided by It is a service that Machi-chara (a character on the firmly closing the external connection jack cap stand-by display) supports your life like a butler or and installing the back cover in a locked state.
  • Page 6 Part names and functions Part names of F-11C and major functions assigned to each part are as follows.
  • Page 7 q # Enter "#" or punctuation, or start/ To use the function with *, press the key for 1 second or more. cancel Silent mode r s Multitask key for starting another a Earpiece b Display function during a call or operation c Light sensor for sensing the ambient s 1Seg antenna is built-in t Sub-display...
  • Page 8 I Side keys Z : Start shooting moving pictures, start Open assist button shooting and store still pictures, stop/start recording video during 1Seg watching You can open the FOMA terminal easily just by S : Stop the ring alert and the vibrator. pressing the dedicated button.

  • Page 9: Precautions (Always Follow These Directions)

    Precautions (Always follow these directions) ・ ・ Before using your FOMA terminal, or when The symbols below show specific directions. necessary, read the precautions below to ensure safe use and handling. After reading this This symbol denotes that the action manual, keep it carefully.

  • Page 10: Handling Foma Terminal, Battery Pack, Adapter, Desktop Holder And Uim (Common)

    Remove the power plug from the wall outlet or cigarette lighter socket. Use the battery pack and adapter ･ Turn FOMA terminal OFF. specified by NTT DOCOMO for your ･ Remove the battery pack from FOMA FOMA terminal. terminal. May cause fire, burns, injuries, electric shock.

  • Page 11: Handling Foma Terminal

    Children using the equipment should be Turn FOMA terminal OFF in areas where instructed in proper operation by an use is prohibited, such as in airplanes adult. Do not allow them to use the and hospitals. equipment without adult supervision. May cause electronic equipment or electronic medical equipment to fail or malfunction.
  • Page 12 Turn FOMA terminal OFF near high- When using the motion tracking or precision electronic control equipment motion sensor, check the safety around or electronic equipment using low- you, hold FOMA terminal firmly, and do Don’t power signals. not shake it unnecessarily. May cause the equipment to fail or malfunction.

  • Page 13: Handling Battery Pack

    Tape the terminals of old battery packs to insulate them, and then bring them into Do not throw the battery pack into the a sales outlet such as docomo Shop. If your local fire. municipality has a battery recycling program, May cause battery pack to ignite, burst, heat or Don’t...

  • Page 14: Handling Adapter And Desktop Holder

    Handling adapter and desktop Do not touch the adapter cord, desktop holder holder or outlet with wet hands. May cause fire, burns, electric shock. No wet hands WARNING Only use with the specified power source and voltage. Do not use the adapter cord if it gets When charging FOMA terminal damaged.

  • Page 15: Handling Uim

    ･ Turn FOMA terminal OFF in hospital lobbies Always remove the power plug from and corridors if electronic medical equipment the outlet or cigarette lighter when not could be nearby. ･ If the medical facility has specified zones using the adapter for an extended Unplug where use or possession of mobile devices is period.

  • Page 16: Material List

    Surface Material list Part Material treatment Front screw cap High strength UV hard Surface Part Material acrylate resin coating treatment External Body PC+ABS resin UV hard Exterior Movable PC+ABS resin UV hard connection coating case part/Sub- coating jack cap display Flexure Elastomer None...

  • Page 17: Handling Precautions

    - If FOMA terminal is crammed into a brimming bag or ・ F-11C is waterproof, however, do not allow water to placed in a pocket and sat on, display, internal PCBs or seep into FOMA terminal and do not allow battery pack may be damaged or malfunction.
  • Page 18 ・ It is normal for FOMA terminal to become warm Battery pack during use or charging. Continue to use it. ・ Do not leave FOMA terminal with the camera in areas ・ The battery pack is a consumable part. under strong direct sunlight. - Replace the battery pack if FOMA terminal has - May cause discoloring or burn-in of elements.
  • Page 19 If you remodel FOMA terminal by removing its screws, UIM. your certification of technical standard conformance - If the data is deleted, DOCOMO assumes no becomes invalid. responsibility for the loss of any data. Do not use FOMA terminal with its certification of ・...

  • Page 20: Waterproofness

    - In locked state with the back cover attached, *2 For F-11C, IPX8 means that a phone keeps with pressing and holding the external functioning after F-11C is slowly submerged to connection jack cap not to open, wash the depth of 1.5 m in static tap water at room...
  • Page 21 FOMA terminal parts as a chargeable service. Bring FOMA opened. terminal to a sales outlet such as a DOCOMO- ・ If you put the terminal in tap water or in water of specified repair office.
  • Page 22 DOCOMO-specified repair office. ・ If the external connection jack cap, or the rubber gasket on the rear side of the back cover is damaged or deformed, replace it at DOCOMO- specified repair office. b Shake FOMA terminal approximately 20 times,...
  • Page 23 Charging Check the following before and after charging. ・ Check if FOMA terminal is not wet. Never try to charge the battery pack when FOMA terminal is wet. ・ Accessories and optional devices are not waterproof. ・ When charging the battery when or after FOMA terminal is wet, adequately drain it and wipe off water with a dry, clean cloth etc., before connecting the accessory desktop holder or...
  • Page 24 Tray direction c to lock set in, and then push the tray Point ･ The UIM (blue) is not available for this FOMA terminal. If you have the UIM (blue), bring it to a docomo Shop to replace.
  • Page 25 Before Using Charging The battery pack does not have a full charge at time of purchase. Use AC adapter for FOMA terminal to charge the battery before using FOMA terminal. Charging using desktop holder Insert the connector of AC adapter AC adapter AC 100V horizontally to the accessory desktop...
  • Page 26 Before Using Before Using Power ON - Default setting Caller ID notification Initial setting is an operation when FOMA terminal Set whether to notify your phone number (caller is turned ON for the first time. ID) to the other party's terminal when making a voice call.
  • Page 27 " ® " ひつじのしつじくん (Butler Sheep) secret attribute ©NTT DOCOMO : High-pitched alarm is "ON" : Kid-safe mode ON : Unread Area Mail exists : Unread i-mode mail exists : Arrival i-concier information exists : Unreceived i-mode mail exists in the Center...
  • Page 28 e Status area (Second line) : Music&Video Channel program obtaining reservation exists : Silent mode ON : During i-αppli operation : Call alert volume OFF : i-αppli call exists : Vibration mode for voice call ON : Alarm clock is set : Public mode (Drive mode) ON : Schedule alarm is set : Manner support ON...
  • Page 29 Screen Explanation Screen Explanation Sub-display and Light Basic operations for screen and keys You can check information with the sub-display or Menu operation light when the FOMA terminal closed. If no On the stand-by display, select m and then operation is performed for a certain time, the sub- display turns off, but it turns on again by pressing perform the functions from the menu.
  • Page 30 Screen Explanation Character Entry Entering characters 使いかたガイド (Guide) You can check outline of function, operations or Kana input and conversion troubleshooting. (In Japanese only) mef LifeKite* GuideeSelect a 5-touch input is an input method to switch a character by pressing a key repeatedly. search method Enter character on the character entry screen...

  • Page 31: Text Input

    Operations during character entry Entering pictograms/symbols Returning to the previous character : n On the character entry screen, when Deleting characters : c [Pict/Sym] is displayed, C [Pict/ Adding voiced/semi-voiced sound or switching Sym]eSelect a pictogram upper/lower case : * On the pictogram selection screen, press m to display Symbol-S/Symbol-L, press C to Switching input modes...

  • Page 32: Sound/Screen Setting

    Sound/Screen Setting Sound settings You can set tones, such as changing a ring alert, <Example> Setting Call vibrate alert meh Settings & NWservicesea adjusting the volume, or muting the sound emitted from FOMA terminal. Alerts & Soundsec Vibrate alert/effecte a Call vibrate alertea Call vibrate alert Ring alerts &...
  • Page 33 Sound/Screen Setting Setting display Stand-by display setting Privacy view You can change the default stand-by display. This function allows the display to be less-visible to the people around you. You can start/cancel on <Example> Setting preinstalled image the screen other than the stand-by display. meh Settings &...
  • Page 34 Sound/Screen Setting Setting Machi-chara Kisekae Tool You can set a character to be displayed on the stand-by display. A message can be changed to You can set the stand-by display, menu, incoming/ the speech in Machi-chara talk expression. You outgoing call screens, etc. at once with a can also use Friendly message support Machi- predefined combination.
  • Page 35 Sound/Screen Setting Sound/Screen Setting Light setting eco mode Save the battery power by adjusting the display Indicator light backlight or sound temporarily. You are notified of missed call or unread mail meh Settings & NWserviceseb (including SMS) by the indicator light. Displayeh eco modeea eco mode meh Settings &...

  • Page 36: Lock/Security

    (At subscription : Set any code) The PIN1 code is a security code to be used when installing the UIM or turning ON the FOMA Network security code is required when DOCOMO terminal. identifies the subscriber at docomo Shop, The PIN2 code is the security code to be used docomo Information Center or "お客様サポート...
  • Page 37 Shop. For users subscribed in other than docomo Shop, bring a document (a drivers license etc.) to identify your subscription and the UIM to a docomo Shop, or contact "General Inquiries" on the last page of this manual.
  • Page 38 Calls can be made only by using phonebook. * Omakase Lock can be set/canceled from My Activate/Deactivate : docomo site using a PC etc. (in Japanese only) mehdafeAuthenticateea Lock on close All keys except the side keys are locked when FOMA terminal is folded.
  • Page 39 Lock/Security Lock/Security Incoming call restriction Resetting to default Anonymous caller Reset For each reason for hiding caller ID, you can set a You can restore functions in red characters on the receiving operation. menu list to the default settings. ⇒P76 meh Settings &...
  • Page 40 From Show all names : meaaeIn the Point Call type field, beC ･ DOCOMO videophone specifications conform to From other search : I "3G-324M, an international standard prepared by 3GPP". The connection with the videophones of different specifications cannot be established.
  • Page 41 "WORLD CALL" is the international call service is required. (voice call/videophone call) available from DOCOMO mobile phones. You are subscribed to "WORLD CALL" at the time of subscription to the FOMA service (Unless you request not to subscribe to it).
  • Page 42 Call Telephone Call Telephone Operation during a call Receiving a call/videophone call Receive You can use useful functions during a call. You are notified of an incoming call with ring On hold alert, light alert, etc. On the display, the phone number appears when caller ID is sent, and A melody is played while on hold.
  • Page 43 Call Telephone When you cannot answer a call Record message Public mode When Record message is set to "ON", a greeting Public mode is an automatic answering service message is played and the caller can record putting emphasis on manners in a highly public message when you cannot answer the call.
  • Page 44 Call Telephone Network Services ･ For details of "OFFICEED", refer to DOCOMO's Monthly Service Application business website (http://www.docomo.biz/html/ charge service/officeed/ (In Japanese only)). Voice Mail Service Required Charged Setting network service Power OFF/Out of service Free area notification service required...
  • Page 45 Call Telephone Emergency call ･ You can make the following emergency calls from When calling to 110, 119 or 118 from the FOMA the FOMA terminal. terminal, inform them that you are calling from a mobile phone and give your phone number Police and your current location precisely since the Fire and ambulance...
  • Page 46 ○ ○ ○ × × mode using network of telecommunications Videophone call ○ × carriers affiliated with DOCOMO overseas. Before i-mode ○ ○ using this service, check its subscription status. × i-mode mail ○ ○ For details, contact "General Inquiries" on the last page of this manual.
  • Page 47 Making a call to WORLD WING user Making a call from overseas overseas You can make a call in simple operation using 0 (1 sec. or more)eEnter "81 - memory No. (Quick dial). mobile phone number without the When you enter and call a number within 2-digits leading 0"en (voice call) overseas, a screen asking for selecting "Quick dial"...

  • Page 48: Mail

    SMS can be also sent to or received from the is automatically saved in a folder of Outbox. parties using overseas service providers except DOCOMO. For countries and overseas Point telecommunications carriers available, refer to Adding addresses : On the mail creation screen, move "Mobile Phone User's Guide [International...
  • Page 49 Mail Deco-mail/Decome-Anime Deco-mail Decome-Anime You can change a font size or background color, or You can create more expressive Deco-mail using insert still images, Deco-mail picture or Deco-mail templates made with Flash graphics. pict. aec Compose Decome-Animee <Example> Specifying decoration before entering "Edit"...
  • Page 50 Mail Receiving i-mode mail No specific operations or settings are required for Checking new messages receiving mails (mail automatic reception). You can make inquiry for any i-mode mail or Receive i- Blinking MessageR/F delivered while you were out of mode mails service area or the power was turned OFF.
  • Page 51 Mail Phonebook Early warning "Area Mail" Phonebook new entry This is a service that you can receive emergency There are two phonebooks: the FOMA terminal earthquake flash report etc. delivered by the phonebook and the UIM phonebook. Meteorological Agency. i-mode subscription is <Example>...
  • Page 52 i-mode/Full Browser Displaying i-mode site/website With i-mode, you can use services such as site Browsing i-mode website connection, Internet connection or i-mode mail by IeSelect an item the display of i-mode compatible terminal. You can use Full Browser to display websites created to view for a PC.
  • Page 53 Viewing and operating screen Bookmark You can bookmark frequently visited sites or Status, title/URL websites to quickly display them the next time you want to visit. Saving : While a site or website is displayed, meabeCeSelect a saving folder Displaying : mebbeSelect a foldereSelect Pointer a bookmark Screen memo...
  • Page 54 The auto-received information appears in the ticker on the stand-by display. Press c to display the channel list. ● Basic Channel The channel is provided by DOCOMO, and the packet communication fee for automatically updating the distributed information is not charged.
  • Page 55 Camera Shooting still images/moving pictures Fix camera shake Viewing shooting screen Skew correction Continuous/Panorama shooting Image quality Quality Size restrictions Size Shooting still images Point the camera at an object, g <Still image shooting <Moving picture [Shoot] screen> shooting screen> g[Save] a Sense orientation icon b Auto scene recognition icon...
  • Page 56 The following operations are available on the Viewing still images/moving shooting screen. pictures Checking saved still image/moving pictures : C [List] Still images/moving pictures are saved to Data Night mode ON/OFF : I [Night ON/Night OFF] Box. Macro : # mee Data BoxeFor still image, a Zooming in/out : j for moving picture, d i-...
  • Page 57 1Seg Watching 1Seg Creating a channel list using ● Using 1Seg preset (for the first-time creation) 1Seg is a service provided by TV broadcasting enterprises (stations), etc. A communication fee To watch 1Seg, you need to create a channel list. for receiving video picture and sound is not <Example>...
  • Page 58 Viewing and operating the Watching/Recording watching screen reservation mef Lifekitei 1Seged Set/ You can watch 1Seg in full screen, or divide the screen to watch the data broadcasting. Timer list mea Set new timereSelect a entry method When selecting "Manual reception" or "Manual recording", you proceed to set the reservation details such as time and date or channel.

  • Page 59: Music

    Music Music&Video Channel Music&Video Channel is a service which Program setting automatically distributes a program of up to approximately 1 hour at night. You can also enjoy To set programs, registering Music&Video high-quality video program of up to Channel program site in My Menu may be approximately 30 minutes.

  • Page 60: Music Player

    Link lyrics & song. The following operations are available on the * For details of MUSIC Player, refer to NTT player screen. DOCOMO website. For Windows Media Player, Pausing/Playing : g [PAUSE/PLAY] contact the manufacturer of your PC. Adjusting volume : j Rewinding/Fast forwarding : h (1 sec.

  • Page 61: I-Αppli

    A packet communication fee for overseas use I (1 sec. or more)eSelect a foldere differs from the one in Japan. ･ Select i-αppli DOCOMO assumes no responsibility for the information set in Osaifu-Keitai compatible i- αppli (IC card). Point ･ If you delete stored i-αppli, Starting Osaifu-Keitai compatible i-αppli :...

  • Page 62: I-Motion/Movie

    i-motion/Movie Playing i-motion/movie You can obtain i-motion/movie (images, sound, Downloading i-motion/Movie etc) from sites or websites. ✜ Select i-motion/movie while site or Playable i-motion website is displayed Type Playing action Playback starts while data is downloaded or Standard While the i-motion data is when the download is completed.
  • Page 63 IC card reader damaged by any means related to Osaifu-Keitai compatible service such as malfunction or At this time, starting Osaifu-Keitai compatible model change, DOCOMO assumes no i-αppli is not required. responsibility for the loss of data. ･ If FOMA terminal is stolen or misplaced,...

  • Page 64: I-Concier

    ® " ひつじのしつじくん ･ (Butler Sheep) " A packet communication fee is separately Select a piece of NTT DOCOMO © required to receive information except for some <Information reception screen> information information. ･ Some pieces of information may have a...
  • Page 65 Convenient tools Convenient tools Scheduler Alarm clock You can manage your schedule in the FOMA You can set to activate 1Seg after sounding Alarm terminal. clock. u (1 sec. or more)eSelect a number Registering schedule eh to switch the screen to set uemea New entry required itemseC [Set] Use h to switch the screen and set...

  • Page 66: Data Management

    Turn FOMA terminal OFF and remove ･ F-11C supports microSD card of up to 2 Gbytes, and the battery pack microSDHC card of up to 16 Gbytes (as of June, 2011). Insert the microSD card slowly into the...
  • Page 67 Data Management Exchanging data between the FOMA terminal and microSD card Copying images to microSD Backing up at once card You can back up phonebook entries, schedules, mee Data Boxea My mails, notes, bookmarks, set item data all at once picturee in the microSD card.
  • Page 68 Data Management Infrared communication/iC transmission You can send/receive data to/from devices such as To do Operation FOMA terminal supporting infrared Sending an item Move a phonebook entrye communication function or iC transmission mehea ce"Yes" via infrared function. communication/ iC transmission Infrared <Example>...

  • Page 69: Connecting To A Pc

    PC Connection. "FOMA communication data communication volume or usage fees by the configuration file" and "Manual for PC charge counter function. Connection" can be downloaded from NTT For details, refer to NTT DOCOMO website. DOCOMO website. http://www.nttdocomo.co.jp/support/utilization/ http://www.nttdocomo.co.jp/support/ application/service/connection_manager/ (In Japanese only)
  • Page 70 DOCOMO keitai datalink DOCOMO keitai datalink is a software for backing up phonebook, mail and other data in your mobile phone to a PC and editing them. It can be downloaded from NTT DOCOMO website. For details and downloading, refer to the following website.
  • Page 71 Check for the necessity of software update first, and update the software if necessary. ⇒P73 When checking the following items not to improve the state, contact "Repairs" on the last page of this manual (in Japanese only) or DOCOMO-specified repair office. ✜...
  • Page 72 ✜ ● FOMA terminal etc. become hot while operating/ Osaifu-Keitai charging. ● Osaifu-Keitai function is unavailable. While operating or charging, or if you use i-αppli, ･ When removing the battery pack, Osaifu-Keitai videophone call, 1Seg watching, etc. for a long time functions are unavailable regardless of the IC card while charging the battery, FOMA terminal, battery lock settings.
  • Page 73 All repairs that are requested are charged. repair is required Replacement parts Take your FOMA terminal to DOCOMO-specified Replacement parts (parts required to maintain the repair office. Be sure to check the opening hours of product functions) are basically kept in stock for at the office before you go.
  • Page 74 - Exteriors are replaced with other than diagnosis, contact "Repairs" on the last page of DOCOMO's genuine parts this manual (in Japanese only). - Repair of failures or damage caused by modification is charged even during the Accessing to “ｉモード故障診断...
  • Page 75 DOCOMO website or iMenu (in Japanese only). server (the server for software update managed Software may be updated in 3 methods: "Auto- by DOCOMO). DOCOMO does not use the sent information for purposes except software update. update", "Immediate update" and "Reserved ･...
  • Page 76 Support Scanning function (Security Scan) For the data or programs that are imported to Scan result FOMA terminal, this function detects data and deletes data or inhibits activation of applications Warning level Actions that may cause troubles. [0] Operation "OK" : Continue processing of the ･...
  • Page 77 FOMA AC Adapter 01 for Global use ･ unavailable depending on the area. FOMA Indoor Booster Antenna ･ For details, contact a sales outlet such as docomo FOMA Indoor Booster Antenna (Stand Type) ･ Shop. For details about the optional devices, refer Bone conduction microphone/receiver 01 ･...

  • Page 78: Appendix

    Appendix Menu list ･ Menu list for the case Select startup menu is set to "Basic menu" is described. ･ Menus indicated in can be restored to the default by executing Reset (including the menu whose partial sub content menu will be reset to the default). ■Mail Screen memo Inbox...
  • Page 79 i-αppli settings Sort software Kisekae Tool Auto-start Machi-chara Software info disp. Chara-den Display light time My collection Brightness 1Seg Vibrate effect ■LifeKit Sound effect volume Bar code reader i-Widget settings Ir/iC/PC connection Receive Ir data i-αppli call DL set Send all Ir data Display history Send all via iC i-αppli shortcuts...
  • Page 80 ■Settings & NWservices 1Seg Activate 1Seg Program guide Alerts & Sounds Ring alerts & Sounds 1Seg image/video Adjust volume Set/Timer list Vibrate alert/effect Recording result Silent mode TVlink Ring alert delay Channel list Stereo sound effect User setting BGM play Guide Display Stand-by display...
  • Page 81 ■MUSIC Call & Answer Sound & Image Anonymous caller MUSIC Player Any key answer Music&Video Channel Headset ■Osaifu-Keitai Reject/Accept call IC card content Make/Receive call DCMX Call session ToruCa content Self mode IC card settings Lock/Unlock Videophone V.phone dialing img. Lock preference Videophone alert Timed lock...
  • Page 82 Appendix Main specifications ■Phone Camera Number of Approx. 5,000,000 pixels section recording Product name F-11C pixels × Size Approx. 111 mm (H) 51 mm (Max.) × 12.8 mm (T) Zoom Up to 16.0 x (Thickest part : Approx. 16.6 mm)
  • Page 83 *1 Continuous stand-by time indicates the estimated time when Savable/Recordable/ FOMA terminal is closed and able to receive radio waves normally. Stationary continuous stand-by time indicates the Protectable number average utilization time FOMA terminal is closed and able to receive radio waves normally remains stationary. Moving continuous stand-by time indicates the average utilization Savable/ time when FOMA terminal is closed and able to receive radio...

  • Page 84: Declaration Of Conformity

    This mobile phone can be used in positions other than against your ear. This mobile phone satisfies the international guidelines when used with a carrying The product "F-11C" is declared to conform with the case or a wearable accessory approved by NTT essential requirements of European Union Directive DOCOMO, INC.(...
  • Page 85 This mobile phone complies with the EU requirements Federal Communications for exposure to radio waves. Commission (FCC) Notice Your mobile phone is a radio transceiver, designed and manufactured not to exceed the SAR limits ･ This device complies with part 15 of the FCC rules. exposure to radio-frequency(RF) energy, which SAR Operation is subject to the following two conditions : value, when tested for compliance against the...
  • Page 86 Before a phone model is available for sale to the public, * In the United States, the SAR limit for wireless mobile phones used by the general public is 1.6 Watts/kg (W/kg), averaged it must be tested and certified to prove to the FCC that over one gram of tissue.

  • Page 87: Important Safety Information

    Hearing Aids Important Safety Information Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you AIRCRAFT may want to consult your hearing aid manufacturer to Switch off your wireless device when boarding an discuss alternatives.
  • Page 88 "FOMA", "i-mode", "i-αppli", "i-motion", "Deco-mail", CO., LTD. in the United States, Japan and/or other "Chara-den", "ToruCa", "WORLD CALL", "DCMX", countries.  "WORLD WING", "OFFICEED", "2in1", "docomo Copyright 2011 ACCESS CO., LTD. All rights SMART series" and logos of "i-mode", "i-αppli", reserved.
  • Page 89 ･ ･ is a registered trademark of FeliCa Networks, Inc. "Uni-Type" is a universal designed font jointly- ･ FeliCa is a registered trademark of Sony Corporation. developed by LIM Corp., Ltd. and Faculty of ･ QR code is a registered trademark of Denso Wave Engineering, Chiba University.
  • Page 90 ･ The HMM-Based Speech Synthesis Engine Others embedded in this product uses the Simplified BSD License. ･ This product contains a module developed by the ------------------------------------------------------------------------- Independent JPEG Group. The HMM-Based Speech Synthesis System (HTS) ･ FeliCa is a contactless IC card technology developed hts_engine API developed by HTS Working Group by Sony Corporation.
  • Page 91 THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT...
  • Page 92 After-Sales Service ......... Displaying phone number ......Alarm clock ............. Displaying web pages........All lock ............. DOCOMO Connection Manager..... Anonymous caller........... DOCOMO keitai datalink ........ Arrival information ......... Attachments ........... Auto-sort method........... Early warning "Area Mail"......eco mode ............eco mode options..........
  • Page 93 i-mode password..........i-motion/Movie..........Omakase Lock ..........Incoming call restriction ........ On hold............. Indicator light..........Options and related devices......Information ............. Osaifu-Keitai ............ Infrared communication ........ Overseas use ........... Initial setting ........... Input mode............International calls ........... PC connection..........International Roaming ........Personal data lock...........
  • Page 94 SAR ..............Vibration mode ..........Savable/Recordable/Protectable number..Voice Mail Service........... Scanning function .......... Scheduler ............Screen memo..........Warranty ............Security code ..........Watching reservation ........Security Scan ..........WMA file ............Select startup menu........WORLD CALL........... Self mode ............WORLD WING..........Sending i-mode mails ........
  • Page 95 * You may not use the services depending on your access from overseas. subscription. * You need "docomo ID/Password" to access the site from * There are cases where the site may not be available to your PC. system maintenance, etc.
  • Page 96 If you lose your FOMA terminal or have it stolen, immediately take the steps necessary for suspending the use of the FOMA terminal. ● If the FOMA terminal you purchased is damaged, bring your FOMA terminal to a repair counter specified by DOCOMO after returning to Japan. Don't forget your mobile phone ･･･ or your manners! When using your mobile phone in a public place, don't forget to show common courtesy and consideration for others around you.
  • Page 97 ......Using DOCOMO Connection Manager ......10 Setting communications without using DOCOMO Connection Manager 15 Connecting to a Wi-Fi compatible PC .

  • Page 98: Data Communication

    5.7Mbps or 384kbps by using access points that support FOMA packet communication such as mopera U of DOCOMO's Internet connection service. Best effort method which the actual communication speed varies with the environment and the rate of congestion offers.

  • Page 99: Before Use

    Access points that support FOMA 64K data communication services such as mopera U of DOCOMO's Internet connection service or ISDN synchronized 64K access points can be used.
  • Page 100 ◆ Introduction of DOCOMO keitai datalink DOCOMO keitai datalink is software to back up and edit your phone information such as phonebook and mail. It is provided on NTT DOCOMO website. For details and download of this software, refer to the following website.

  • Page 101: Flow Of Setup For Data Transfer (Obex Communication)

    Flow of setup for data transfer (OBEX communication) When using USB Cable, install FOMA communication configuration file (driver) in advance. Downloading FOMA communication configuration file (driver) from NTT DOCOMO website and installing Data transfer Flow of setup for data communication This section describes the setup work for performing packet communication or 64K data communication.
  • Page 102 Example : Right-click the icon displayed in the task bar, click "閉じる (Close)" or "終了 (End)". ･ For installing/uninstalling FOMA communication configuration file (driver) or DOCOMO Connection Manager, make sure that a user with administrator's privilege performs the operation. Installing/ uninstalling the software by other users may produce an error.

  • Page 103: Connecting Up Pc To The Foma Terminal

    Connecting up PC to the FOMA terminal Connecting/disconnecting to PC is explained here. Installing FOMA communication configuration file (driver) is described separately.→P7 ･ If you connect FOMA terminal to a PC before installing FOMA communication configuration file (driver), Windows may automatically detect that USB cable has been inserted, and may request the driver. In such a case, click "キャンセル...

  • Page 104: Installing Foma Communication Configuration File (Driver)

    Do not connect FOMA terminal until a message that instructs you to connect FOMA terminal to a PC appears in Step 5. Download FOMA communication configuration file (driver) from NTT DOCOMO website. http://www.nttdocomo.co.jp/support/utilization/application/foma/com_set/driver/index.html ･ Before downloading, check model name of FOMA terminal.
  • Page 105 Double-click the type of each device→Confirm that the name of the following devices are registered. ･ Device types and names are shown as below. The order to be displayed differs depending on OSs. -ポート(COMとLPT) (Port (COM and LPT)) : FOMA F09C Command Port (COMx) FOMA F09C OBEX Port (COMx) -モデム...

  • Page 106: Preparing For Bluetooth Connection

     Preparing for Bluetooth connection You can make data communication by connecting a PC compatible with Bluetooth and FOMA terminal using Bluetooth. ･ For operations of a PC, refer to the instructions manual of the PC you use. ･ If the FOMA terminal is put on Bluetooth connection standby, (blue) appears on the stand-by display.

  • Page 107: Using Docomo Connection Manager

    Also, you can check an estimate of data communication volume or usage fees by the charge counter function. In this manual, the method of installing DOCOMO Connection Manager is explained. Not displayed in default setting. For details, refer to ヘルプ (Help) of ドコモ...
  • Page 108 For connection/settings of mopera, refer to mopera website. http://www.mopera.net/mopera/support/index.html ◆ Before installing DOCOMO Connection Manager Before installing DOCOMO Connection Manager, check the items below and perform to change setting of software/uninstall as required. ･ Prepare FOMA terminal and USB Cable (For Bluetooth connection, USB cable is not required).
  • Page 109 ❖ Using connection software except for DOCOMO Connection Manager DOCOMO Connection Manager includes same function as that of software below and using together is not required. Perform to change setting not to be activated or uninstall as required. ･ mopera U start up tool ･...
  • Page 110 Confirm the contents of ソフトウェア使用許諾契約 (Software license agreement) and if you agree to the agreement, select "使用許諾契約の条項に 同意します (Agree to the clauses of the agreement)" and click "次へ (Next)". Confirm the installing folder and click "次へ (Next)". ･ To change the installation destination, click "変更 (Change)" and specify any installation destination.
  • Page 111 When booting a PC at first time, the setting wizard screen appears automatically. ･ According to the setting wizard, perform to set for making data communication connecting to Internet. After setting, you can perform communication using DOCOMO Connection Manager. For details, refer to "ドコモ コネクションマネージャ操作マニュアル (DOCOMO Connection Manager operation manual)".

  • Page 112: Setting Communications Without Using Docomo Connection Manager

    ✔INFORMATION ･ Just exiting the Internet browser or mail software may not disconnect communication. When you do not use communication, be sure to disconnect the communication from "切断する (Disconnect)" button of DOCOMO Connection Manager. ･ Please note that if auto update is set for OS update etc., the software is updated automatically and high cost may be charged for the packet communication fee.
  • Page 113 ◆ Setting the dialup connection (APN) ❖ The dialup connection (APN) and registration number (cid) The dialup connections (APN) for packet communication can be set for registration numbers (cid) between 1 and 10 in FOMA terminal. By default, "mopera.ne.jp" (APN) to connect to mopera is registered in cid1, "mopera.net"...
  • Page 114 Enter a fictional phone number (such as "0") for "電話番号 (Phone number)" →Select "接続方法 (Connection method)"→Click "OK". ･ "市外局番 (Area code)" differs depending on the PC environment. The code does not relate to Dialup connection (APN) setup. So no need to change.
  • Page 115 Enter notify/not notify of caller ID in the format "AT＊DGPIR=<n>"→ <n> : 0-2 0 : Connect directly (Default) 1 : Connect prefixing 184 (Not notify) 2 : Connect prefixing 186 (Notify) ･ If nothing is displayed even when AT command is entered, enter ATE1 and press Confirm that "OK"...
  • Page 116 ❖ Setting for Windows 7, Windows Vista Click (Start)→"コントロールパネル (Control panel)"→"ネットワークの状態 とタスクの表示 (Network status and tasks)" in the "ネットワークとインター ネット (Network and Internet)" category. Under Windows Vista Click (Start)→"接続先 (Dialup connection)". Click "新しい接続またはネットワークのセットアップ (Setup new connection or network)". Under Windows Vista Click "接続またはネットワークをセットアップします...
  • Page 117 On the connecting screen, click "スキップ (Skip)". ･ Only make settings without connecting to the Internet right away. On the "接続の使用準備ができました (Preparation for using is completed)" screen, click "閉じる (Close)". Under Windows Vista a On the " インターネット接続テストに失敗しました (Failed in Internet connection test)" screen, click "接続をセットアップします...
  • Page 118 Click "ネットワーク (Network)" tab→Set each item as shown below. ･ Uncheck ( ) "インターネットプロトコルバージョ ン6 (TCP/IPv6) (Internet Protocol Version 6 (TCP/ IPv6))". ･ When settings of IP and DNS information have been requested from the provider, etc. select "イ ンターネットプロトコルバージョン4 (TCP/IPv4) (Internet Protocol Version 4 (TCP/IPv4))", click "プ...
  • Page 119 Enter the desired dialup connection name in "ISP名 (ISP name)"→Click "次へ (Next)". ･ You cannot use "." (one-byte period) at the beginning of "ISP名 (ISP name)". Also, the following characters (one-byte) cannot be used. ￥/:＊?<>｜” Enter the phone number of the dialup connection in "電話番号 (Phone number)"...
  • Page 120 Select the created dialup connection icon and click "ファイル (File)"→Click " プロパティ (Property)". Confirm the setting of each item in "全般 (General)" tab. ･ When plural modems are connected to a PC, set as follows. For USB cable connection : Select only "モデム- FOMA F09C (Modem-FOMA F09C)"...
  • Page 121 Click "OK". Performing communication→P24 ◆ Performing communication via dialup connection Starting communication and disconnection are explained here. <Example> Under Windows 7 Connect FOMA terminal to a PC. For USB cable connection→P6 For Bluetooth connection→P9 Click (Start)→"コントロールパネル (Control panel)"→"インターネットへの 接続 (Connect to the Internet)" in the "ネットワークとインターネット (Network and Internet)"...

  • Page 122: Connecting To A Wi-Fi Compatible Pc

    ✔INFORMATION ･ FOMA terminal displays a connecting screen when you execute packet communication or 64K data communication. The following screens are displayed when a connection has been established. For packet For 64K data communication communication ･ The communication speed displayed on your PC may differ from actual speed. ･...
  • Page 123 Select "ワイヤレスネットワークに手動で接続します (Connect to Wireless network manually)" and click "次へ (Next)". ･ To make wireless connection for the first time, on the "ワイヤレスネットワークに手動で接続します (Connect to wireless network manually)" screen, change ワイヤレスアダプタ (Wireless adapter) to "ワイヤレスネットワーク接続 (Wireless network connection)" and click "次へ (Next)". Enter network information and click "次へ...

  • Page 124: At Command

    AT command AT commands are commands for setting FOMA terminal functions using a PC. FOMA terminals comply with AT commands and support some extended commands and proprietary AT commands. ❖ AT command input format "AT" must be entered before each AT command. Commands must be entered in one-byte alphanumeric characters.
  • Page 125 Execute in online command mode.→P27 NO CARRIER ATI<n> Display the confirmation code. n=0 : "NTT DoCoMo"  n=1 : Display model name of FOMA terminal ATI0 n=2 : Display version of FOMA terminal  n=3 : Display elements of ACMP signals NTT DoCoMo n=4 : Display details of functions that can be communicated by FOMA terminal in numeric Return from online command mode to online data mode during communication.
  • Page 126 Upper slot : Command Description Lower slot : Example ATS4=<n> Set the line feed (LF) character. When result code is displayed as alphabetic characters, appends the character after the carriage return (CR) character. ATS4=10 n=10 (fixed value) ATS4? : Display current settings ATS5=<n>...
  • Page 127 Upper slot : Command Description Lower slot : Example AT&E<n> Set the speed display used when connection is made. n=0 : Display communication speed of wireless zone AT&E1 n=1 : Display communication speed between a PC and FOMA terminal (default) AT&F Reset the current setting to the default.
  • Page 128 Upper slot : Command Description Lower slot : Example AT+CBST=<n>,1,0 Set the line to use (Setting of bearer service) n=116 : 64K data communication (default)  n=134 : 64K videophone AT+CBST=116,1,0 AT+CBST? : Display current settings  AT+CBST=? : Display a list of assignable values AT+CDIP=<n>...
  • Page 129 AT+CREG=? : Display a list of assignable values AT+CUSD=<n>,"<str>" Set Additional service (Register USSD) of Network Services. Enter Service code provided by DOCOMO in <str>. AT+CUSD=0,"012345678" n=0 : Not answer mid result (default) n=1 : Answer mid result in "+CUSD : <m>, "<str>",0" format m=0 : Information not requested  m=1 : Information requested...
  • Page 130 Upper slot : Command Description Lower slot : Example AT+GMI Display FOMA terminal manufacturer name. AT+GMI FUJITSU AT+GMM Display model name of FOMA terminal. AT+GMM FOMA F09C AT+GMR Display FOMA terminal version. AT+GMR Ver1.00 AT+IFC=<n,m> Set how to control local flow between a PC and FOMA terminal. n, m=0 : No flow control  n, m=1 : Perform XON/XOFF flow control AT+IFC=2,2 n, m=2 : RS/CS (RTS/CTS) Perform flow control (default)
  • Page 131 ◆ Error messages list Text display Description SIM not inserted UIM is not set. SIM wrong Other than DOCOMO SIM (IC card equivalent to UIM) is inserted. incorrect password Incorrect password unknown Unknown error ◆ Supplement to AT command ･...
  • Page 132 ■ Command name : +CGEQMIN=[parameter] ･ Outline Set the criteria for judging whether to permit QoS (Quality of Service) provisioned by the network when packet communication is established. ･ Format AT+CGEQMIN= [<cid> [,,<Maximum bitrate UL> [,<Maximum bitrate DL>] ] ] ･...
  • Page 133 ◆ Result codes ･ When ATV command is set to n=1 (default), the result code is displayed in alphabetic characters. When the command is set to n=0, the result code is displayed numerically.→P29 ■ Result codes Text display Meaning Operation performed normally CONNECT Terminal connected to other party RING...
  • Page 134 ■ Communication protocol result code Text display Meaning PPPoverUD Connect via 64K data communication (BC=UDI, +CBST=116,1,0) AV64K Connect via 64K videophone PACKET Connect via packet communication ■ Display example of result code When ATX0 is set Regardless of the settings of AT￥V command, only "CONNECT" is displayed upon completion of connection.
  • Page 135 Kuten Code List For entering characters using code, see "Entering characters using code" in the attached manual. Note that some characters in the code input list may look different from actual ones. 4th digit of code 4th digit of code 4th digit of code -3rd -3rd...
  • Page 136 4th digit of code 4th digit of code 4th digit of code -3rd -3rd -3rd さ 全 禅 繕 膳 糎 祢 寧 葱 猫 熱 年 念 捻 撚 燃 些 そ 粘 佐 叉 唆 嵯 左 差 査 沙 瑳 砂 噌...
  • Page 137 4th digit of code 4th digit of code 4th digit of code -3rd -3rd -3rd 紋 門 匁 咫 哂 咤 咾 咼 哘 哥 哦 唏 晟 晢 晰 暃 暈 暎 暉 暄 暘 暝 や 唔 哽 哮 哭 哺 哢...
  • Page 138 4th digit of code 4th digit of code 4th digit of code -3rd -3rd -3rd 瞽 瞻 矇 矍 矗 矚 矜 矣 矮 矼 蠑 蠖 蠕 蠢 蠡 蠱 蠶 蠹 蠧 蠻 髻 鬆 鬘 鬚 鬟 鬢 鬣 鬥 鬧 砌...

Table of Contents
