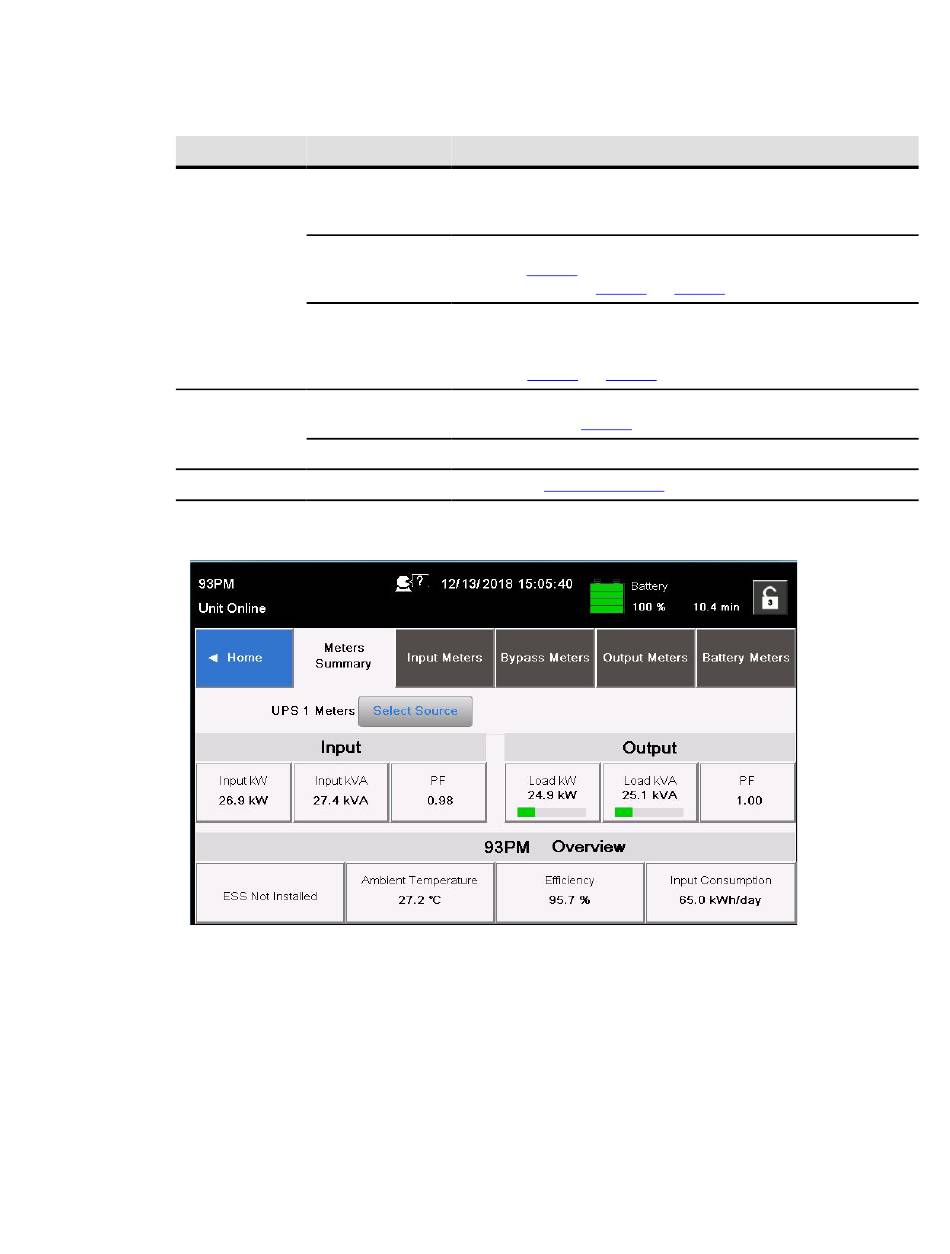

Figure 50. Typical Meters Summary Screen - Eaton 93PM Installation And Operation Manual

Table 33. Display Menu Operation (Continued)
Function Subfunction
Settings
User
Configuration
Statistics Statistics Summary
Statistics Details
Controls

Figure 50. Typical Meters Summary Screen

Eaton 93PM UPS (400V/480V Four-Wire – 100 kW Frame) Installation and Operation Manual 164000566—Rev 04
Operation
Configurable system settings. Tap the SETTINGS tab on the main menu
navigation bar to display the settings screen. Settings may be password
restricted. Settings Level 2 default password is 0101.
Tap the USER tab on the secondary menu navigation bar to display the USER
screen (see Figure 53). Tap the INFORMATION or ABOUT button to display
system information (see Figure 54
Tap the CONFIGURATION tab on the secondary menu navigation bar to display
the screen. Tap the function to be changed. Make and save the changes. Follow
screen prompts to accept or abort changes. For additional functions, tap the 2
button. See Figure 56 and Figure 57
Tap the STATISTICS tab on the main menu navigation bar to display a summary
of UPS statistics (see Figure 58).
Tap the desired statistic button to display the detailed statistic screen.
See paragraph 7.2.8 System Controls
UPS Operating Instructions
and Figure 55).
for configuration screens.
for details.
