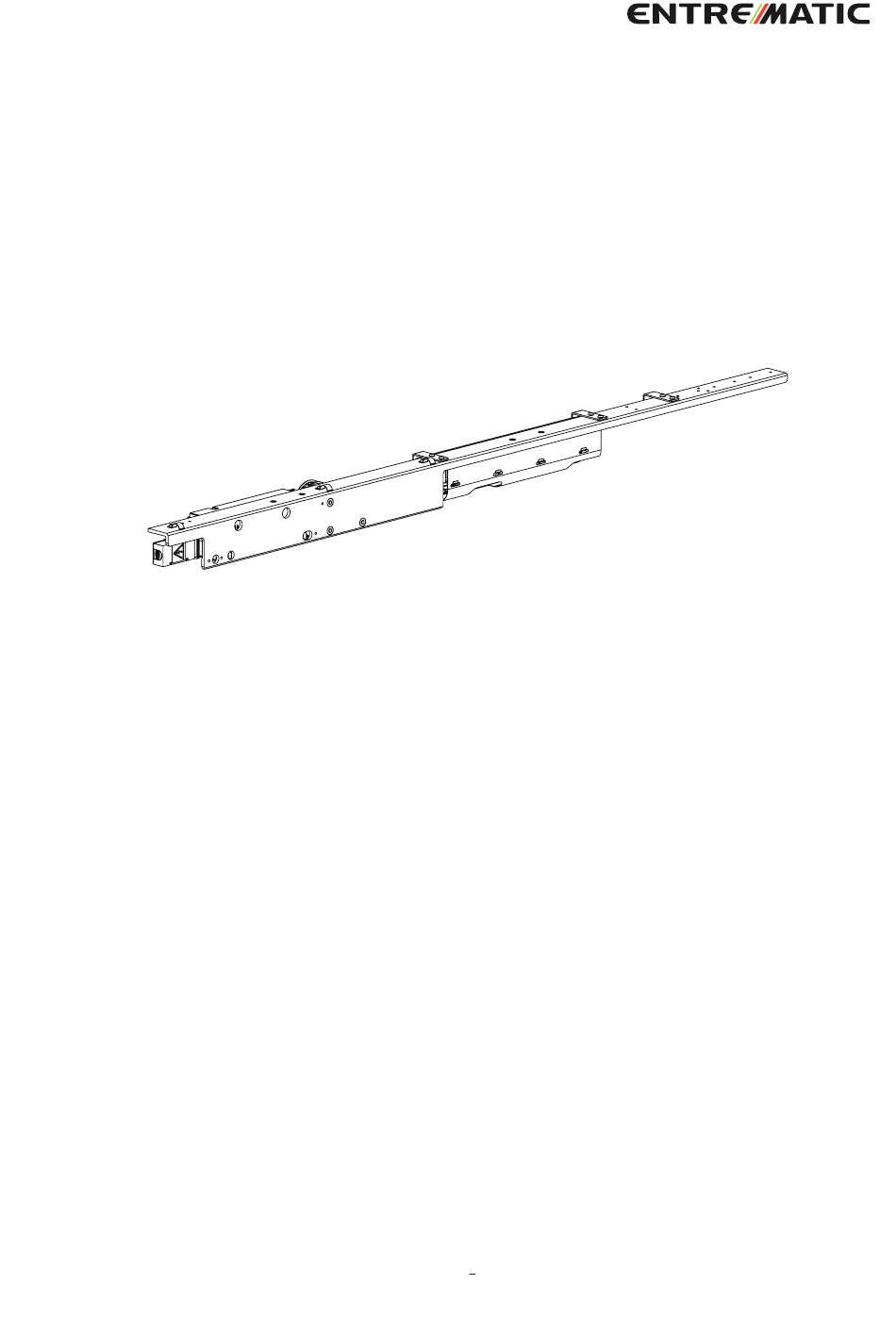

Sliding Door Operator
Entrematic PSL Retrofit Kit
Installation Manual
Original instructions
1018482-EMen-2.0 Issue 2019-07-13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSL Retrofit Kit and is the answer not in the manual?

Questions and answers

Related Manuals for Entrematic PSL Retrofit Kit

Summary of Contents for Entrematic PSL Retrofit Kit

  • Page 1 Sliding Door Operator Entrematic PSL Retrofit Kit Installation Manual Original instructions 1018482-EMen-2.0 Issue 2019-07-13...
  • Page 2 © All rights in and to this material are the sole property of Entrematic Group AB. Copying, scanning, alterations or modifications are expressly forbidden without the prior written consent of Entrematic Group AB. Rights reserved for changes without prior notice.

  • Page 3: Table Of Contents

    CONTENTS - Original instructions Tools required ..................................Mechanical installation ................................ Entrematic PSL Retrofit Kit for universal bracket solutions .................... 2.1.1 Check the components and kits ..........................2.1.2 I/O board and the battery installation (option) ....................2.1.3 Fix the brackets to the backbone assembly ......................
  • Page 4 2.1.10.49 Ditec VALOR (escape route) ......................... 2.1.10.50 Ditec Bis O ..............................2.1.10.51 Ditec Bis V ..............................Entrematic PSL Retrofit Kit for TORMAX iMotion 2202 ....................2.2.1 Check the components .............................. 2.2.2 Preparing ..................................2.2.3 I/O board and the battery installation (option) ....................

  • Page 5: Tools Required

    1 Tools required Tools required • Allen key 6 mm with spherical tip • Torx (T10 and T20) • Phillips screw driver • Multi/Wire cutter • Spanner 10mm • Tape measuring tool 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 6: Mechanical Installation

    2 Mechanical installation Mechanical installation Entrematic PSL Retrofit Kit for universal bracket solutions Note! Following are the common steps for connecting components, please refer to cross-view for each adapted door type. 2.1.1 Check the components and kits Check the components (Universal) Screw: ISO 14583 (MRT-TT) M6x10 FZB 8.8...
  • Page 7 2 Mechanical installation Check B1 kit Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Bracket 1 Mounting plate Square nut: M6 Nut: M6 Nut: ISO 4035 (ML6M) M6 FZB Screw: DIN 6921 (M6SF) M6x12 FZB 8.8 Screw: DIN 6921 (M6SF) M6x14 FZB 8.8 Screw: DIN 6921 (M6SF) M6x16 FZB 8.8 Screw: ISO 14583 (MRT-TT) M6x16 FZB 8.8 Screw: ISO 14583 (MRT-TT) M6x20 FZB 8.8...
  • Page 8 2 Mechanical installation Check B2 kit Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Bracket 1 Mounting plate Screw: DIN 6921 (M6SF) M6x12 FZB 8.8 Screw: DIN 6921 (M6SF) M6x14 FZB 8.8 Screw: DIN 6921 (M6SF) M6x16 FZB 8.8 Screw: ISO 14583 (MRT-TT) M6x16 FZB 8.8 Bracket 2 Issue 2019-07-13 1018482-EMen-2.0...
  • Page 9 2 Mechanical installation Check B3 kit Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Mounting plate Square nut: M6 Screw: DIN 6921 (M6SF) M6x14 FZB 8.8 Screw: ISO 14583 (MRT-TT) M6x16 FZB 8.8 Screw: ISO 14583 (MRT-TT) M6x35 FZB 8.8 Bracket 3 Spacer block Screw: DIN 6921 (M6SF) M6x10 FZB 8.8 1018482-EMen-2.0...
  • Page 10 2 Mechanical installation Check B4 kit Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Bracket 1 Screw: DIN 6921 (M6SF) M6x12 FZB 8.8 Screw: DIN 6921 (M6SF) M6x14 FZB 8.8 Screw: ISO 14583 (MRT-TT) M6x16 FZB 8.8 Screw: ISO 14583 (MRT-TT) M6x20 FZB 8.8 Screw: DIN 6921 (M6SF) M6x10 FZB 8.8 Bracket 4 Bracket 5...
  • Page 11 2 Mechanical installation Check belt lock fixing bracket kit 1 Screw: ISO 14583 (MRT-TT) M6x10 FZB 8.8 Screw: DIN 6921 (M6SF) M6x8 FZB 8.8 Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Mounting plate Square nut: M6 Nut: ISO 4035 (ML6M) M6 FZB Screw: DIN 6921 (M6SF) M6x12 FZB 8.8 Screw: DIN 6921 (M6SF) M6x14 FZB 8.8 Screw: DIN 6921 (M6SF) M6x16 FZB 8.8...
  • Page 12 2 Mechanical installation Check belt lock fixing bracket kit 2 Screw: ISO 14583 (MRT-TT) M6x10 FZB 8.8 Screw: DIN 6921 (M6SF) M6x8 FZB 8.8 Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Screw: DIN 6921 (M6SF) M6x14 FZB 8.8 Screw: DIN 6921 (M6SF) M6x16 FZB 8.8 Bracket 2 Screw: DIN 6921 (M6SF) M6x10 FZB 8.8 Bracket 4...
  • Page 13 2 Mechanical installation Nut: M5 Screw: ISO 14583 (MRT) M5x10 FZB 8.8 Screw: ISO 7046 (MFTS) M3x5 FZB 8.8 Belt guide Fixing bracket (belt lock) TORMAX iMotion 2202 Screw: DIN 6921 (M6SF) M6x10 FZB 8.8 Square nut: M6 Fixing bracket (belt lock) GEZE Slimdrive 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 14: I/O Board And The Battery Installation (Option)

    2 Mechanical installation 2.1.2 I/O board and the battery installation (option) Note! I/O board must be selected when bi-stable. Fix the I/O board (7) and the battery (8) to the backbone assembly (12) with the screws (9) and (10). I/O board Battery Screw: ISO 14583 (MRT) M4x6 Screw: ISO 14583 (MRT-TT) M4x60...
  • Page 15 2 Mechanical installation a How to install the mounting plate. Please refer to the dimension on the surface of plate (27) firstly. Mounting plate 1018482-EMen-2.0 Issue 2019-07-13...
  • Page 16 2 Mechanical installation b Assemble the mounting plate (27) and mounting bracket (28) with the washers (14) and screws (4). Screw: ISO 14583 (MRT-TT) M6x10 FZB 8.8 Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Mounting plate Mounting bracket c Fix two screws (11) to the backbone assembly (12), don't tighten the screws (11). Screw: DIN 6921 (M6SF) M6x8 FZB 8.8 Backbone assembly Issue 2019-07-13...
  • Page 17 2 Mechanical installation d Fix the brackets to the backbone assembly (12), then tighten the screws (11) with a torque of 8 - 10 Nm. Screw: DIN 6921 (M6SF) M6x8 FZB 8.8 Backbone assembly 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 18: Fix The Brackets To The Tension Wheel

    2 Mechanical installation 2.1.4 Fix the brackets to the tension wheel Fix the brackets to the tension wheel assembly (15) in the same way as 2.1.3 Screw: DIN 6921 (M6SF) M6x8 FZB 8.8 Tension wheel assembly 2.1.5 Fix the brackets to the belt lock (option) Fix the brackets to the belt lock (39) in the same way as 2.1.3.

  • Page 19: Fix The Transmission Bracket To The Connecting Bracket

    2 Mechanical installation 2.1.6 Fix the transmission bracket to the connecting bracket a Fix the transmission bracket (26) to the connecting bracket (24) with the screws (4) and washers (14). Screw: ISO 14583 (MRT-TT) M6x10 FZB 8.8 Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Connecting bracket Transmission bracket 2.1.7...

  • Page 20: General Rules Of The Installation

    2 Mechanical installation 2.1.8 General rules of the installation Position of the belt connecting to the transmission brackets. Bi-parting opening The transmission bracket (16) on the left door leaf shall be connected to the upper belt. The transmission bracket (16) on the right door leaf shall be connected to the lower belt. Transmission bracket Single left opening The transmission bracket (16) shall be connected to the upper belt.

  • Page 21: List Of The Adapted Door Types

    2 Mechanical installation 2.1.9 List of the adapted door types Item Operator Brand&Type Page Bracket kit Belt lock fixing bracket kit ATS CLIXMASTER ATS TSF 2100 Baumgartner Al-Profil Baumgartner steel DORMA ES 50 DORMA ES 55/60 DORMA ES 70 DORMA ES 90/100 DORMA ES 200 ELDEBE GSX Faiveley 6...
  • Page 22 2 Mechanical installation Item Operator Brand&Type Page Bracket kit Belt lock fixing bracket kit Record STA19 Record STA20 1019399 Record STA21 Tormax TMP Tormax TX/TM/TMX 1019396 Tormax TEP/TXP Waldoor EC Waldoor UC 1019399 Waldoor UWS 800 1019396 Waldoor UWS 2400 1019399 Ditec VALOR (escape route) 1019396...

  • Page 23: Adapted Door Types

    2 Mechanical installation 2.1.10 Adapted door types Note! Original nuts and bolts can be reused. ATS CLIXMASTER Connecting bracket Bracket 1 Mounting plate Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 24: Ats Tsf 2100

    2 Mechanical installation ATS TSF 2100 Connecting bracket Bracket 1 Mounting plate Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 25: Baumgartner Al-Profil

    2 Mechanical installation Baumgartner Al-Profil Connecting bracket Bracket 1 Mounting plate Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 26: Baumgartner Steel

    2 Mechanical installation Baumgartner steel Connecting bracket Mounting bracket Bracket 2 Issue 2019-07-13 1018482-EMen-2.0...

  • Page 27: Dorma Es 50

    2 Mechanical installation DORMA ES 50 Connecting bracket Bracket 1 Mounting plate Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 28: Dorma Es 55/60

    2 Mechanical installation DORMA ES 55/60 Connecting bracket Bracket 1 Mounting plate Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 29: Dorma Es 70

    2 Mechanical installation DORMA ES 70 Connecting bracket Mounting plate Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 30: Dorma Es 90/100

    2 Mechanical installation DORMA ES 90/100 Connecting bracket Mounting plate Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 31: Dorma Es 200

    2 Mechanical installation DORMA ES 200 Connecting bracket Mounting plate Mounting bracket Bracket 3 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 32: Eldebe Gsx

    2 Mechanical installation ELDEBE GSX Connecting bracket Mounting plate Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 33: Emd

    2 Mechanical installation Connecting bracket Mounting plate Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 34: Emc

    2 Mechanical installation Connecting bracket Mounting plate Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 35: Faiveley 6

    2 Mechanical installation Faiveley 6 Connecting bracket Bracket 1 Mounting plate Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 36: Faiveley 17

    2 Mechanical installation Faiveley 12 Connecting bracket Bracket 1 Mounting plate Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...
  • Page 37 2 Mechanical installation Faiveley 17 Connecting bracket Bracket 1 Mounting plate Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 38: Geze Ecdrive

    2 Mechanical installation GEZE ECdrive Connecting bracket Bracket 1 Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 39: Geze Tsa 340

    2 Mechanical installation GEZE TSA 340 Connecting bracket Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 40: Geze Tsa 350 N/350 W

    2 Mechanical installation GEZE TSA 350 N/350 W Connecting bracket Bracket 1 Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 41: Geze Tsa 360

    2 Mechanical installation GEZE TSA 360 Connecting bracket Bracket 1 Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 42: Geze Tsa 450

    2 Mechanical installation GEZE TSA 450 Connecting bracket Bracket 1 Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 43: Gilgen Slk/Slg

    2 Mechanical installation Gilgen SLK/SLG Connecting bracket Bracket 1 Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 44: Gilgen Slm/Slp

    2 Mechanical installation Gilgen SLM/SLP Connecting bracket Bracket 1 Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 45: Horton Series 2001

    2 Mechanical installation HORTON Series 2001 Connecting bracket Bracket 1 Mounting plate Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 46: Manusa Pa 80

    2 Mechanical installation Manusa PA 80 Connecting bracket Bracket 1 Mounting plate Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 47: Manusa Stk

    2 Mechanical installation Manusa STK Connecting bracket Bracket 1 Mounting plate Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 48: Manusa Visio

    2 Mechanical installation Manusa Visio Connecting bracket Bracket 4 Issue 2019-07-13 1018482-EMen-2.0...

  • Page 49: Portalp 2000B

    2 Mechanical installation Portalp 2000B Bracket Backbone assembly Screw: ISO 4014 (M6S) M6x8 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 50: Porte Automatiche Gts-L/-P

    2 Mechanical installation Porte Automatiche GTS-L/-P Connecting bracket Bracket 1 Mounting plate Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 51: Porte Automatiche Gtv

    2 Mechanical installation Porte Automatiche GTV Connecting bracket Mounting plate Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 52: Record Sta7

    2 Mechanical installation Record STA7 Connecting bracket Mounting bracket Bracket 2 Issue 2019-07-13 1018482-EMen-2.0...

  • Page 53: Record Sta8

    2 Mechanical installation Record STA8 Connecting bracket Bracket 1 Mounting bracket Bracket 2 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 54: Record Sta9/Sta10

    2 Mechanical installation Record STA9/STA10 Connecting bracket Bracket 1 Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 55: Record Sta11

    2 Mechanical installation Record STA11 Connecting bracket Bracket 1 Mounting plate Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 56: Record Sta12/Sta14 Steel

    2 Mechanical installation Record STA12/STA14 Steel Connecting bracket Bracket 1 Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 57: Record Sta12/Sta14 Al

    2 Mechanical installation Record STA12/STA14 AL Connecting bracket Bracket 1 Bracket 4 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 58: Record Sta13

    2 Mechanical installation Record STA13 Connecting bracket Bracket 1 Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 59: Record Sta15

    2 Mechanical installation Record STA15 Connecting bracket Bracket 1 Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 60: Record Sta16/17

    2 Mechanical installation Record STA16/17 Note! * Cut the original component holder beam to smaller pieces. Bi-parting 2/3 of the original beam for backbone assembly. 1/6 of the original beam for tension wheel. 1/6 of the original beam for belt lock. Left opening 2/3 of the original beam for backbone assembly.

  • Page 61: Record Sta19

    2 Mechanical installation Record STA19 Connecting bracket Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 62: Record Sta20

    2 Mechanical installation Record STA20 Connecting bracket Bracket 4 Issue 2019-07-13 1018482-EMen-2.0...

  • Page 63: Record Sta21

    2 Mechanical installation Record STA21 Connecting bracket Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 64: Tormax Tmp

    2 Mechanical installation Tormax TMP Connecting bracket Bracket 1 Mounting plate Mounting bracket Issue 2019-07-13 1018482-EMen-2.0...

  • Page 65: Tormax Tx/Tm/Tmx

    2 Mechanical installation Tormax TX/TM/TMX Connecting bracket Bracket 1 Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 66: Tormax Tep/Txp

    2 Mechanical installation Tormax TEP/TXP Bracket Backbone assembly Screw: ISO 4014 (M6S) M6x8 Issue 2019-07-13 1018482-EMen-2.0...

  • Page 67: Waldoor Ec

    2 Mechanical installation Waldoor EC Connecting bracket Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 68: Waldoor Uc

    2 Mechanical installation Waldoor UC Bracket Backbone assembly Screw: ISO 4014 (M6S) M6x8 Issue 2019-07-13 1018482-EMen-2.0...

  • Page 69: Waldoor Uws 800

    2 Mechanical installation Waldoor UWS 800 Connecting bracket Bracket 1 Mounting plate Mounting bracket 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 70: Waldoor Uws 2400

    2 Mechanical installation Waldoor UWS 2400 Connecting bracket Bracket 1 Mounting bracket Bracket 5 Issue 2019-07-13 1018482-EMen-2.0...

  • Page 71: Ditec Valor (Escape Route)

    2 Mechanical installation Ditec VALOR (escape route) Connecting bracket Mounting bracket Bracket 5 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 72: Ditec Bis O

    2 Mechanical installation Ditec Bis O Connecting bracket Mounting plate Mounting bracket Bracket 2 Issue 2019-07-13 1018482-EMen-2.0...

  • Page 73: Ditec Bis V

    2 Mechanical installation Ditec Bis V Connecting bracket Mounting plate Mounting bracket Bracket 2 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 74: Entrematic Psl Retrofit Kit For Tormax Imotion 2202

    2 Mechanical installation Entrematic PSL Retrofit Kit for TORMAX iMotion 2202 2.2.1 Check the components Check the components in the package as following. Drive unit kit Main control assembly Tension wheel assembly Tooth belt Belt clamp Nut: DIN 985 M6 (M6M)

  • Page 75: Preparing

    2 Mechanical installation 2.2.2 Preparing a Dismount the original drive system, following components should be retained: door carriers (1), beam (2), cover set (3), door stops (4), cable holders (5), nuts (11) and screws (12). Note! If there are not enough nuts (11) and screws (12), use the nuts (35) and the screws (36) to replace.

  • Page 76: I/O Board And The Battery Installation (Option)

    2 Mechanical installation 2.2.3 I/O board and the battery installation (option) Note! I/O board must be selected when bi-stable. a Fix the I/O board (7) and the battery (8) to the main control assembly (14) with the screws (9) and (10). I/O board Battery Screw: ISO 14583 (MRT) M4x6...

  • Page 77: Fix The Nuts And Screws On The Drive Unit Kit And The Main Control Assembly

    2 Mechanical installation 2.2.4 Fix the nuts and screws on the drive unit kit and the main control assembly a Take off the drive unit from the Backbone assembly (40), then fix it onto drive unit plate (57) with the original screws and washeres. Backbone assembly Drive unit plate 1018482-EMen-2.0...
  • Page 78 2 Mechanical installation b Take off the PSU from the Backbone assembly (40), then fix it onto drive unit plate (57) with the original screws and other components. Backbone assembly Drive unit plate Issue 2019-07-13 1018482-EMen-2.0...
  • Page 79 2 Mechanical installation c Take off the MCU from the Backbone assembly (40), then fix it onto electronic mounting plate (58) with the original screws and washeres. Backbone assembly Electronic mounting plate 1018482-EMen-2.0 Issue 2019-07-13...
  • Page 80 2 Mechanical installation d Fix the nuts (11) to the drive unit kit (13) and main control assembly (14) with screws (12), but do not tighten the screws (12). Nut: M5 Screw: M5x10 Drive unit kit (HD or DD) Main control assembly Issue 2019-07-13 1018482-EMen-2.0...

  • Page 81: Fix The Drive Unit Kit And The Main Control Assembly

    2 Mechanical installation 2.2.5 Fix the drive unit kit and the main control assembly a Lift the drive unit kit (13) and main control assembly (14) to the beam (2), Then tighten the screws (12) with a torque of 6 Nm. Beam Nut: M5 Screw: M5x10...

  • Page 82: Fix The Tension Wheel Assembly

    2 Mechanical installation 2.2.6 Fix the tension wheel assembly a Fix the nuts (11) to the tension wheel assembly (15) with screws (12), but do not tighten the screws (12). Lift the tension wheel assembly (15) to the beam (2), do not tighten the screws (12) fully, so it shall be able to slide along the beam (2).

  • Page 83: Fix The Transmission Brackets

    2 Mechanical installation 2.2.7 Fix the transmission brackets a Unscrew the existing screws (24), fix the transmission brackets (27) and the universal transmis- sion brackets (28) to the door carriers (1) with the screws (24) and (26). Note! The door leaves should be holded firmly when unscrew the the existing screws (24) on the door carriers (1).

  • Page 84: Placement Of The Transmission Brackets

    2 Mechanical installation 2.2.8 Placement of the transmission brackets Bi-parting opening The transmission bracket (16) on the left door leaf shall be connected to the inner belt. The transmission bracket (16) on the right door leaf shall be connected to the outer belt. Transmission bracket Single left opening The transmission bracket (16) shall be connected to the inner belt.

  • Page 85: Attachment Of The Tooth Belt

    2 Mechanical installation 2.2.9 Attachment of the tooth belt a Cut the tooth belt (18) to the right length if needed. Route the tooth belt (18) around the drive unit pulley (19) and around the tension wheel assembly (15). b For bi-parting doors the belt ends are joined with the belt clamp (20) in the outer part of the tooth belt (18).

  • Page 86: Checking And Adjusting The Belt Tension

    2 Mechanical installation 2.2.10 Checking and adjusting the belt tension a Loosen the fixing screw (32) without removing it. b Screw the adjustment screw (33) to its outmost position. c Tension the tooth belt (18) by pulling the tension wheel assembly (15) by hand. Tighten the screws (12) with a torque of 6 Nm.

  • Page 87: Bi-Parting Operators

    2 Mechanical installation 2.2.11 Bi-parting operators a Put doors in fully closed position. Make sure that the doors trailing edge is align with the side light. b Click the belt clamp (20) into position in the inner transmission bracket (16). c Check door panels for proper centering in the fully closed and opened positions.

  • Page 88: Install The Belt Lock (Option)

    2 Mechanical installation 2.2.13 Install the belt lock (option) a Take down the screws (29) and the belt guide (30). b Fix the nuts (11) to the belt lock (21) with screws (12), but do not tighten the screws (12). Lift the tooth belt lock (21) to the beam (2), then tighten the screws (12) with a torque of 6 c Fix the belt guide (30) to the belt lock (21) with the screws (29).

  • Page 89: Entrematic Psl Retrofit Kit For Geze Slimdrive

    2 Mechanical installation Entrematic PSL Retrofit Kit for GEZE Slimdrive 2.3.1 Check the components Check the components in the package as following. Screw: ISO 14583 (MRT) M4x6 Screw: ISO 7046 (MFX) M6x10 Screw: ISO 4014 (M6S) M6x8 Screw: DIN 6921 (M6SF) M6x10...

  • Page 90: Preparing

    2 Mechanical installation 2.3.2 Preparing a Dismount the original drive system, following components should be retained: door carriers (1), beam (2), cover set (3), square nuts (4), door stops (5) and extension beams (6). Note! If there are not enough square nuts (4), use the nuts (37) to replace. Door carrier Beam Cover set...

  • Page 91: Exchange The Extension Beams

    2 Mechanical installation 2.3.3 Exchange the extension beams a Exchange the extension beams (6). Extension beam 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 92: Fix The Psu (Power Supply Unit) And Drive Unit Kit

    2 Mechanical installation 2.3.4 Fix the PSU (power supply unit) and drive unit kit a Take off the PSU from the Backbone assembly (40), then fix it onto PSU bracket (41) with the original screws and washeres. Backbone assembly PSU bracket Issue 2019-07-13 1018482-EMen-2.0...
  • Page 93 2 Mechanical installation b Take off the drive unit from the Backbone assembly (40), then fix it onto drive motor mounting plate (42) with the original screws, washeres and other components. Backbone assembly Drive motor mounting plate 1018482-EMen-2.0 Issue 2019-07-13...
  • Page 94 2 Mechanical installation c Fix the PSU (14) and the drive unit kit (13) onto the extension beam (6) with screws (12). Then tighten the screws (12) with a torque of 10 Nm. Square nut: M6 Extension beam Screw: DIN 6921 (M6SF) M6x10 Drive unit kit Issue 2019-07-13 1018482-EMen-2.0...

  • Page 95: Fix The Mounting Plate And Mcu (Control Unit)

    2 Mechanical installation 2.3.5 Fix the mounting plate and MCU (control unit) a Take off the MCU (26) from the Backbone assembly (40). b Fix the mounting plate (24) to the extension beam (6) with screws (25), then fix the MCU (26) onto the mounting plate (24) with the original screws (9) and washeres.

  • Page 96: I/O Board And The Battery Installation (Option)

    2 Mechanical installation 2.3.6 I/O board and the battery installation (option) Note! I/O board must be selected when bi-stable. a Fix the I/O board (7) and the battery (8) to the mounting plate (24) with screws (9) and (10). Fold the flange I/O board (KS902MP) Battery (KS902BAT2) Screw: ISO 14583 (MRT) M4x6...

  • Page 97: Fix The Tension Wheel Assembly

    2 Mechanical installation 2.3.7 Fix the tension wheel assembly a Fix the tension wheel assembly (15) to the extension beam (6) with the screws (32), do not tighten the screws (32) fully, so it shall be able to slide along the extension beam (6). b The position of the tension wheel assembly (15) should be as close as possible to the drive unit, but make sure that the tension wheel assembly (15) will not interfere with the door carrier when the door is fully opened.

  • Page 98: Fix The Transmission Brackets

    2 Mechanical installation 2.3.8 Fix the transmission brackets a Unscrew the existing screws (29), fix the transmission brackets (27) and the universal transmis- sion brackets (28) to the door carriers (1) with the existing screws (29) and the screws (11). Note! If there are not enough existing screws (29), use the screws (38) to replace.

  • Page 99: Placement Of The Transmission Brackets

    2 Mechanical installation 2.3.9 Placement of the transmission brackets Bi-parting opening The transmission bracket (16) on the left door leaf shall be connected to the upper belt. The transmission bracket (16) on the right door leaf shall be connected to the lower belt. Transmission bracket Single left opening The transmission bracket (16) shall be connected to the upper belt.

  • Page 100: Attachment Of The Tooth Belt

    2 Mechanical installation 2.3.10 Attachment of the tooth belt a Cut the tooth belt (18) to the right length if needed. Route the tooth belt (18) around the drive unit pulley (19) and around the tension wheel assembly (15). b For bi-parting doors the belt ends are joined with the belt clamp (20) in the lower part of the tooth belt (18).

  • Page 101: Checking And Adjusting The Belt Tension

    2 Mechanical installation 2.3.11 Checking and adjusting the belt tension a Loosen the fixing screw (34) without removing it. b Screw the adjustment screw (35) to its outmost position. c Tension the tooth belt (18) by pulling the tension wheel assembly (15) by hand. Tighten the screws (32) with a torque of 10 Nm.

  • Page 102: Bi-Parting Operators

    2 Mechanical installation 2.3.12 Bi-parting operators a Put doors in fully closed position. Make sure that the doors trailing edge is align with the side light. b Click the belt clamp (20) into the transmission bracket (16) on upper. c Check door panels for proper centering in the fully closed and opened positions. Tension wheel assembly Transmission bracket Tooth belt...

  • Page 103: Install The Belt Lock (Option)

    2 Mechanical installation 2.3.14 Install the belt lock (option) a Fix the belt lock (21) to the extension beam (6) with screws (12). Then tighten the screws (12) with a torque of 10 Nm. Note! * Cut the extension beam to smaller pieces. Bi-parting 2/3 of the extension beam for backbone assembly.

  • Page 104: Fix The Cable Bracket

    2 Mechanical installation 2.3.15 Fix the cable bracket a Fix the cable bracket (30) to the beam (2) with screws (31). Beam Cable bracket Screw: ISO 14585 ST 4.2x9.5 Issue 2019-07-13 1018482-EMen-2.0...

  • Page 105: Entrematic Psl Retrofit Kit For Entrematic Emsl

    2 Mechanical installation Entrematic PSL Retrofit Kit for Entrematic EMSL 2.4.1 Check the components Check the components in the package as following. Backbone assembly Tension wheel assembly Tooth belt Belt clamp Screw: DIN 6921 (M6SF) M6x14 Screw: ISO 10642 (MF6S) M6x8...

  • Page 106: Preparing

    2 Mechanical installation 2.4.2 Preparing a Dismount the original drive system, following components should be retained: door carriers (1), beam (2), cover set (3), door stops (4), cable holders (5), connection box (6), track (35) and lock (36). Door carrier Beam Cover set Door stop...

  • Page 107: Fix The Backbone Assembly

    2 Mechanical installation 2.4.3 Fix the backbone assembly a Fix the backbone assembly (12) to the beam (2) with the screws (9). Then tighten the screws (9) with a torque of 3 Nm. Beam Screw: ISO 7045 (MRT-TT) M4x16 Backbone assembly 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 108: Fix The I/O Board And The Battery (Option)

    2 Mechanical installation 2.4.4 Fix the I/O board and the battery (option) Note! I/O board must be selected when bi-stable. a Fix the I/O board (7) and the battery (8) to the beam (2) with the screws (9). Issue 2019-07-13 1018482-EMen-2.0...
  • Page 109 2 Mechanical installation Beam I/O board Battery Screw: ISO 7045 (MRT-TT) M4x16 1018482-EMen-2.0 Issue 2019-07-13...

  • Page 110: Fix The Tension Wheel Assembly

    2 Mechanical installation 2.4.5 Fix the tension wheel assembly a Fix the tension wheel assembly (15) to the beam (2) with the screws (9), do not tighten the screws (9) fully, so that it shall be able to slide along the beam (2). b The position of the tension wheel assembly (15) should be as close as possible to the drive unit, but make sure that the tension wheel assembly (15) will not interfere with the door carrier when the door is fully opened.

  • Page 111: Fix The Connector Brackets

    2 Mechanical installation 2.4.6 Fix the connector brackets a Dismount the existing screws (10) and the existing washers (11), and fix the reinforcement plates (29) to the door carriers (1) with screws (24). b Assemble the connector brackets (27) and the belt holder brackets (28) with the screws (26). Fix them to to the door carriers (1) with screws (10) and (25).

  • Page 112: Placement Of The Transmission Brackets

    2 Mechanical installation 2.4.7 Placement of the transmission brackets Bi-parting opening The transmission bracket (16) on the left door leaf shall be connected to the inner belt. The transmission bracket (16) on the right door leaf shall be connected to the outer belt. Transmission bracket Single left opening The transmission bracket (16) shall be connected to the inner belt.

  • Page 113: Attachment Of The Tooth Belt

    2 Mechanical installation 2.4.8 Attachment of the tooth belt a Cut the tooth belt (18) to the right length if needed. Route the tooth belt (18) around the drive unit pulley (19) and around the tension wheel assembly (15). b For bi-parting doors the belt ends are joined with the belt clamp (20) in the outer part of the tooth belt (18).

  • Page 114: Checking And Adjusting The Belt Tension

    2 Mechanical installation 2.4.9 Checking and adjusting the belt tension a Loosen the fixing screw (32) without removing it. b Screw the adjustment screw (33) to its outmost position. c Tension the tooth belt by pulling the tension wheel assembly (15) by hand. Tighten the tension wheel assembly to the beam with a torque of 3 Nm.

  • Page 115: Bi-Parting Operators

    2 Mechanical installation 2.4.10 Bi-parting operators a Put doors in fully closed position. Make sure that the doors trailing edge is align with the side light. b Click the belt clamp (20) into position in the inner transmission bracket (16). c Check door panels for proper centering in the fully closed and opened positions.

  • Page 116: Entrematic Psl Retrofit Kit For Entrematic Emsl-T

    2 Mechanical installation Entrematic PSL Retrofit Kit for Entrematic EMSL-T 2.5.1 Check the components Check the components in the package as following. Backbone assembly Tension wheel assembly Tooth belt Belt clamp Screw: DIN 6921 (M6SF) M6x14 Screw: ISO 10642 (MF6S) M6x8...

  • Page 117: Preparing

    2 Mechanical installation 2.5.2 Preparing a Dismount the original drive system, following components should be retained: door carriers (1), beam (2), cover set (3), door stops (4), cable holders (5), connection box (6), track (35), lock (36) and support beam (37). Door carrier Beam Cover set...

  • Page 118: Fix The Backbone Assembly

    2 Mechanical installation 2.5.3 Fix the backbone assembly a Fix the backbone assembly (12) to the beam (2) with the screws (9). Then tighten the screws (9) with a torque of 3 Nm. Beam Screw: ISO 7045 (MRT-TT) M4x16 Backbone assembly Issue 2019-07-13 1018482-EMen-2.0...

  • Page 119: Fix The I/O Board And The Battery (Option)

    2 Mechanical installation 2.5.4 Fix the I/O board and the battery (option) Note! I/O board must be selected when bi-stable. a Fix the I/O board (7) and the battery (8) to the beam (2) with the screws (9). Beam I/O board Battery Screw: ISO 7045 (MRT-TT) M4x16 1018482-EMen-2.0...

  • Page 120: Fix The Tension Wheel Assembly

    2 Mechanical installation 2.5.5 Fix the tension wheel assembly a Fix the tension wheel assembly (15) to the beam (2) with the screws (9), do not tighten the screws (9) fully, so that it shall be able to slide along the beam (2). b The position of the tension wheel assembly (15) should be as close as possible to the drive unit, but make sure that the tension wheel assembly (15) will not interfere with the door carrier when the door is fully opened.

  • Page 121: Fix The Connector Brackets (For Fast Door Leaves)

    2 Mechanical installation 2.5.6 Fix the connector brackets (for fast door leaves) a Dismount the existing screws (10) and the existing washers (11), and fix the reinforcement plates (29) to the door carriers (1) with screws (24). b Assemble the connector brackets (27) and the belt holder brackets (28) with the screws (26). Fix them to to the door carriers (1) with screws (10), washers (11) and screws (25).

  • Page 122: Placement Of The Transmission Brackets (For Fast Door Leaves)

    2 Mechanical installation 2.5.7 Placement of the transmission brackets (for fast door leaves) Bi-parting opening The transmission bracket (16) on the left door leaf shall be connected to the inner belt. The transmission bracket (16) on the right door leaf shall be connected to the outer belt. Transmission bracket Single left opening The transmission bracket (16) shall be connected to the inner belt.

  • Page 123: Attachment Of The Tooth Belt (For Fast Door Leaves)

    2 Mechanical installation 2.5.8 Attachment of the tooth belt (for fast door leaves) a Cut the tooth belt (18) to the right length if needed. Route the tooth belt (18) around the drive unit pulley (19) and around the tension wheel assembly (15). b For bi-parting doors the belt ends are joined with the belt clamp (20) in the outer part of the tooth belt (18).

  • Page 124: Checking And Adjusting The Belt Tension (For Fast Door Leaves)

    2 Mechanical installation 2.5.9 Checking and adjusting the belt tension (for fast door leaves) a Loosen the fixing screw (32) without removing it. b Screw the adjustment screw (33) to its outmost position. c Tension the tooth belt by pulling the tension wheel assembly (15) by hand. Tighten the tension wheel assembly to the beam with a torque of 3 Nm.

  • Page 125: Bi-Parting Operators (For Fast Door Leaves)

    2 Mechanical installation 2.5.10 Bi-parting operators (for fast door leaves) a Put doors in fully closed position. Make sure that the doors trailing edge is align with the side light. b Click the belt clamp (20) into position in the inner transmission bracket (16). c Check door panels for proper centering in the fully closed and opened positions.
  • Page 126 Entrematic Group AB, Lodjursgatan 10, SE-261 44 Landskrona, Sweden Tel: +46 10 47 48 300 www.entrematic.com • info.em@entrematic.com...

Table of Contents
