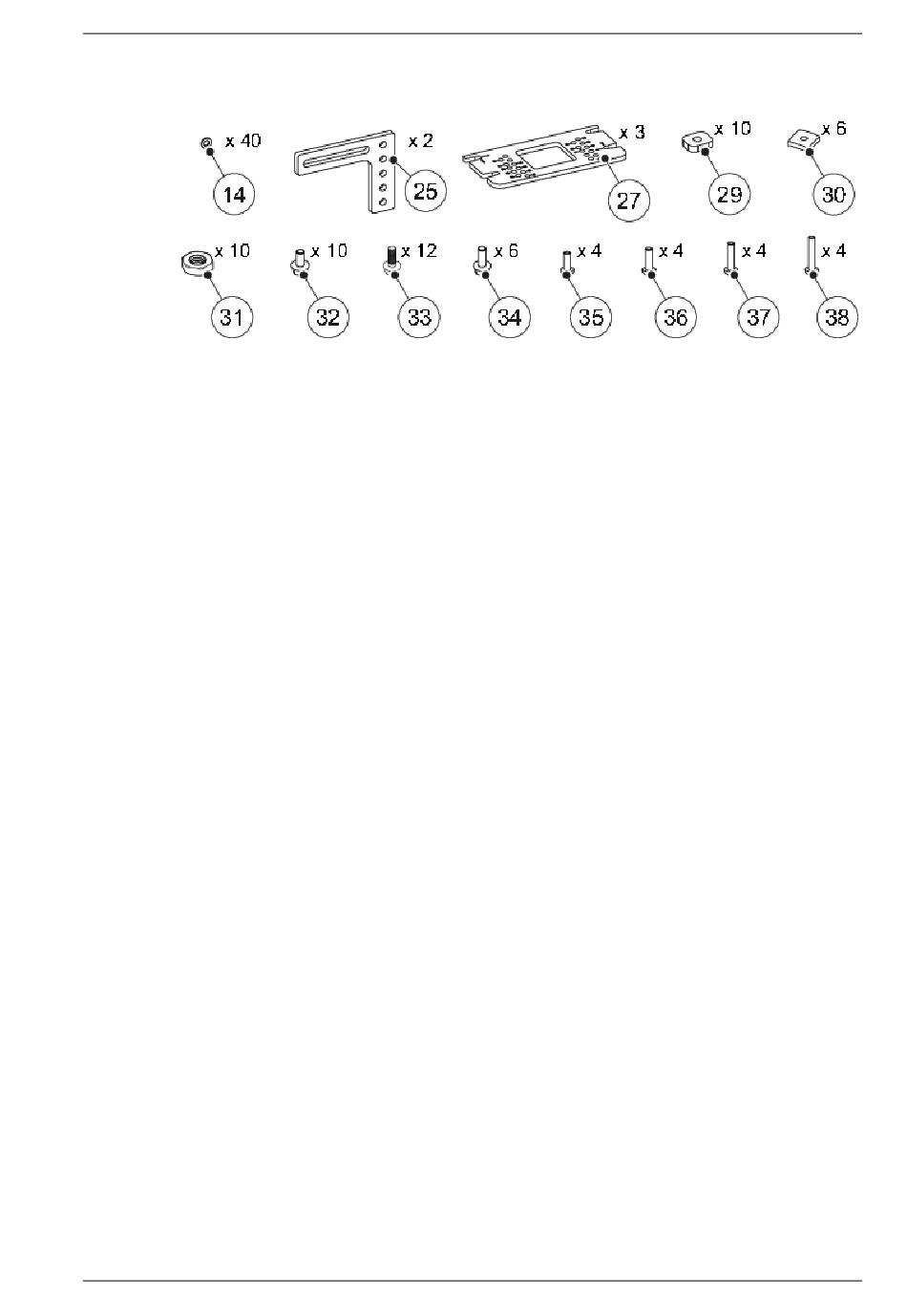

Check B1 kit
1018482-EMen-2.0
14
Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB
25
Bracket 1
27
Mounting plate
29
Square nut: M6
30
Nut: M6
31
Nut: ISO 4035 (ML6M) M6 FZB
32
Screw: DIN 6921 (M6SF) M6x12 FZB 8.8
33
Screw: DIN 6921 (M6SF) M6x14 FZB 8.8
34
Screw: DIN 6921 (M6SF) M6x16 FZB 8.8
35
Screw: ISO 14583 (MRT-TT) M6x16 FZB 8.8
36
Screw: ISO 14583 (MRT-TT) M6x20 FZB 8.8
37
Screw: ISO 14583 (MRT-TT) M6x25 FZB 8.8
38
Screw: ISO 14583 (MRT-TT) M6x35 FZB 8.8
Issue 2019-07-13
2 Mechanical installation
7
