2.5.8

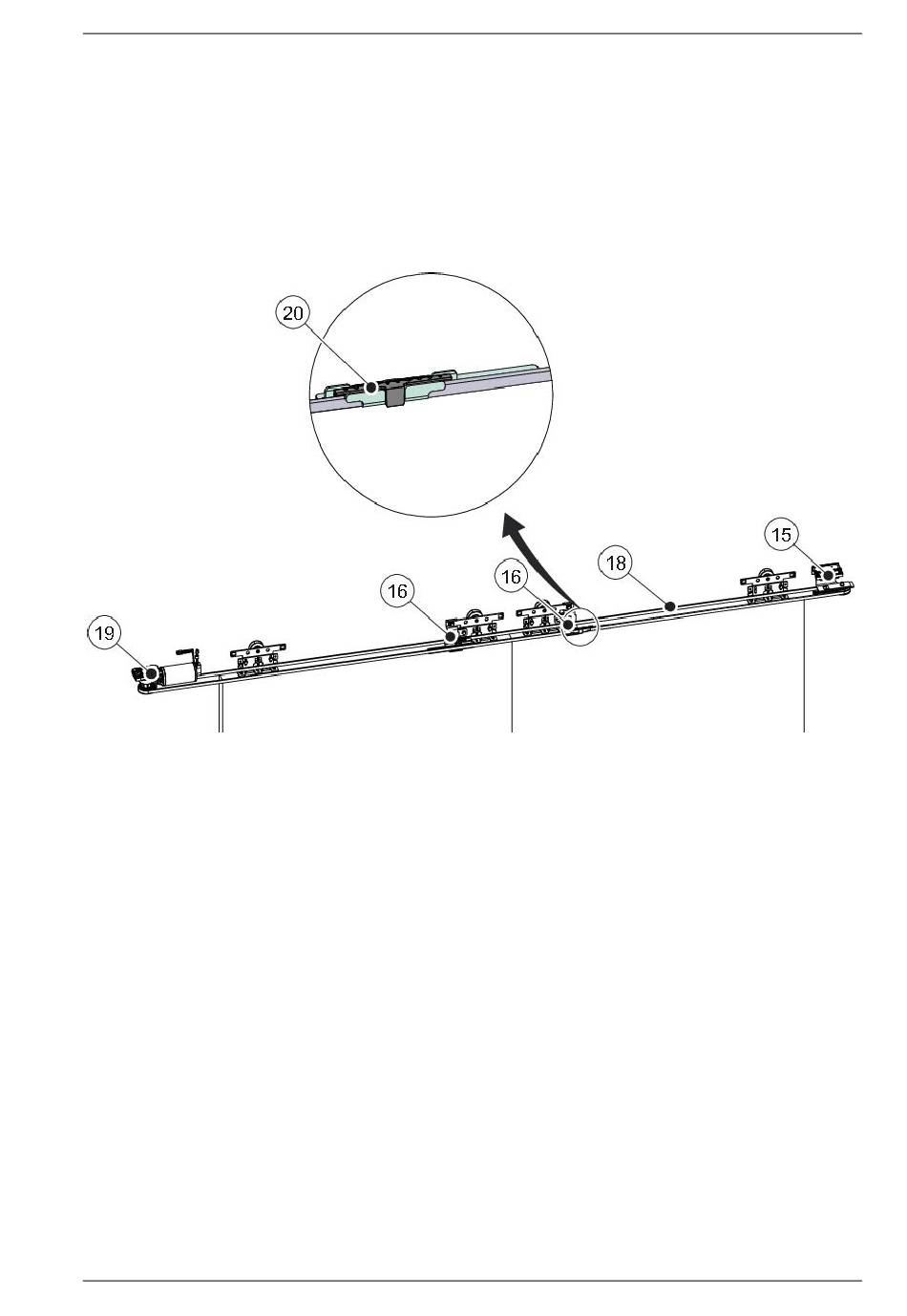

Attachment of the tooth belt (for fast door leaves)
a Cut the tooth belt (18) to the right length if needed. Route the tooth belt (18) around the drive
unit pulley (19) and around the tension wheel assembly (15).
b For bi-parting doors the belt ends are joined with the belt clamp (20) in the outer part of the
tooth belt (18).
c Click the belt clamp (20) into position.
Note! Do not adjust parameter P12!
1018482-EMen-2.0
15
Tension wheel assembly
16
Transmission bracket
18
Tooth belt
19
Drive unit pulley
20
Belt clamp
Issue 2019-07-13
2 Mechanical installation
123
