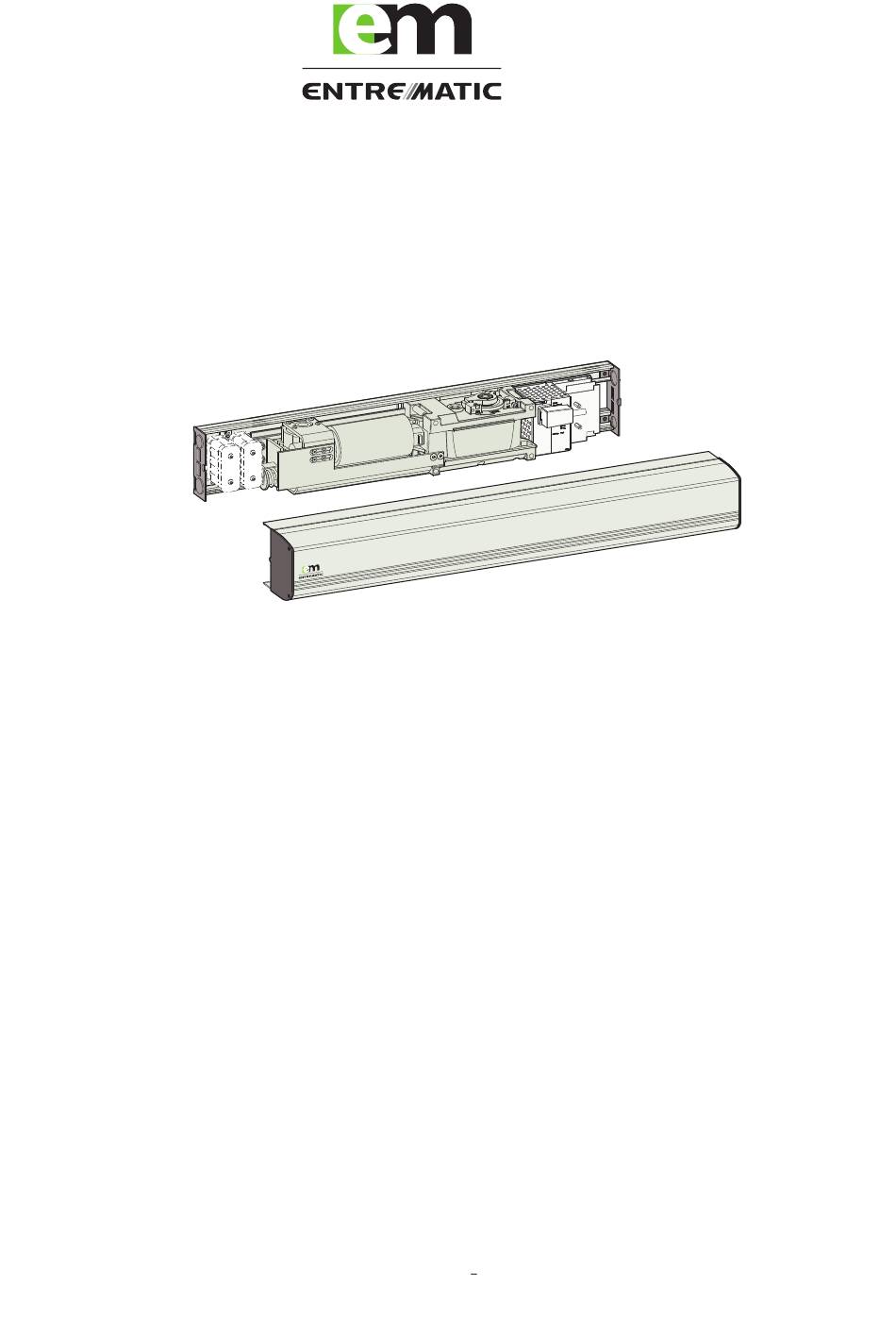

Swing Door Operator
EM SW EMO
ILL-01780
Installation and Service Manual
Original instructions
1005088-EMEI-11.0 Issue 2014-11-24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM SW EMO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Entrematic EM SW EMO

Summary of Contents for Entrematic EM SW EMO

  • Page 1 Swing Door Operator EM SW EMO ILL-01780 Installation and Service Manual Original instructions 1005088-EMEI-11.0 Issue 2014-11-24...
  • Page 2 © All rights in and to this material are the sole property of Entrematic Group AB. Copying, scanning, alterations or modifications are expressly forbidden without the prior written consent of Entrematic Group AB. Rights reserved for changes without prior notice.

  • Page 3: Table Of Contents

    Monitored safety sensors ............................5.5.4 Open door indication ..............................5.5.5 Error indication ................................Models ......................................EM SW EMO, standard cover (wall mounted) ........................Part identification & Accessories ............................Arm system, PUSH ..................................7.1.1 PUSH-arm extensions ..............................Arm system, PULL ...................................
  • Page 4 Pre-installation ..................................General tips/Safety concerns ..............................Operator/Door handing ................................Installation examples ..................................Fastening requirements ................................Tools required ....................................Installation on double doors ..............................Mechanical installation ................................ Operator with PUSH arm system .............................. Operator with PULL arm system ............................... Installation of operator with arm system ST ......................... Electrical connection ................................

  • Page 5: Revision

    1 Revision Revision The following pages have been revised: Page Revision 10.0 → 11.0 Added new part of permitted door weight and door width. Added new part of nurse and bed functionality. Updated measurment. Updated back plate and measurements. Updated back plate. Updated back plate and measurements.

  • Page 6: Instructions For Safe Operation

    2 Instructions for safe operation Instructions for safe operation • Failure to observe the information in this manual may result in personal injury or damage to equipment. • To reduce the risk of injury to persons - use this operator with single or double pedestrian swinging or folding doors only.

  • Page 7: Important Information

    The EM SW EMO is an automatic swing door operator developed to facilitate entrances to buildings and within buildings through swing doors. The EM SW EMO is a low-energy operator using a DC motor and a gear-reduction system to drive an arm system, which opens the door. It is to be installed indoors where it is suitable for almost all types of external and internal swing doors.

  • Page 8: Environmental Requirements

    3 Important information Environmental requirements Entrematic Group products are equipped with electronics and may also be equipped with batteries containing materials which are hazardous to the environment. Disconnect power before removing electronics and battery and make sure it is disposed of properly according to local regulations (how and where) as was done with the packaging material.

  • Page 9: Technical Specification

    Entrematic Group AB Address: Lodjursgatan 10, SE-261 44 Landskrona, Sweden Type: EM SW EMO Mains power supply: 100-240 V AC +10/-15%, 50/60 Hz Note! The mains power supply shall be installed with protection and an all-pole mains switch with isolating capability of Category III, at least 3 mm between contacts, shall be installed according to local regulations.

  • Page 10: Permitted Door Weight And Door Width

    4 Technical specification This product is to be installed internally. ILL-01607 Permitted door weight and door width PUSH arm PULL arm J=45 kgm² J=16 kgm² Door width (m) Issue 2014-11-24 1005088-EMEI-11.0...

  • Page 11: Classification

    4 Technical specification Classification Classification to DIN 18650-1 Digit 1 Digit 2 Digit 3 Digit 4 Digit 5 Digit 6 Digit 7 Digit 8 Type of drive, digit 1. swing door drive Drive durability, digit 2. 1 000 000 test cycles, at 4 000 cycles/day Type of door leaf, digit 3.

  • Page 12: How The Em Sw Emo Works

    How the EM SW EMO works The swing door operator EM SW EMO uses a DC motor and a gear-reduction system to drive an arm system, which opens the door. Closing power is provided by a motor and a clock spring. An electronic control unit uses a motor encoder and a microprocessor to control the door’s movement.

  • Page 13: Mat

    5 How the EM SW EMO works • an open door will not close, if the OPD detects activity in the field • during opening, the door will continue to open, even if the OPD detects activity in the field •...

  • Page 14: Open/Close Impulse

    5 How the EM SW EMO works 5.4.5 OPEN/CLOSE impulse The impulse will open the door and the door will stay open until a new impulse is given. If no impulse is given the door will close after 15 minutes. This can be made infinite by changing group of para- meters, see page 62.

  • Page 15: Monitored Safety Sensors

    5 How the EM SW EMO works 5.5.3 Monitored safety sensors Both presence impulse and presence detection can be monitored. If a sensor becomes defective, the operator will not accept any impulses and will then work as a manual door closer.

  • Page 16: Models

    EM SW EMO, standard cover (wall mounted) EM SW EMO is the standard operator. Pushing arm system shown. Measurement from hinge centerline to outgoing shaft is always 210 mm regardless if butt or pivot hinged systems.

  • Page 17: Part Identification & Accessories

    7 Part identification & Accessories Part identification & Accessories Item No. Art. No. Description 1012753 Back plate 331003498 Transmission unit/operator 331003532 Control unit CU-ESD 331003554 EXU-SI (Kit to extend the security functions) optional 331003557 EXU-SA (Kit to extend the safety functions) optional 331006340 Cable kit 331003540...

  • Page 18: Arm System, Push

    7 Part identification & Accessories Arm system, PUSH Art.No. 1003576BK PUSH This arm system is delivered with drive arm, telescopic part and door fitting. It is used if the operator is installed on the wall on the opposite side of the door swing and approved for fire door applications.

  • Page 19: Arm System, St-V / St-H

    7 Part identification & Accessories Arm system, ST-V / ST-H Art. No. ST-V 172313 Art. No. ST-H 172315 This arm system is delivered with drive arm and guide roller. Note! Door fitting not included. It is used if the operator is installed on the wall on the same side ILL-01676 as the door swing and break-out unit is required.

  • Page 20: Drive Shaft Extension Kits

    7 Part identification & Accessories Drive shaft extension kits 70 mm (2-3/4") 50 mm (2") 20 mm (3/4") Art. No. Art. No. Art. No. 173107 173108 173109 Control switches 7.7.1 Power ON/OFF switch White Brown P/N: 1003581 Art. No. 1003581 7.7.2 ON/OFF/HOLD open switch (will not operate electric lock) White...

  • Page 21: 4-Position Switch Ps-4C (Operates The Electric Lock)

    7 Part identification & Accessories 7.7.3 4-position switch PS-4C (operates the electric lock) Position Function The door is closed. The door cannot be opened with inner and outer activation units. The door is locked if an electromechanical locking device has been fitted. The door can be opened with a key switch (if fitted).
  • Page 22 7 Part identification & Accessories Settings for double doors Settings on the Function MASTER SLAVE Common Program selection Opening time Closing time Hold open time Close / Continue to open when the door is obstructed PAG On/Off Level of Power assist (X)* Extended closing force (X)*...

  • Page 23: Extension Units

    7 Part identification & Accessories Extension units For installation see page 51. EXU-SI (kit for security functions) EXU-SA (kit for safety functions) Art. No. 1003554 Art. No. 1003557 AIU (Audible warning signal) Art. No. 656083 ILL-01887 24 V DC 7.10 Battery backup unit Note! Disconnect mains power when replacing battery.

  • Page 24: Cover Piece Kit

    7 Part identification & Accessories 7.11 Cover piece kit 7.11.1 Middle piece kit Art. no 1008383 7.12 Labels Label kit - including all below Art. No. 1005227 Emergency break-out, DIN right door Art. No. 1001785 Emergency break-out, DIN left door Art.

  • Page 25: Pre-Installation

    8 Pre-installation Pre-installation General tips/Safety concerns In all instances, where work is being done, the area is to be secured from ped- estrian traffic, and the power removed to prevent injury. • If there are sharp edges after drilling the cable outlets, chamfer the edges to avoid damage to the cables.

  • Page 26: Installation Examples

    8 Pre-installation Installation examples Aluminium profile system Steel reinforcement or rivnut Plasterboard wall Wood reinforcement Reinforced concrete wall and brick wall Expansion-shell bolt (for brick wall min. M6x85, UPAT PSEA B10/25) Plasterboard wall Issue 2014-11-24 1005088-EMEI-11.0...

  • Page 27: Fastening Requirements

    8 Pre-installation Fastening requirements Base material Minimum requirements of wall profile* Steel 5 mm ** Aluminium 6 mm ** Reinforced concrete min. 50 mm from the underside Wood 50 mm Brick wall Expansion shell bolt, min. M6x85, UPAT PSEA B10/25, min. 50 mm from the underside * EM minimum recommended requirements.

  • Page 28: Mechanical Installation

    9 Mechanical installation Mechanical installation Note! Consider all power wire entry locations and signaling wires before preparing back plate. Operator with PUSH arm system PUSH C L2 2 - 17 2 - 37 2 - 67 2 - 87 (330 mm with longer telescopic part) 0−100 Issue 2014-11-24 1005088-EMEI-11.0...
  • Page 29 9 Mechanical installation Cont. "Operator with PUSH arm system" DIN Right PUSH DIN Right Ø C L 1 1005088-EMEI-11.0 Issue 2014-11-24...
  • Page 30 9 Mechanical installation Cont."Operator with PUSH arm system" PUSH C L 2 Operator should be attached using the top/centered bolt first, then follow pattern C L 1 Issue 2014-11-24 1005088-EMEI-11.0...
  • Page 31 9 Mechanical installation Cont."Operator with PUSH arm system" PUSH DIN Left DIN Left C L 1 1005088-EMEI-11.0 Issue 2014-11-24...
  • Page 32 9 Mechanical installation Cont."Operator with PUSH arm system" PUSH C L 1 C L 2 Operator should be attached using the top/centered bolt first, then fol- low pattern Issue 2014-11-24 1005088-EMEI-11.0...
  • Page 33 9 Mechanical installation Cont."Operator with PUSH arm system" PUSH (2x) 90° 25 Nm 1005088-EMEI-11.0 Issue 2014-11-24...

  • Page 34: Operator With Pull Arm System

    9 Mechanical installation Operator with PULL arm system PULL C L 2 0−130 40 x 60 Issue 2014-11-24 1005088-EMEI-11.0...
  • Page 35 9 Mechanical installation Cont. "Operator with PULL arm system" DIN Left PULL DIN Left C L 1 1005088-EMEI-11.0 Issue 2014-11-24...
  • Page 36 9 Mechanical installation Cont. "Operator with PULL arm system" PULL C L 2 C L 2 C L 2 C L 1 Operator should be attached using the top/centered bolt first, then follow pattern Issue 2014-11-24 1005088-EMEI-11.0...
  • Page 37 9 Mechanical installation Cont. "Operator with PULL arm system" DIN Right PULL DIN Right C L 1 1005088-EMEI-11.0 Issue 2014-11-24...
  • Page 38 9 Mechanical installation Cont. "Operator with PULL arm system" C L 2 PULL C L 2 C L 1 C L 2 Operator should be attached using the top/centered bolt first, then follow pattern Issue 2014-11-24 1005088-EMEI-11.0...
  • Page 39 9 Mechanical installation Cont. "Operator with PULL arm system" PULL 25 Nm Click Click DIN Left DIN Left DIN Right DIN Right 1005088-EMEI-11.0 Issue 2014-11-24...

  • Page 40: Installation Of Operator With Arm System St

    9 Mechanical installation Installation of operator with arm system ST A = 0 - 60 A > 60 - 100 ILL-01599 Issue 2014-11-24 1005088-EMEI-11.0...
  • Page 41 9 Mechanical installation Cont. "Installation of operator with arm system ST" DIN Left DIN Left Outside open door 1005088-EMEI-11.0 Issue 2014-11-24...
  • Page 42 9 Mechanical installation Cont. "Installation of operator with arm system ST" Operator should be attached using Operator should be attached using the top/centered bolt the top/centered bolt first, then fol- first, then follow pattern low pattern Issue 2014-11-24 1005088-EMEI-11.0...
  • Page 43 9 Mechanical installation Cont. "Installation of operator with arm system ST" DIN Right DIN Right Outside open door 1005088-EMEI-11.0 Issue 2014-11-24...
  • Page 44 9 Mechanical installation Cont. "Installation of operator with arm system ST" Operator should be attached us- ing the top/centered bolt first, then follow pattern Issue 2014-11-24 1005088-EMEI-11.0...
  • Page 45 9 Mechanical installation Cont. "Installation of operator with arm system ST" 25 Nm 1005088-EMEI-11.0 Issue 2014-11-24...
  • Page 46 9 Mechanical installation Cont. "Installation of operator with arm system ST" 0º ≈ 90º ≈ 45º Issue 2014-11-24 1005088-EMEI-11.0...
  • Page 47 9 Mechanical installation Cont. "Installation of operator with arm system ST" ø 5,1 mm, 2x 1005088-EMEI-11.0 Issue 2014-11-24...
  • Page 48 9 Mechanical installation Cont. "Installation of operator with arm system ST" DIN Left DIN Left DIN Right DIN Right 90,5 Cut out for arm bracket Issue 2014-11-24 1005088-EMEI-11.0...

  • Page 49: Electrical Connection

    10 Electrical connection Electrical connection Note! During any work with the electrical connections the mains power must be disconnected. • Place the electric switch easily accessible from the operator. If a plug contact is used in the in- stallation the wall socket shall be placed easily accessible from the operator. •...

  • Page 50: Control Units

    10 Electrical connection 10.2 Control units 10.2.1 CU-ESD The CU-ESD can be equipped with extension units, EXU-SI and/or EXU-SA, depending on the functions required. See page 13 or 14. Encoder Power ON/OFF switch Motor Synchronizing of double doors ON/OFF/HOLD open switch LEARN BUTTON 24 V DC LOUT...

  • Page 51: Extension Units Exu-Si / Exu-Sa

    10 Electrical connection 10.2.3 Extension units EXU-SI / EXU-SA Installation To extend the functions, the extension units can be mounted on top of the control unit CU-ESD, separately or combined. Torx T10 EXU-SA EXU-SI 5 mm nut driver Tag strip long 2 pcs EXU short 1 pcs EXU Main contact...

  • Page 52: Extension Unit Exu-Si

    10 Electrical connection 10.2.4 Extension unit EXU-SI Functions This extension unit has inputs for electro-mechanical lock, program selector, batteries, KILL function, OPEN/CLOSE, KEY opening and outer impulse. +24 V DC OPEN Program selector EXIT Unlocked signal from lock KRST KILL reset (see jumper below) KILL KILL impulse 0.5 s...

  • Page 53: Extension Unit Exu-Sa

    10 Electrical connection 10.2.5 Extension unit EXU-SA This extension unit has inputs for door mounted sensors, which can give presence impulse on ap- proach side and/or presence detection on swing path side. Relay output for error indication or door indication is also integrated. Functions Monitoring of presence detection Monitoring of presence impulse...

  • Page 54: Start-Up

    11 Start-up Start-up The spring pre-tension is factory set to 210° and is normally not necessary to adjust. If adjustment has to be carried out, see page 66. 11.1 Adjusting the door stop a Close the door. b Turn the potentiometer SPTE to 0° (if not already on 0°). SPTE CU-ESD 0°...
  • Page 55 11 Start-up e Loosen the door stop arm. Mount the door stop arm on the splines a), as close as possible to the stop block b). Fine-adjust if necessary with the screw on the stop block c). g Close the door by turning the potentiometer SPTE to 0° and let the door close. Note! Impulses are not accepted if SPTE is more than 0°.

  • Page 56: Auto-Learn Automatically Sets Back And Latch Check (Recommended)

    11 Start-up 11.2 Auto-learn automatically sets back and latch check (recommended) This learning is performed by pushing the LEARN BUTTON (LRN). • Before the learning procedure starts, make sure that the door has been properly closed i.e., not by force. •...

  • Page 57: General Adjustment

    11 Start-up 11.3 General adjustment a Set the hold open time with the potentiometer on the control unit. b Adjust the opening speed (OPSP). Turning clockwise increases the speed. c Adjust the closing speed (CLSP). Turning counter-clockwise decreases the speed. See the “Guide for installers of Powered Pedestrian Swing Doors”, document PRA-0006, for calculation of speed.

  • Page 58: Connection Of Activation Units And Accessories

    When sensors are used in order to avoid contact with the door leaf it is required that the presence detect sensor and the presence impulse sensor fulfills Performance Level = d according to EN ISO 13849-1. These sensors shall also be monitored (tested) by EM SW EMO door operator. PS-4C...

  • Page 59: Cover

    12 Cover Cover The cover and back plate are manufactured in clear anodized aluminium. The end plates are made of black painted steel sheet. 12.1 Fitting and removing the cover The cover is slid over flanges in the back plate so that the ridges fit in the grooves. Break off and snap on the fill cover into the back plate for output shaft.

  • Page 60: Middle Piece Cover

    12 Cover 12.2 Middle piece cover X - 8 Issue 2014-11-24 1005088-EMEI-11.0...

  • Page 61: Signage

    Product label: Mandatory Emergency break-out: Mandatory, if approved for escape route. Entrematic Group door sticker: Mandatory, if applicable to highlight the presence of the glass (applied to all glass sections that are moving). Supervision of child: Mandatory, if applicable (applied to both sides of the door). To be placed on entrances where the risk analysis shows use by children, elderly and disabled.

  • Page 62: Changing Group Of Parameters

    14 Changing group of parameters Changing group of parameters a Disconnect batteries if any. b Disconnect the electrical power contact. c Press the LEARN BUTTON (LRN) and keep it depressed. d Connect the electrical power contact. e Watch the ERROR LED. Release the LEARN BUTTON after the 5 seconds (LED is out).

  • Page 63: Classification

    15 Classification Classification 15.1 Entering the program mode (classification) If the operator is equipped with batteries, they must be disconnected before the following procedure is preformed. • Disconnect the mains plug • Press the LEARN BUTTON while connecting the mains plug •...
  • Page 64 15 Classification Speed settings The table shows minimum opening time to back check or to 80° open or minimum closing time from 90° to 10° open. Width of door leaf (mm) Door mass (kg) Time (s) min 1000 1200 Issue 2014-11-24 1005088-EMEI-11.0...

  • Page 65: Advanced Settings

    16 Advanced settings Advanced settings 16.1 Learn with advanced setting of “back- and latch-check” See the prerequisites for performing a “learn” under the heading Auto-learn automatically sets back and latch check (recommended) on page 56. a Push the button once or twice as for auto-setting. b Stop the door at required back-check.

  • Page 66: Reducing / Increasing The "Spring Pre-Tension" (Spte)

    16 Advanced settings 16.3 Reducing / Increasing the “Spring pre-tension” (SPTE) The spring pre-tension is factory set to 210° and is normally not necessary to adjust. If adjustment has to be carried out see below. a Loosen the door stop arm. Remove if fitted on the topside, slide down if fitted on the bottom. b Turn the potentiometer for spring pre-tension (SPTE) clockwise until the door opens to 45°.

  • Page 67: Installation And Adjustments

    17 Installation and adjustments Installation and adjustments 17.1 Complementary Safety Devices Swing Doors If there is any risk for finger jam, add finger protection strip at the hinge side for internal doors, article No. 833334 or add finger protection roll for external doors, article No. 833333. 17.2 Swing Doors Opening and Closing Time Adjust, as a minimum, the operator's opening and closing time according to the diagram below.

  • Page 68: Diagrams For Door Weight

    17 Installation and adjustments 17.3 Diagrams for Door weight a Measure the door width (DW) and the door height (DH) in metres for one door leaf only. b Calculate the area DW x DH. c Select diagram for your type of door and the actual glass thickness. Find the weight. Example: Aluminium door with measurement DW = 1.5 m, DH = 2 m and glass thickness 12 mm.

  • Page 69: Installation Instructions For Accessories

    18 Installation instructions for Accessories Installation instructions for Accessories 18.1 Armsystem PULL-P ø 9,5 ( " 109* " " " " Short slide track Door stop End caps Long slide track Rubber absorber Flexible steel hose FLS Ball catch Magnetic switch G1 Fastening hole (4 pcs) Arm stop Magnet...
  • Page 70 18 Installation instructions for Accessories Slide the arm stop into the long slide track. Position it close to the hinge and secure it with the lock screw (will be adjusted later). g Slide the drive arm with its guide shoe into the long slide track. h Slide the ball seat into the long slide track.

  • Page 71: Troubleshooting

    19 Troubleshooting Troubleshooting Fault Possible reasons why Remedies/Explanations The door does not open Control switch is set to OFF Change the setting of the control switch The motor does not start Mains power is missing Check the mains power switch Activation unit does not function Strap impulse inputs Presence detection is activated...

  • Page 72: Error Indication

    19 Troubleshooting 19.1 Error indication • During normal operation the ERROR LED on the control unit is illuminated. • An extinguished LED indicates that there is no electrical power. • A flashing light on the LED indicates that the operator is out of function (see table below). •...

  • Page 73: Service/Maintenance

    Service/Maintenance Regular inspections shall be made according to national regulations and product documentation by a Entrematic Group-trained and qualified technician. The number of service occasions should be in accordance with national requirements and product documentation. This is especially im- portant when the installation concerns a fire-approved door or a door with an emergency opening function.
