2 Mechanical installation
2.2.13

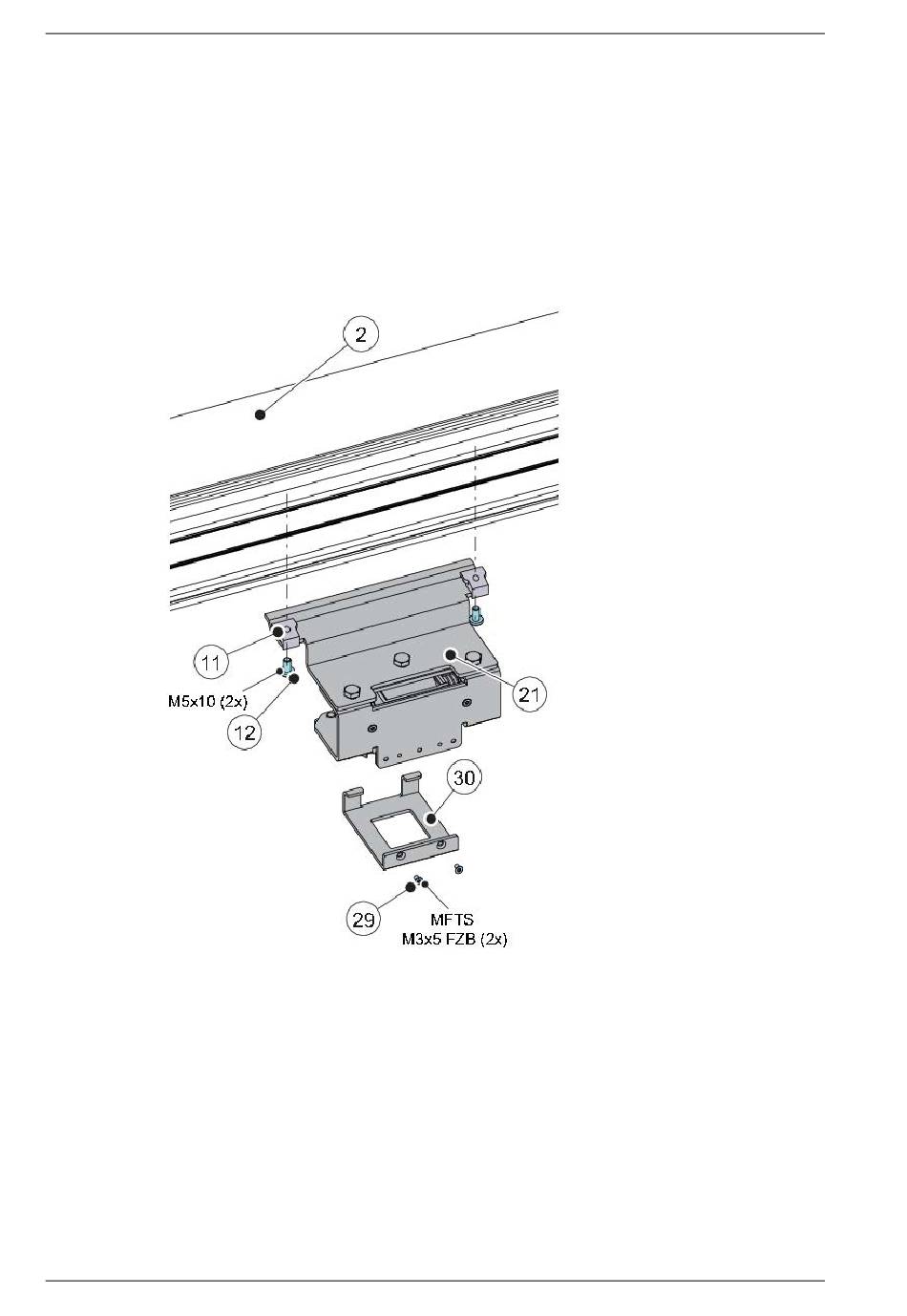

Install the belt lock (option)

a Take down the screws (29) and the belt guide (30).
b Fix the nuts (11) to the belt lock (21) with screws (12), but do not tighten the screws (12).
Lift the tooth belt lock (21) to the beam (2), then tighten the screws (12) with a torque of 6
Nm.
c Fix the belt guide (30) to the belt lock (21) with the screws (29).
88
11 Nut: M5
12 Screw: M5x10
21 Belt lock
29 Screw: ISO 7046 (MFTS) M3x5 FZB 8.8
30 Belt guide
