Entrematic PSL Retrofit Kit Installation Manual page 11

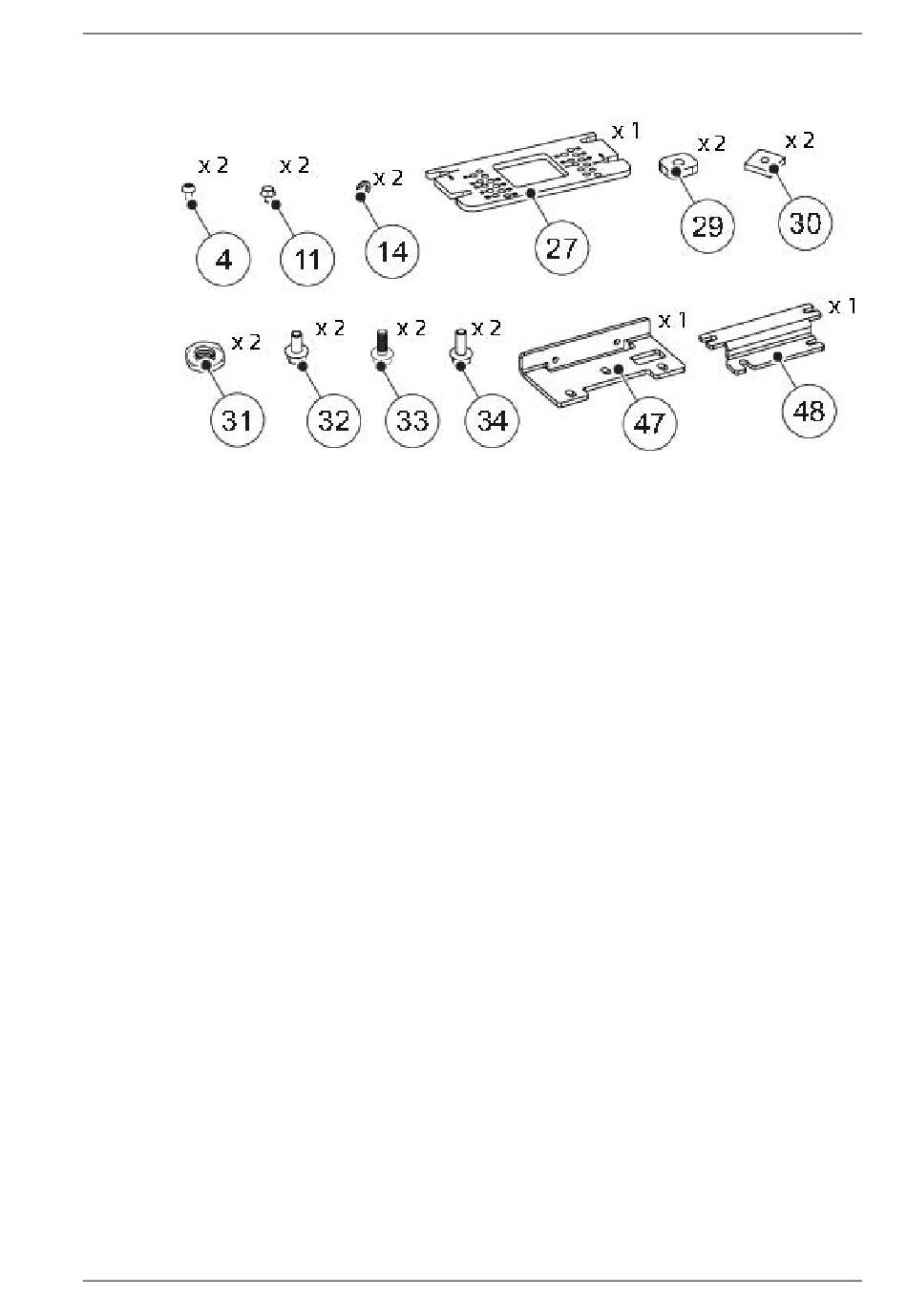

Check belt lock fixing bracket kit 1
1018482-EMen-2.0
4 Screw: ISO 14583 (MRT-TT) M6x10 FZB 8.8
11 Screw: DIN 6921 (M6SF) M6x8 FZB 8.8
14 Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB
27 Mounting plate
29 Square nut: M6
30 Nut
31 Nut: ISO 4035 (ML6M) M6 FZB
32 Screw: DIN 6921 (M6SF) M6x12 FZB 8.8
33 Screw: DIN 6921 (M6SF) M6x14 FZB 8.8
34 Screw: DIN 6921 (M6SF) M6x16 FZB 8.8
47 Fixing bracket
48 Mounting bracket
