2 Mechanical installation
2.5.7

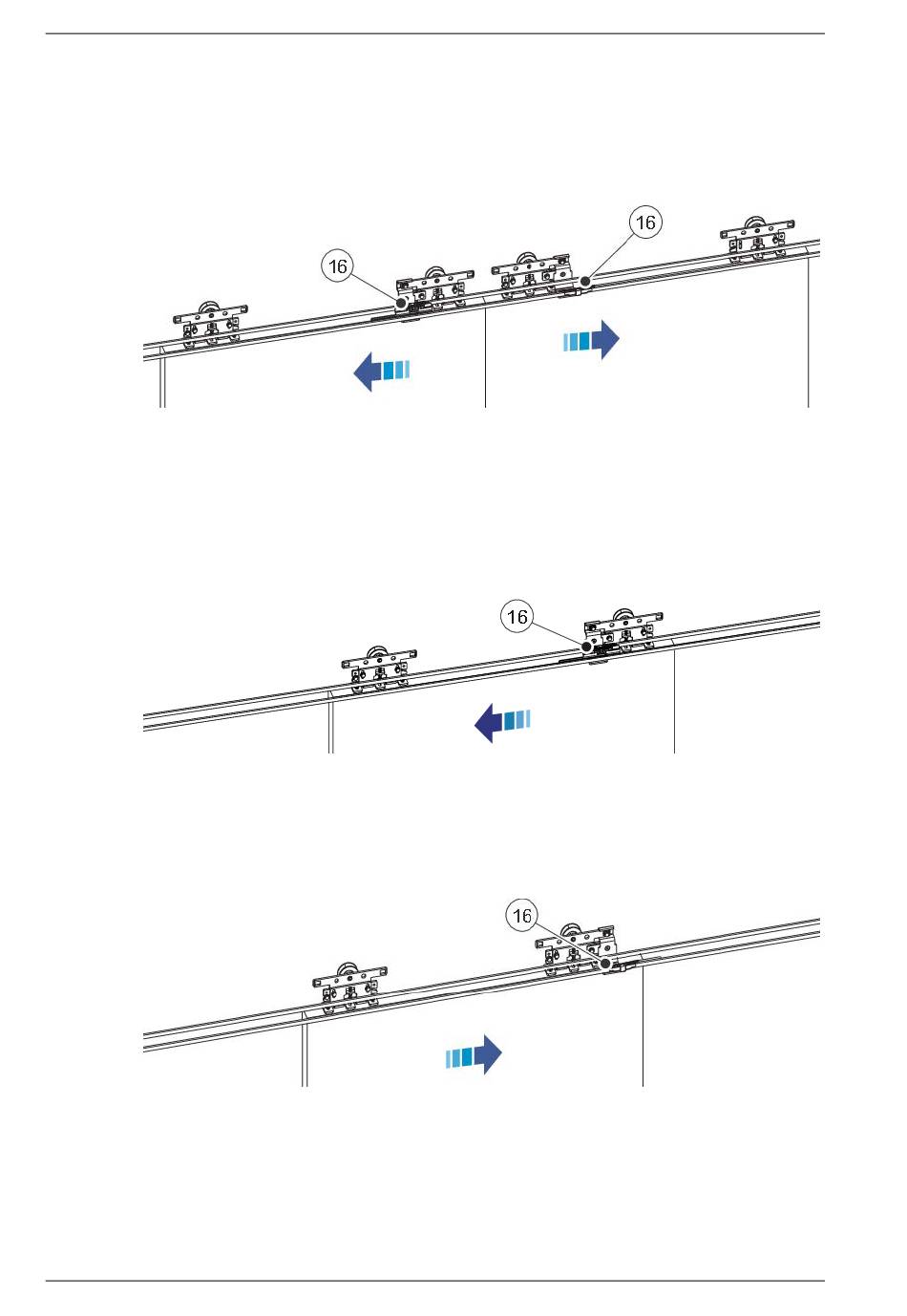

Placement of the transmission brackets (for fast door leaves)

Bi-parting opening
The transmission bracket (16) on the left door leaf shall be connected to the inner belt.
The transmission bracket (16) on the right door leaf shall be connected to the outer belt.
Single left opening
The transmission bracket (16) shall be connected to the inner belt.
Single right opening
The transmission bracket (16) shall be connected to the outer belt.
122
16
Transmission bracket
16
Transmission bracket
16
Transmission bracket
Issue 2019-07-13
1018482-EMen-2.0
