2 Mechanical installation

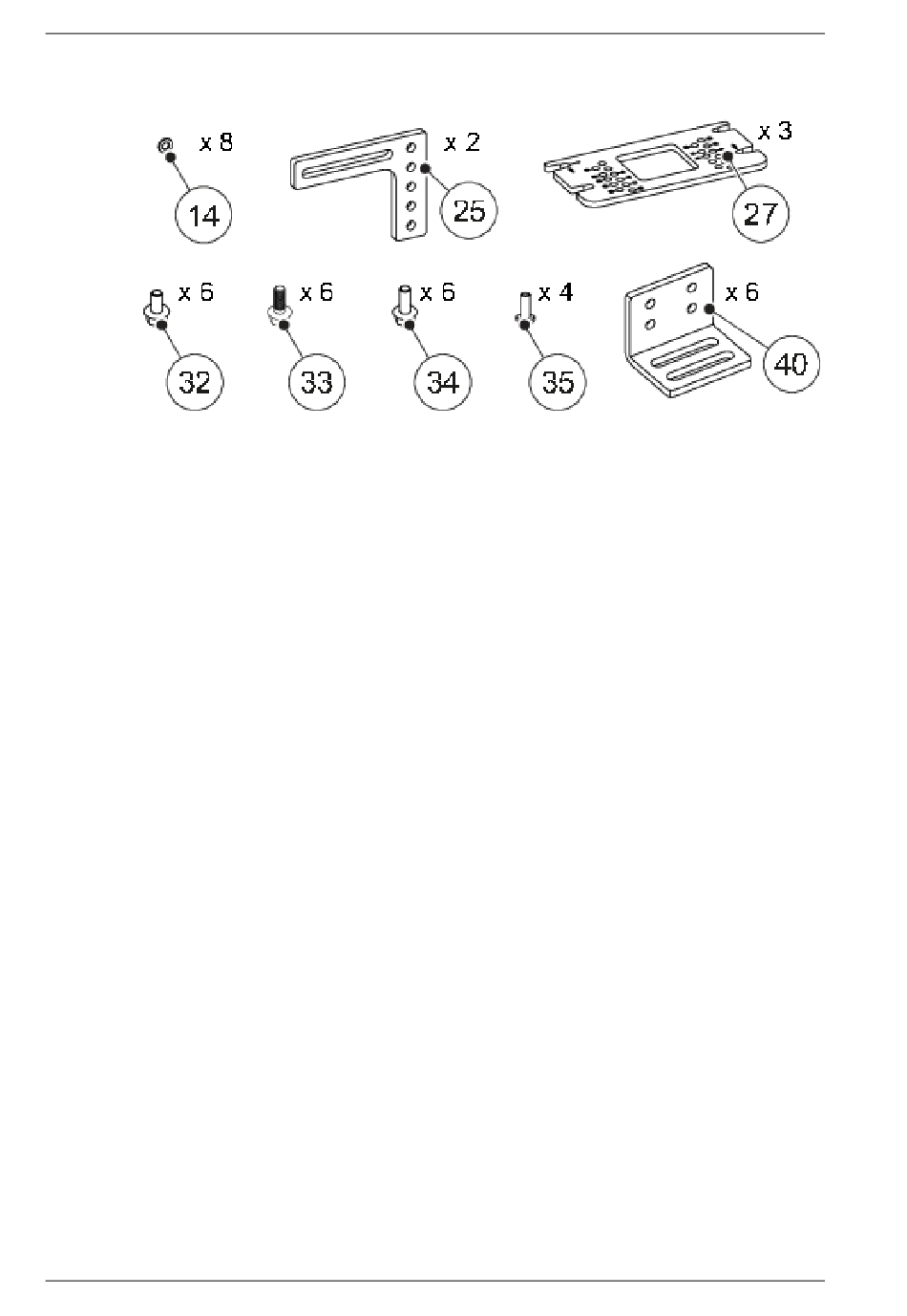

Check B2 kit
8
14
Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB
25
Bracket 1
27
Mounting plate
32
Screw: DIN 6921 (M6SF) M6x12 FZB 8.8
33
Screw: DIN 6921 (M6SF) M6x14 FZB 8.8
34
Screw: DIN 6921 (M6SF) M6x16 FZB 8.8
35
Screw: ISO 14583 (MRT-TT) M6x16 FZB 8.8
40
Bracket 2
Issue 2019-07-13
1018482-EMen-2.0
