Bi-Parting Operators; Attachment Of Slack Reducer - Entrematic PSL Retrofit Kit Installation Manual

2.4.10

Bi-parting operators

a Put doors in fully closed position. Make sure that the doors trailing edge is align with the side
light.
b Click the belt clamp (20) into position in the inner transmission bracket (16).
c Check door panels for proper centering in the fully closed and opened positions.
2.4.11

Attachment of slack reducer

Please refer to PSL150 Installation and Service Manual (1016248).
1018482-EMen-2.0

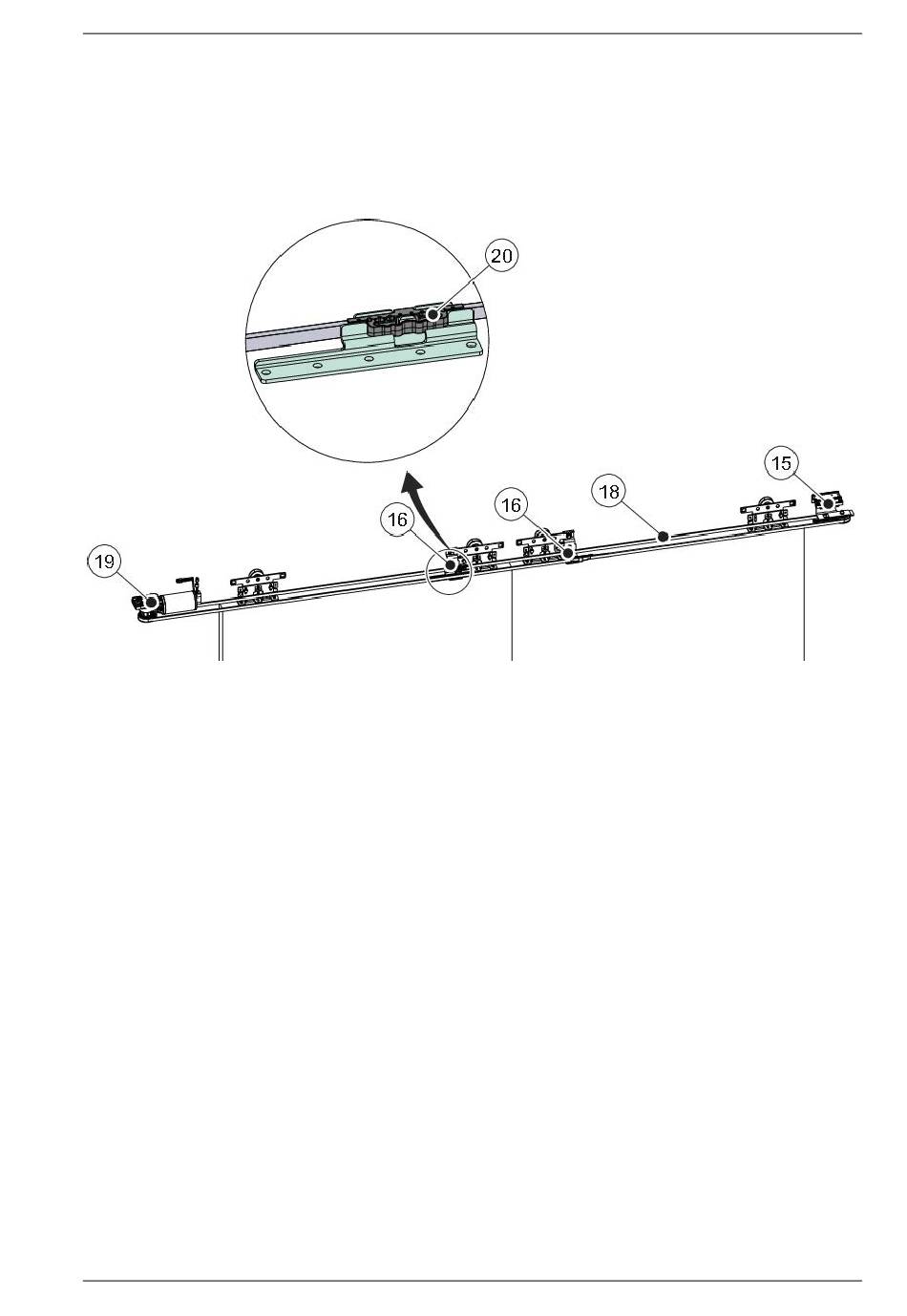

15 Tension wheel assembly
16 Transmission bracket
18 Tooth belt
19 Drive unit pulley
20 Belt clamp
