2 Mechanical installation
2.1.2

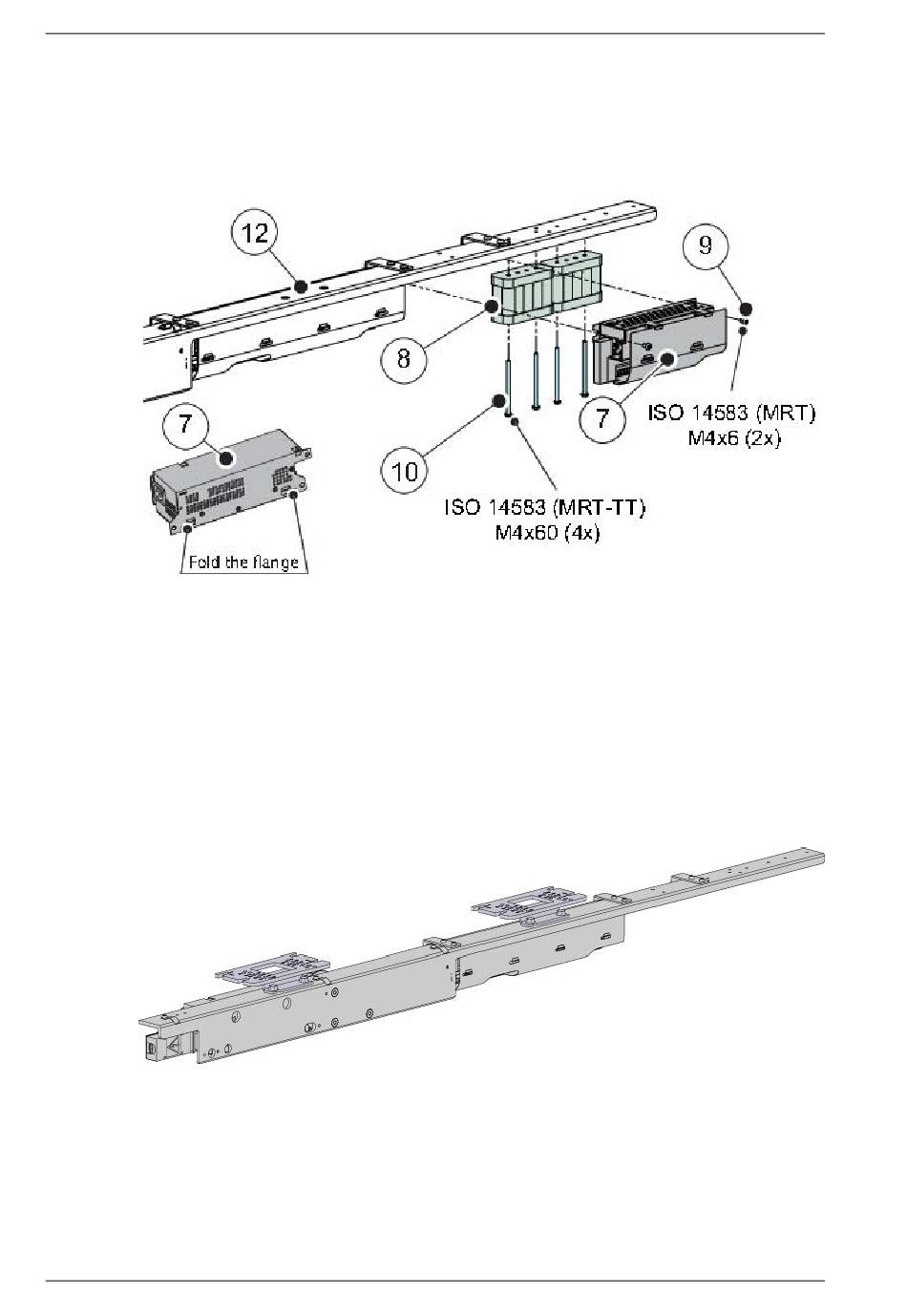

I/O board and the battery installation (option)

Note! I/O board must be selected when bi-stable.
Fix the I/O board (7) and the battery (8) to the backbone assembly (12) with the screws (9) and
(10).
2.1.3

Fix the brackets to the backbone assembly

Note! The brackets in the picture is only an example, please choose the suitable brackets for the
specified operator that shall be upgraded.
14
7 I/O board
8 Battery
9 Screw: ISO 14583 (MRT) M4x6
10 Screw: ISO 14583 (MRT-TT) M4x60
12 Backbone assembly
