2.3.9

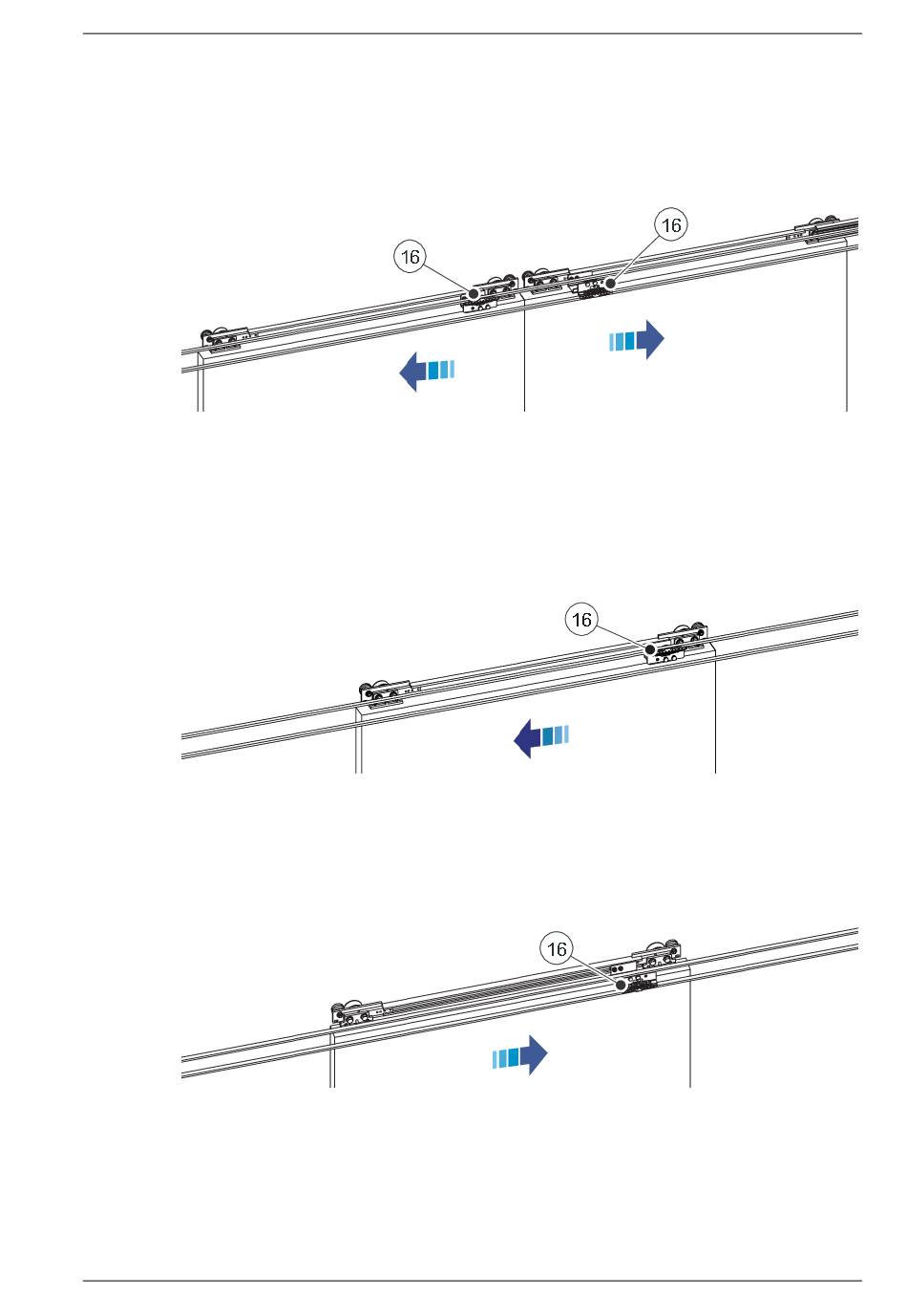

Placement of the transmission brackets
Bi-parting opening
The transmission bracket (16) on the left door leaf shall be connected to the upper belt.
The transmission bracket (16) on the right door leaf shall be connected to the lower belt.
Single left opening
The transmission bracket (16) shall be connected to the upper belt.
Single right opening
The transmission bracket (16) shall be connected to the lower belt.
1018482-EMen-2.0
16
Transmission bracket
16
Transmission bracket
16
Transmission bracket
Issue 2019-07-13
2 Mechanical installation
99
