2 Mechanical installation
2.3.8
Fix the transmission brackets

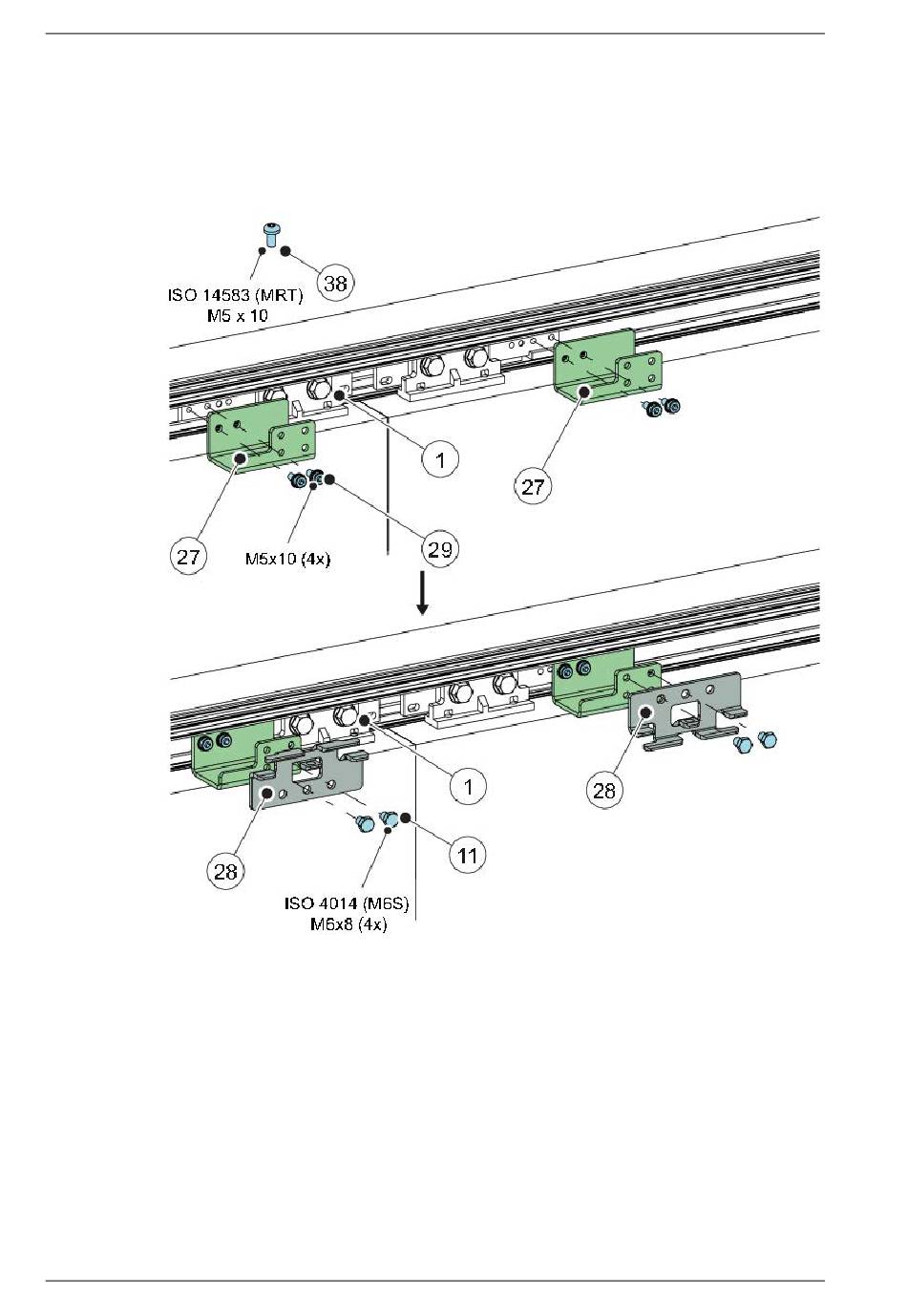

a Unscrew the existing screws (29), fix the transmission brackets (27) and the universal transmis-
sion brackets (28) to the door carriers (1) with the existing screws (29) and the screws (11).
Note! If there are not enough existing screws (29), use the screws (38) to replace.
98
1
Door carrier
11
Screw: ISO 4014 (M6S) M6x8
27
Transmission bracket
28
Universal transmission bracket
29
Existing screw: M5x10
38
Screw: ISO 14583 (MRT) M5x10
Issue 2019-07-13
1018482-EMen-2.0
