2 Mechanical installation
2.5.5

Fix the tension wheel assembly

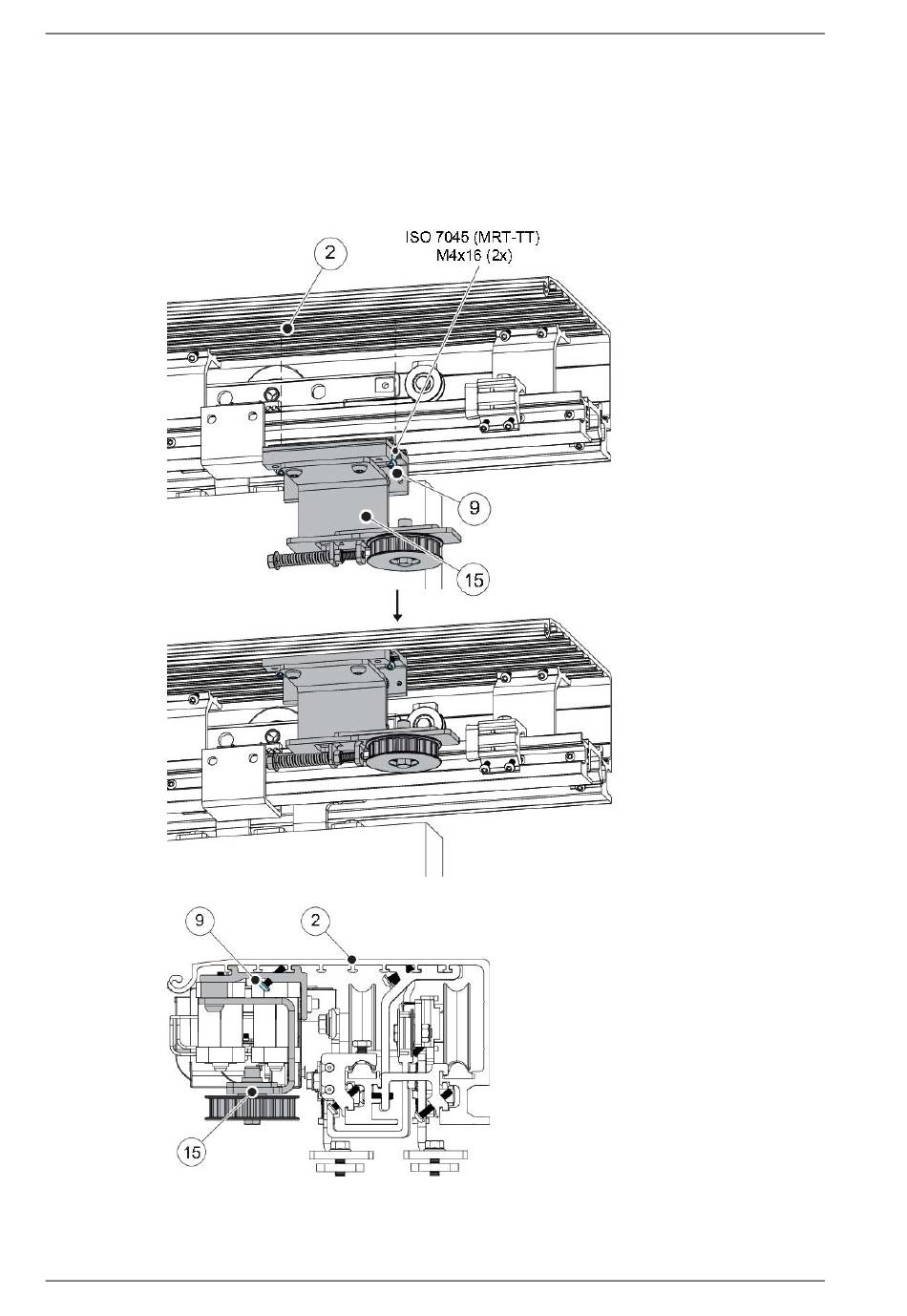

a Fix the tension wheel assembly (15) to the beam (2) with the screws (9), do not tighten the
screws (9) fully, so that it shall be able to slide along the beam (2).
b The position of the tension wheel assembly (15) should be as close as possible to the drive unit,
but make sure that the tension wheel assembly (15) will not interfere with the door carrier
when the door is fully opened.
120
2 Beam
9 Screw: ISO 7045 (MRT-TT) M4x16
15 Tension wheel assembly
