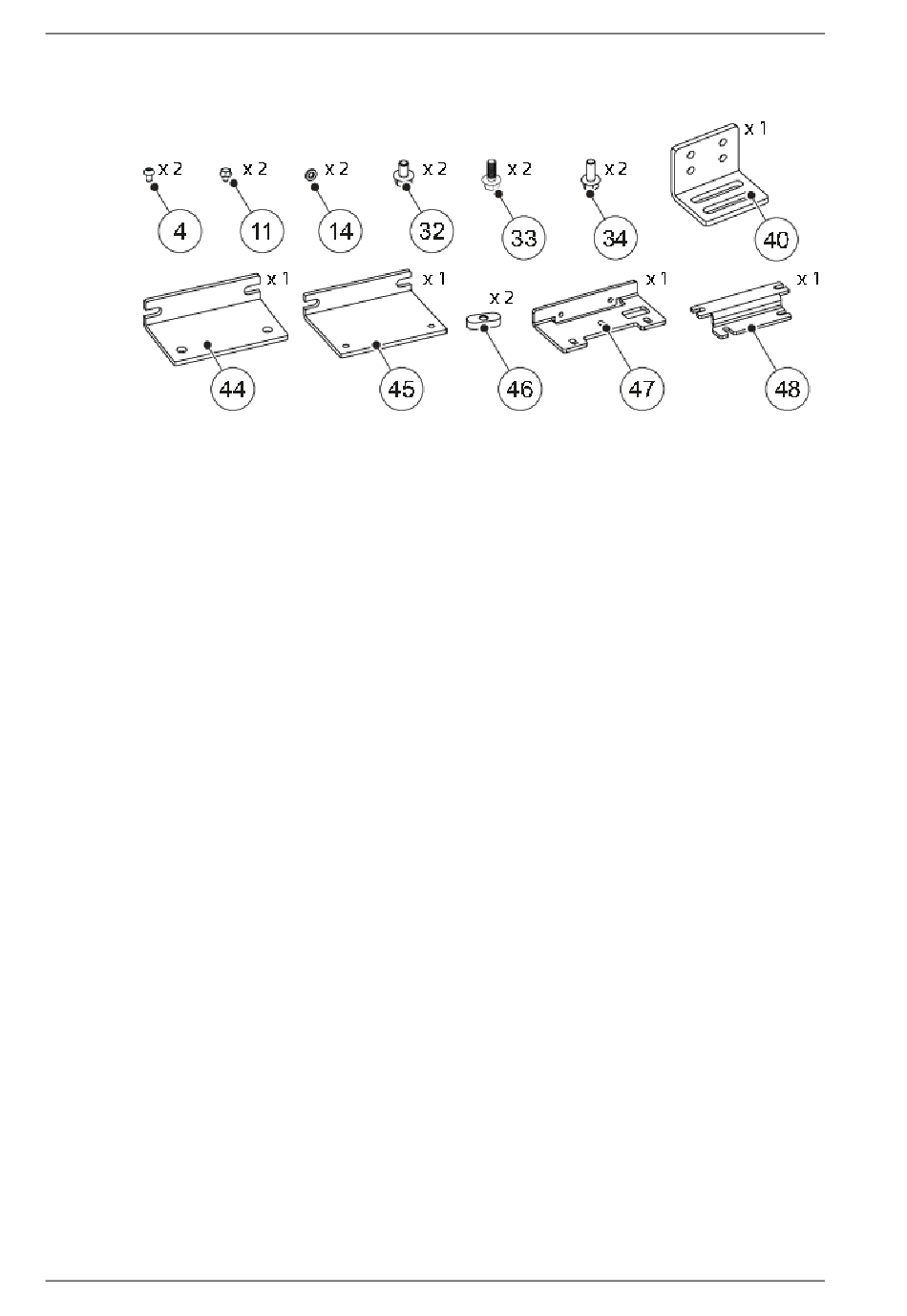

2 Mechanical installation
Check belt lock fixing bracket kit 2
12
4
Screw: ISO 14583 (MRT-TT) M6x10 FZB 8.8
11
Screw: DIN 6921 (M6SF) M6x8 FZB 8.8
14
Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB
33
Screw: DIN 6921 (M6SF) M6x14 FZB 8.8
34
Screw: DIN 6921 (M6SF) M6x16 FZB 8.8
40
Bracket 2
43
Screw: DIN 6921 (M6SF) M6x10 FZB 8.8
44
Bracket 4
45
Bracket 5
46
Nut: M6
47
Fixing bracket
48
Mounting bracket
Issue 2019-07-13
1018482-EMen-2.0
