2.5.4

Fix the I/O board and the battery (option)

Note! I/O board must be selected when bi-stable.

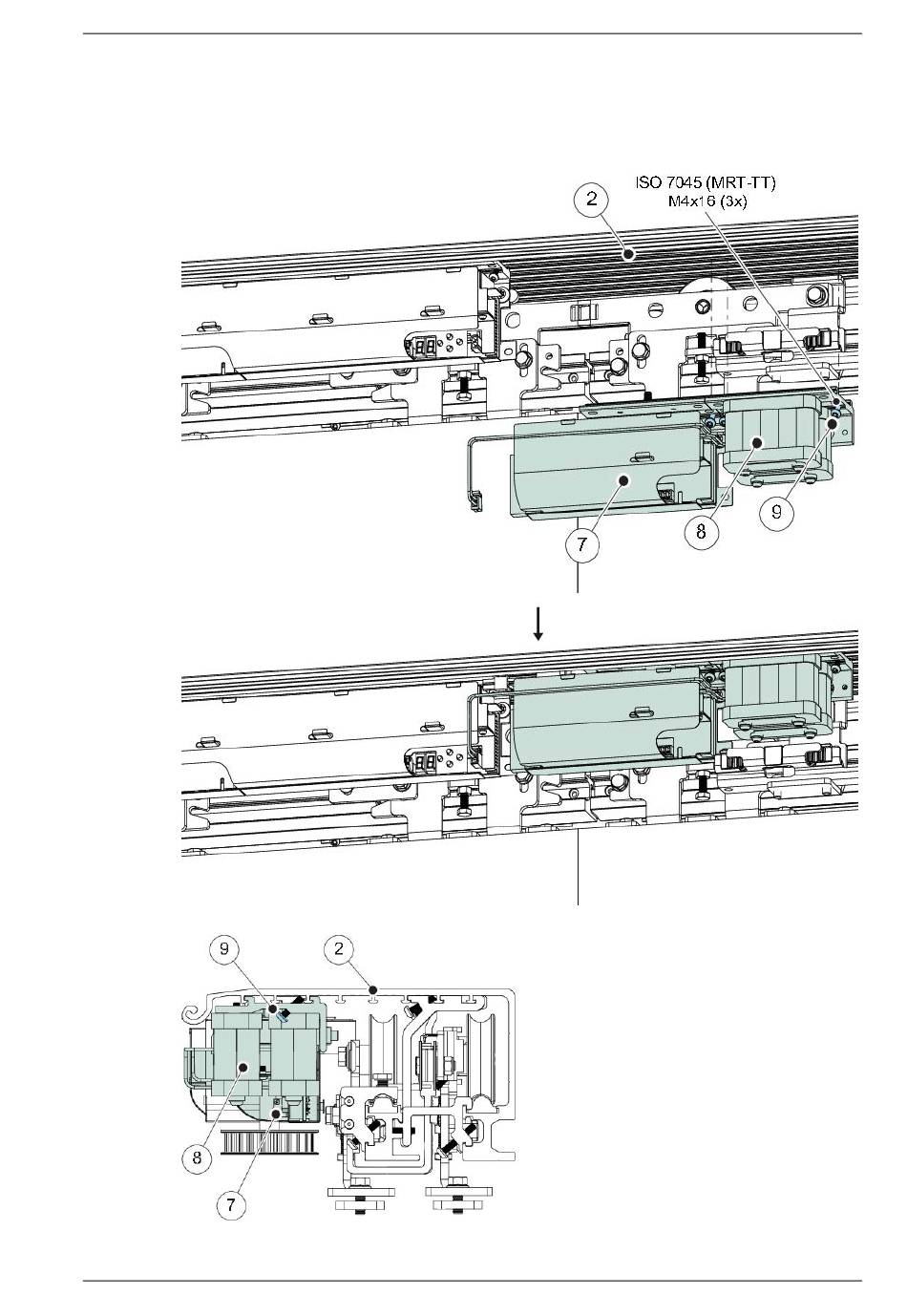

a Fix the I/O board (7) and the battery (8) to the beam (2) with the screws (9).
1018482-EMen-2.0
2 Beam
7 I/O board
8 Battery
9 Screw: ISO 7045 (MRT-TT) M4x16
