2 Mechanical installation
2.2.3
I/O board and the battery installation (option)
Note! I/O board must be selected when bi-stable.

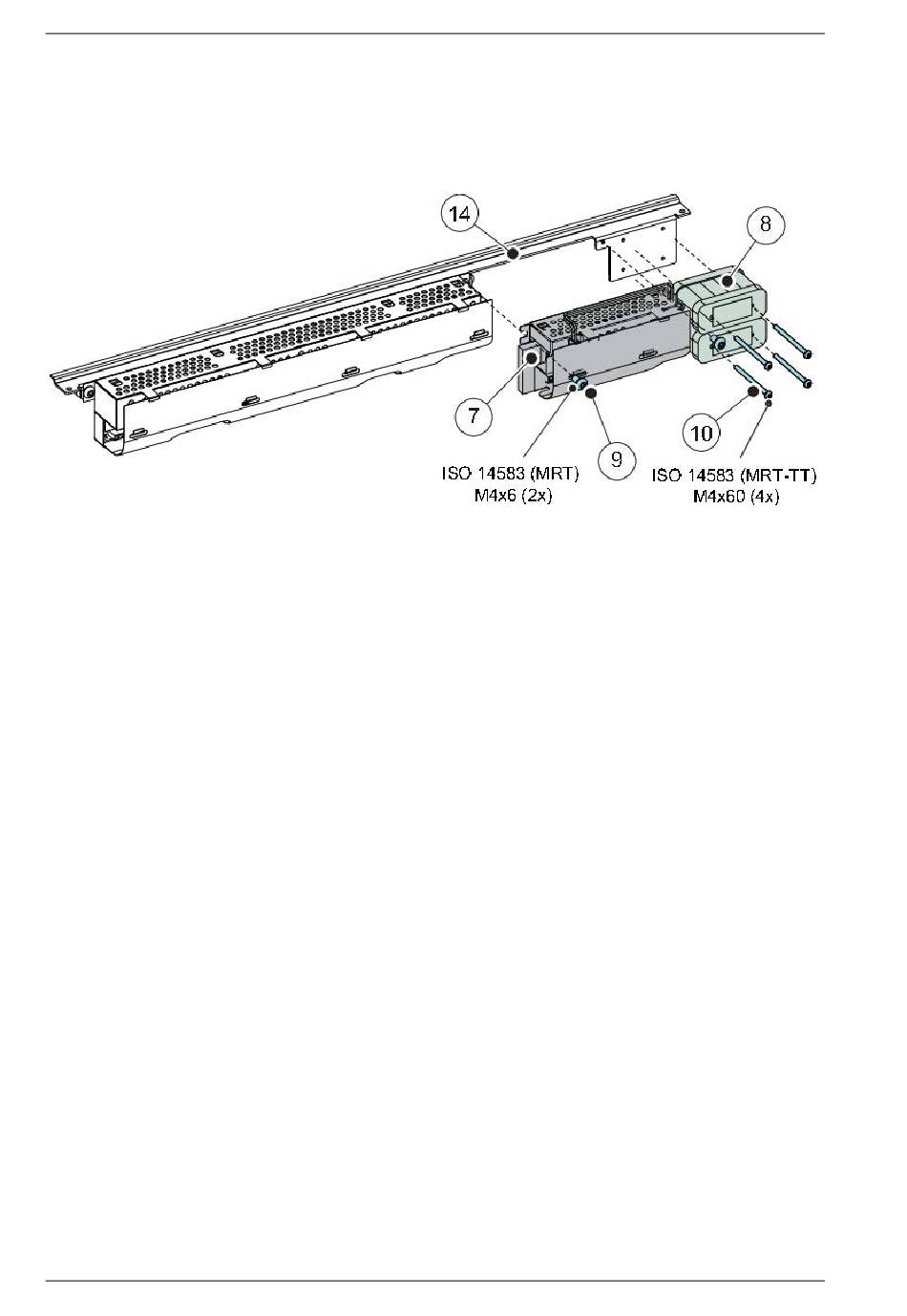

a Fix the I/O board (7) and the battery (8) to the main control assembly (14) with the screws (9)
and (10).
76
7
I/O board
8
Battery
9
Screw: ISO 14583 (MRT) M4x6
10
Screw: ISO 14583 (MRT-TT) M4x60
14
Main control assembly
Issue 2019-07-13
1018482-EMen-2.0
