2.1.6
Fix the transmission bracket to the connecting bracket

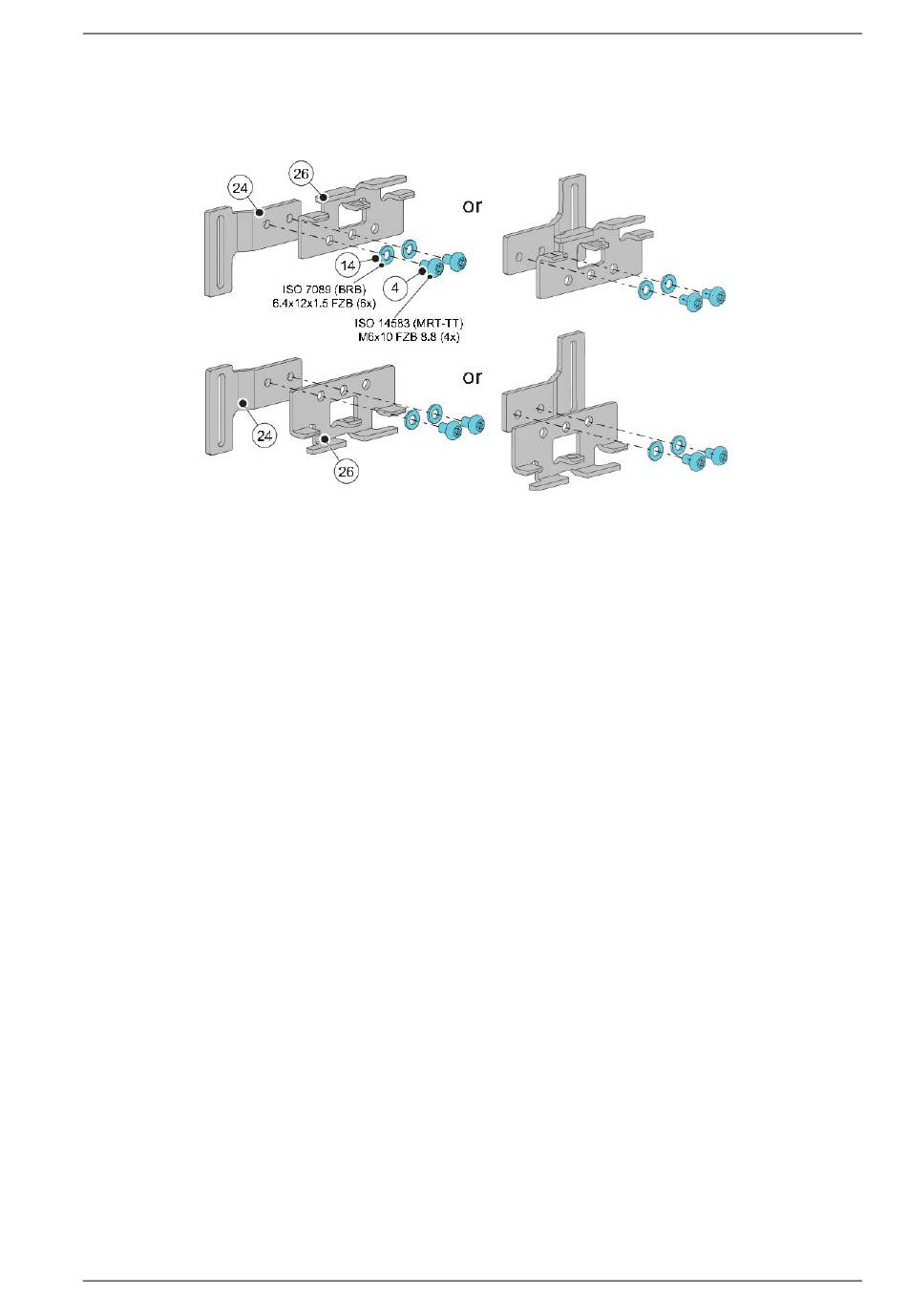

a Fix the transmission bracket (26) to the connecting bracket (24) with the screws (4) and
washers (14).
2.1.7
Attachment of slack reducer
Please refer to PSL150 Installation and Service Manual (1016248).
1018482-EMen-2.0
4
Screw: ISO 14583 (MRT-TT) M6x10 FZB 8.8
14
Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB
24
Connecting bracket
26
Transmission bracket
Issue 2019-07-13
