Entrematic Ditec KS200HD Installation Manual

Entrematic Ditec KS200HD Installation Manual

Sliding door operator retrofit kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Sliding Door Operator
Ditec KS200HD-KS200RG Retrofit Kit
Installation Manual
Original instructions
1019202-DIen-2.0 Issue 2019-12-24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ditec KS200HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Entrematic Ditec KS200HD

Summary of Contents for Entrematic Ditec KS200HD

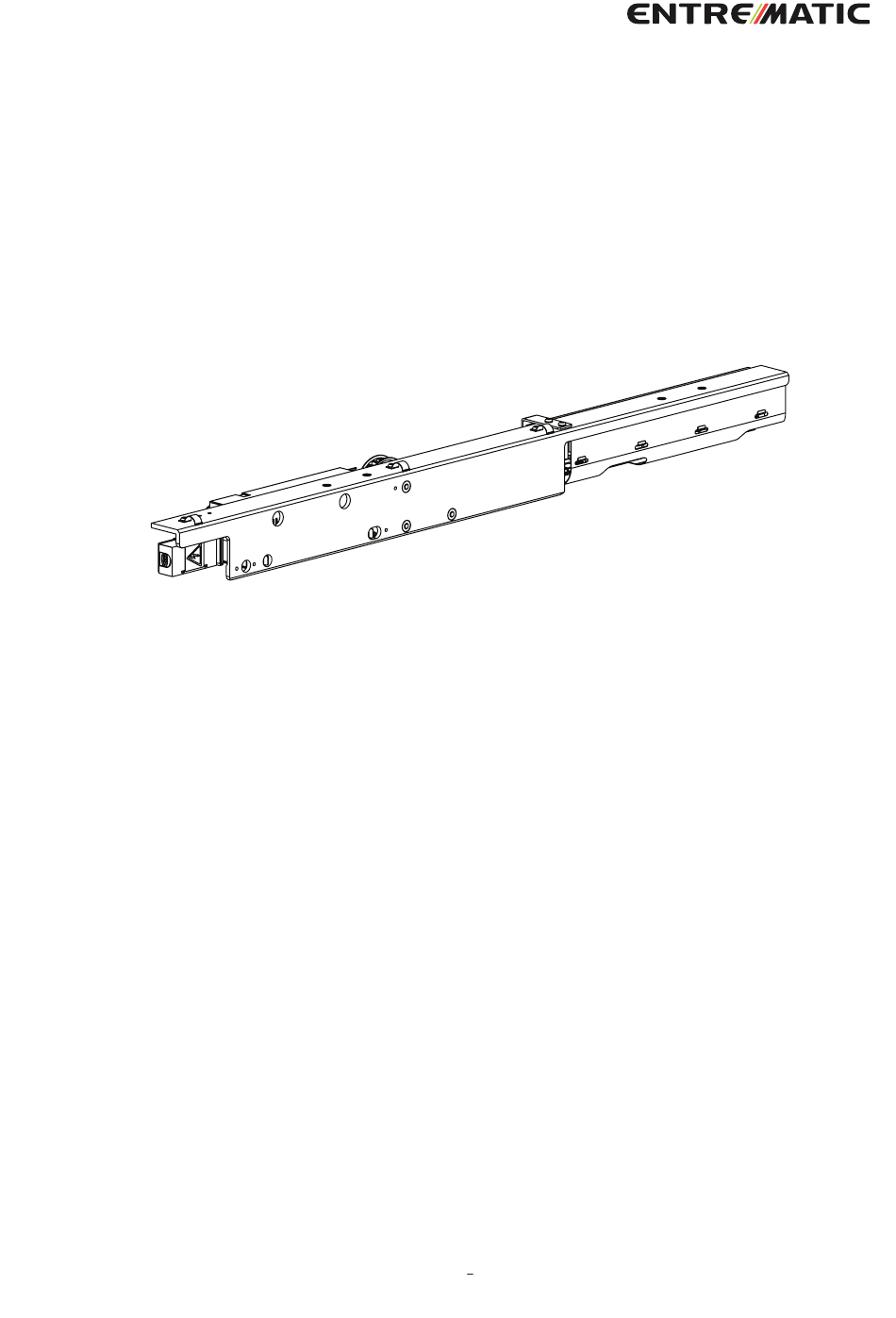

  • Page 1 Sliding Door Operator Ditec KS200HD-KS200RG Retrofit Kit Installation Manual Original instructions 1019202-DIen-2.0 Issue 2019-12-24...
  • Page 2 © All rights in and to this material are the sole property of Entrematic Group AB. Copying, scanning, alterations or modifications are expressly forbidden without the prior written consent of Entrematic Group AB. Rights reserved for changes without prior notice.
  • Page 3 CONTENTS - Original instructions Revision ..................................... Tools required ..................................Mechanical installation ................................ Ditec KS200HD replacement kit for non escape route universal solution Ditec KS200RG replacement kit for escape route universal solution ................3.1.1 Check the components and kits ..........................3.1.2 The IOU (KS902MP) and the battery (KS902BAT2) installation ..............
  • Page 4 3.1.12.43 Tormax TX/TM/TMX ..........................3.1.12.44 Tormax TEP/TXP ............................3.1.12.45 Waldoor EC ..............................3.1.12.46 Waldoor UC ..............................3.1.12.47 Waldoor UWS 800 ........................... 3.1.12.48 Waldoor UWS 2400 ..........................3.1.12.49 Ditec VALOR (escape route) ......................... 3.1.12.50 Ditec Bis O ..............................3.1.12.51 Ditec Bis V ..............................Ditec KS800BTX additional bracket kit for Tormax iMotion 2202 ................
  • Page 5 1 Revision Revision The following pages have been revised: Page Revision 1.0 → 2.0 Updated the length of backbone to fit the MUK package within 1.2m. Added battery as standard compontent. Updated the installation for IOU and battery in short backbone. Added new paragraph for limitations when using the belt lock.
  • Page 6 2 Tools required Tools required • Allen key 6 mm with spherical tip • Torx (T10 and T20) • Phillips screw driver • Multi/Wire cutter • Spanner 10mm • Tape measuring tool Issue 2019-12-24 1019202-DIen-2.0...
  • Page 7 3 Mechanical installation Mechanical installation Ditec KS200HD replacement kit for non escape route universal solution Ditec KS200RG replacement kit for escape route universal solution Note! Following are the common steps for connecting components, please refer to cross-view for each adapted door type.
  • Page 8 3 Mechanical installation Check KS800B1 kit x 10 x 40 x 10 x 10 x 12 Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Bracket 1 Mounting plate Square nut: M6 Nut: M6 Nut: ISO 4035 (ML6M) M6 FZB Screw: DIN 6921 (M6SF) M6x12 Screw: DIN 6921 (M6SF) M6x14 Screw: DIN 6921 (M6SF) M6x16 Screw: ISO 14583 (MRT-TT) M6x16...
  • Page 9 3 Mechanical installation Check KS800B2 kit Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Bracket 1 Mounting plate Screw: DIN 6921 (M6SF) M6x12 Screw: DIN 6921 (M6SF) M6x14 Screw: DIN 6921 (M6SF) M6x16 Screw: ISO 14583 (MRT-TT) M6x16 Bracket 2 1019202-DIen-2.0 Issue 2019-12-24...
  • Page 10 3 Mechanical installation Check KS800B3 kit x 18 Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Mounting plate Square nut: M6 Screw: DIN 6921 (M6SF) M6x14 Screw: ISO 14583 (MRT-TT) M6x16 Screw: ISO 14583 (MRT-TT) M6x35 Bracket 3 Spacer block Screw: DIN 6921 (M6SF) M6x10 Issue 2019-12-24 1019202-DIen-2.0...
  • Page 11 3 Mechanical installation Check KS800B4 kit x 16 x 24 Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Bracket 1 Screw: DIN 6921 (M6SF) M6x12 Screw: DIN 6921 (M6SF) M6x14 Screw: ISO 14583 (MRT-TT) M6x16 Screw: ISO 14583 (MRT-TT) M6x20 Screw: DIN 6921 (M6SF) M6x10 Bracket 4 Bracket 5 Nut: M6...
  • Page 12 3 Mechanical installation Check belt lock fixing bracket kit KSFB1LOCK Screw: ISO 14583 (MRT-TT) M6x10 Screw: DIN 6921 (M6SF) M6x8 Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Mounting plate Square nut: M6 Nut: M6 Nut: ISO 4035 (ML6M) M6 FZB Screw: DIN 6921 (M6SF) M6x12 Screw: DIN 6921 (M6SF) M6x14 Screw: DIN 6921 (M6SF) M6x16 Fixing bracket...
  • Page 13 3 Mechanical installation Check belt lock fixing bracket kit KSFB2LOCK Screw: ISO 14583 (MRT-TT) M6x10 Screw: DIN 6921 (M6SF) M6x8 Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Screw: DIN 6921 (M6SF) M6x14 Screw: DIN 6921 (M6SF) M6x16 Bracket 2 Screw: DIN 6921 (M6SF) M6x10 Bracket 4 Bracket 5 Nut: M6...
  • Page 14 3 Mechanical installation Check belt lock fixing bracket kit KSFB3LOCK Nut: M5 Belt guide Fixing bracket (belt lock) TORMAX iMotion 2202 Screw: ISO 14583 (MRT) M5x10 Screw: ISO 7046 (MFTS) M3x5 Check belt lock fixing bracket kit KSFB4LOCK Square nut: M6 Screw: DIN 6921 (M6SF) M6x10 Fixing bracket (belt lock) GEZE Slimdrive Issue 2019-12-24...
  • Page 15 3 Mechanical installation 3.1.2 The IOU (KS902MP) and the battery (KS902BAT2) installation Note! Select IOU when using bi-stable lock. Fix the IOU (7) and the battery (8) to the backbone assembly (12) with the screws (9). ISO 14583 (MRT) M4x6 (2x) ISO 14583 (MRT) M4x6 (2x) ISO 14583 (MRT)
  • Page 16 3 Mechanical installation 3.1.3 Fix the brackets to the backbone assembly The brackets in the picture is only an example, please choose the suitable brackets for the specified operator. a How to install the mounting plate. Please refer to the dimension on the surface of mounting plate (27) firstly.
  • Page 17 3 Mechanical installation b Assemble the mounting plate (27) and mounting bracket (28) with the washers (14) and screws (4). ISO 7089 (BRB) 6.4x12x1.5 FZB (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) Screw: ISO 14583 (MRT-TT) M6x10 Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Mounting plate Mounting bracket c Fix two screws (11) to the backbone assembly (12), don't tighten the screws (11).
  • Page 18 3 Mechanical installation d Fix the brackets to the backbone assembly (12), then tighten the screws (11) with a torque of 8 - 10 Nm. DIN 6921 (M6SF) M6x8 FZB 8.8 (2x) Screw: DIN 6921 (M6SF) M6x8 Backbone assembly Issue 2019-12-24 1019202-DIen-2.0...
  • Page 19 3 Mechanical installation 3.1.4 Fix the brackets to the tension wheel Fix the brackets to the tension wheel assembly (15) in the same way as 3.1.3 . DIN 6921 (M6SF) M6x8 FZB 8.8 (2x) Screw: DIN 6921 (M6SF) M6x8 Tension wheel assembly 3.1.5 Checking and adjusting the belt tension a Loosen the fixing screw (52) without removing it.
  • Page 20 3 Mechanical installation e Retighten the fixing screw (52) with a torque of 10 Nm. Note! Do not make any adjustment on the lock nut (54). 1-2 mm Tension wheel assembly Tooth belt Adjustment screw Tension wheel Fixing screw Screws Lock nut 3.1.6 Fix the brackets to the belt lock (option)
  • Page 21 3 Mechanical installation DIN 6921 (M6SF) M6x8 FZB 8.8 (2x) Screw: DIN 6921 (M6SF) M6x8 Belt lock 1019202-DIen-2.0 Issue 2019-12-24...
  • Page 22 3 Mechanical installation Limitated SBL (support beam length) for belt lock Bi-parting door (the belt lock is installed in the middle) Issue 2019-12-24 1019202-DIen-2.0...
  • Page 23 3 Mechanical installation Bi-parting door (the belt lock is installed on the right side of the beam) Note! Please refer to belt lock installation drawing (1019443). 2100 mm ≤ SBL ≤ 2164 mm (KS200HD) 2270 mm ≤ SBL ≤ 2334 mm (KS200RG) Opening right door Note! Belt lock is installed on the right side of the beam for following SBL.
  • Page 24 3 Mechanical installation 3.1.7 Fix the extension plate kit Note! The Extension plate is only needed when a belt lock shall be fitted in a door with small COW. Check the components Holding bracket Extension plate Screw: ISO 4014 (M6S) M4x10 Wiring harness Screw: ISO 14583 (MRT) M4x6 Issue 2019-12-24...
  • Page 25 3 Mechanical installation Fix IOU, battery and belt lock to extension plate Case 1 ISO 14583 (MRT) M4x6 (3x) Holding bracket Belt lock Screw: ISO 14583 (MRT) M4x6 Battery Extension plate 1019202-DIen-2.0 Issue 2019-12-24...
  • Page 26 3 Mechanical installation Case 3 ISO 14583 (MRT) M4x6 (5x) Holding bracket Belt lock Screw: ISO 14583 (MRT) M4x6 Battery Extension plate Issue 2019-12-24 1019202-DIen-2.0...
  • Page 27 3 Mechanical installation Case 4 ISO 14583 (MRT) M4x6 (5x) Holding bracket Belt lock Screw: ISO 14583 (MRT) M4x6 Battery Extension plate 1019202-DIen-2.0 Issue 2019-12-24...
  • Page 28 3 Mechanical installation Install the extension plate kit to the backbone ISO 14583 (MRT) M4x6 (1x) ISO 4014 (M6S) M4x10 (2x) Backbone assembly Screw: ISO 14583 (MRT) M4x6 Screw: ISO 4014 (M6S) M4x10 Extension plate Issue 2019-12-24 1019202-DIen-2.0...
  • Page 29 3 Mechanical installation 3.1.8 Fix the transmission bracket to the connecting bracket a Fix the transmission bracket (26) to the connecting bracket (24) with the screws (4) and washers (14). ISO 7089 (BRB) 6.4x12x1.5 FZB (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) Screw: ISO 14583 (MRT-TT) M6x10 Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB Connecting bracket...
  • Page 30 3 Mechanical installation 3.1.9 Attachment of slack reducer Attach the slack reducer between the eighth and ninth belt tooth on each side of the low transmis- sion bracket. If two slack reducers are needed put the second slack reducer in the same way under the upper transmissions bracket.
  • Page 31 3 Mechanical installation 3.1.10 General rules of the installation Position of the belt connecting to the transmission brackets. Bi-parting opening The transmission bracket (16) on the left door leaf shall be connected to the upper belt. The transmission bracket (16) on the right door leaf shall be connected to the lower belt. Transmission bracket Single left opening The transmission bracket (16) shall be connected to the upper belt.
  • Page 32 3 Mechanical installation For electrical connection, start up and parameter setting, please refer to DAS200 Installation Manual using the following QR code. https://www.ditecentrematic.com/Entrematic/ditecentrematicCOM/QR/Multilan- guages/DAS200/DitecDAS200.pdf Issue 2019-12-24 1019202-DIen-2.0...
  • Page 33 3 Mechanical installation 3.1.11 List of the adapted door types Item Operator Brand&Type Page Bracket kit Belt lock fixing bracket kit ATS CLIXMASTER KS800B1 ATS TSF 2100 KS800B1 Baumgartner Al-Profil KS800B1 Baumgartner steel KS800B2 DORMA ES 50 KS800B1 DORMA ES 55/60 KS800B1 DORMA ES 70 KS800B1...
  • Page 34 3 Mechanical installation Item Operator Brand&Type Page Bracket kit Belt lock fixing bracket kit Record STA19 KS800B4 Record STA20 KS800B4 KSFB2LOCK Record STA21 KS800B4 Tormax TMP KS800B1 Tormax TX/TM/TMX KS800B1 KSFB1LOCK Tormax TEP/TXP KS800B1 Waldoor EC KS800B1 Waldoor UC KS800B2 KSFB2LOCK Waldoor UWS 800 KS800B1...
  • Page 35 3 Mechanical installation 3.1.12 Adapted door types Note! Original nuts and bolts can be reused. ATS CLIXMASTER ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (6x) Square nut M6 (6x) DIN 6921 (M6SF) M6x14 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT)
  • Page 36 3 Mechanical installation ATS TSF 2100 Original or ISO 14583 (MRT-TT) ISO 7089 (BRB) Original or DIN 6921 (M6SF) M6x10 FZB 8.8 (6x) 6.4x12x1.5 FZB (6x) nut M6 (6x) M6x14 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (8x) Connecting bracket...
  • Page 37 3 Mechanical installation Baumgartner Al-Profil ISO 7089 (BRB) Original or 6.4x12x1.5 FZB (6x) square nut M6 (6x) DIN 6921 (M6SF) M6x16 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) Original or square nut M6 (4x) ISO 14583 (MRT-TT) M6x16 FZB 8.8 (4x)
  • Page 38 3 Mechanical installation Baumgartner steel Make M6 threads on the steel beam manually. original Original screws or DIN 6921 (M6SF) M6x12 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) Connecting bracket Mounting bracket Bracket 2 Issue 2019-12-24...
  • Page 39 3 Mechanical installation DORMA ES 50 ISO 7089 (BRB) 6.4x12x1.5 FZB (6x) Nut M6 (6x) DIN 6921 (M6SF) M6x14 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (24x) ISO 14583 (MRT-TT) ISO 14583 (MRT-TT) M6x20 FZB 8.8 (4x)
  • Page 40 3 Mechanical installation DORMA ES 55/60 ISO 7089 (BRB) 6.4x12x1.5 FZB (6x) Square nut M6 (6x) ISO 14583 (MRT-TT) DIN 6921 (M6SF) M6x10 FZB 8.8 (6x) M6x14 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) Square nut M6 (4x) ISO 14583 (MRT-TT) M6x16 FZB 8.8 (4x) ISO 14583 (MRT-TT)
  • Page 41 3 Mechanical installation DORMA ES 70 DIN 6921 (M6SF) M6x14 FZB 8.8 (6x) Square nut M6 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) Square nut M6 (4x) DIN 6921 (M6SF) M6x12 FZB 8.8 (4x) Connecting bracket Mounting bracket 1019202-DIen-2.0...
  • Page 42 3 Mechanical installation DORMA ES 90/100 DIN 6921 (M6SF) ISO 7089 (BRB) M6x14 FZB 8.8 (6x) 6.4x12x1.5 FZB (6x) Square nut M6 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (32x) ISO 14583 (MRT-TT) M6x20 FZB 8.8 (4x)
  • Page 43 3 Mechanical installation DORMA ES 200 ISO 14583 (MRT-TT) Square nut M6 (6x) M6x10 FZB 8.8 (6x) ISO 7089 (BRB) DIN 6921 (M6SF) 6.4x12x1.5 FZB (6x) M6x14 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x35 FZB 8.8 (4x) ISO 14583 (MRT-TT) Spacer block (2x)
  • Page 44 3 Mechanical installation ELDEBE GSX ISO 4035 (ML6M) ISO 7089 (BRB) M6 FZB (6x) 6.4x12x1.5 FZB (6x) DIN 6921 (M6SF) ISO 14583 (MRT-TT) M6x12 FZB 8.8 (6x) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) 13.5 ISO 7089 (BRB) 6.4x12x1.5 FZB (36x) ISO 14583 (MRT-TT) M6x25 FZB 8.8 (4x)
  • Page 45 3 Mechanical installation Nut (6x) DIN 6921 (M6SF) ISO 7089 (BRB) M6x14 FZB 8.8 (12x) 6.4x12x1.5 FZB (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) Square nut: M6 (4x) 14mm DIN 6921 (M6SF) M6x12 FZB 8.8 (4x) Connecting bracket Mounting plate...
  • Page 46 3 Mechanical installation DIN 6921 (M6SF) ISO 7089 (BRB) ISO 14583 (MRT-TT) M6x14 FZB 8.8 (12x) 6.4x12x1.5 FZB (6x) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) DIN 6921 (M6SF) M6x12 FZB 8.8 (4x) Square nut: M6 (4x) 14mm Connecting bracket Mounting plate...
  • Page 47 3 Mechanical installation Faiveley 6 Square nut M6 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (6x) DIN 6921 (M6SF) M6x14 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) Square nut M6 (4x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) DIN 6921 (M6SF)
  • Page 48 3 Mechanical installation Faiveley 12 Square nut M6 (6x) DIN 6921 (M6SF) ISO 7089 (BRB) M6x12 FZB 8.8 (6x) 6.4x12x1.5 FZB (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) Square nut M6 (4x) ISO 14583 (MRT-TT) DIN 6921 (M6SF) M6x10 FZB 8.8 (4x)
  • Page 49 3 Mechanical installation Faiveley 17 DIN 6921 (M6SF) ISO 4035 (ML6M) ISO 7089 (BRB) M6x14 FZB 8.8 (6x) M6 FZB (6x) 6.4x12x1.5 FZB (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x12 FZB 8.8 (4x) ISO 4035 (ML6M) M6 FZB (4x)
  • Page 50 3 Mechanical installation GEZE ECdrive DIN 6921 (M6SF) Square nut M6 (6x) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) ISO 14583 (MRT-TT) ISO 7089 (BRB) M6x16 FZB 8.8 (4x) 6.4x12x1.5 FZB (16x) Connecting bracket Bracket 1...
  • Page 51 3 Mechanical installation GEZE TSA 340 DIN 6921 (M6SF) Square nut M6 (6x) M6x14 FZB 8.8 (6x) 7.5 mm DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (20x) ISO 14583 (MRT-TT) M6x16 FZB 8.8 (4x) Connecting bracket Mounting bracket 1019202-DIen-2.0 Issue 2019-12-24...
  • Page 52 3 Mechanical installation GEZE TSA 350 N/350 W DIN 6921 (M6SF) Original T-nuts or M6x14 FZB 8.8 (6x) Square nut M6 (6x) ISO 4035 (ML6M) M6 FZB (4x) 12 mm DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) DIN 6921 (M6SF) M6x12 FZB 8.8 (4x) ISO 7089 (BRB) 6.4x12x1.5 FZB (32x)
  • Page 53 3 Mechanical installation GEZE TSA 360 Original T-nuts or DIN 6921 (M6SF) ISO 4035 (ML6M) Square nut M6 (6x) M6x14 FZB 8.8 (6x) M6 FZB 8.8 (4x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) DIN 6921 (M6SF) M6x12 FZB 8.8 (4x) ISO 7089 (BRB) 6.4x12x1.5 FZB (32x) ISO 14583 (MRT-TT)
  • Page 54 3 Mechanical installation GEZE TSA 450 Square nut M6 (6x) ISO 7089 (BRB) DIN 6921 (M6SF) 6.4x12x1.5 FZB (6x) M6x14 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x12 FZB 8.8 (4x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x)
  • Page 55 3 Mechanical installation Gilgen SLK/SLG DIN 6921 (M6SF) ISO 4035 (ML6M) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) M6 FZB (6x) M6x12 FZB 8.8 (6x) 9 mm DIN 6921 (M6SF) M6x10 FZB 8.8 (4x) ISO 7089 (BRB) 6.4x12x1.5 FZB (24x) ISO 14583 (MRT-TT) M6x20 FZB 8.8 (4x) Connecting bracket...
  • Page 56 3 Mechanical installation Gilgen SLM/SLP DIN 6921 (M6SF) ISO 4035 (ML6M) M6 FZB (6x) M6x12 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) DIN 6921 (M6SF) M6x10 FZB 8.8 (4x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) Connecting bracket Bracket 1 Mounting bracket Issue 2019-12-24...
  • Page 57 3 Mechanical installation HORTON Series 2001 Square nut ISO 7089 (BRB) M6 (6x) 6.4x12x1.5 FZB (6x) DIN 6921 (M6SF) ISO 14583 (MRT-TT) M6x14 FZB 8.8 (6x) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) 10.5 ISO 4035 (ML6M) M6 FZB (4x) ISO 7089 (BRB) 6.4x12x1.5 FZB (28x)
  • Page 58 3 Mechanical installation Manusa PA 80 ISO 7089 (BRB) 6.4x12x1.5 FZB (6x) ISO 14583 (MRT-TT) ISO 4035 (ML6M) M6x10 FZB 8.8 (6x) M6 FZB (6x) DIN 6921 (M6SF) M6x14 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) Square nut M6 (6x)
  • Page 59 3 Mechanical installation Manusa STK ISO 7089 (BRB) 6.4x12x1.5 FZB (6x) Original screws and nuts (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) Square nut M6 (4x) M6x16 FZB 8.8 (4x) DIN 6921 (M6SF) M6x12 FZB 8.8 (4x) ISO 7089 (BRB)
  • Page 60 3 Mechanical installation Manusa Visio DIN 6921 (M6SF) DIN 6921 (M6SF) M6x14 FZB 8.8 (6x) M6x8 FZB 8.8 (6x) Nut M6 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (12x) DIN 6921 (M6SF) M6x12 FZB 8.8 (4x) Connecting bracket Bracket 4 Issue 2019-12-24 1019202-DIen-2.0...
  • Page 61 3 Mechanical installation Portalp 2000B ISO 7089 (BRB) 6.4x12x1.5 FZB (6x) ISO 14583 (MRT-TT) Original screws M6x10 FZB 8.8 (6x) and nuts (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) DIN 6921 (M6SF) M6x12 FZB 8.8 (4x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (8x) Connecting bracket Bracket 1...
  • Page 62 3 Mechanical installation Porte Automatiche GTS-L/-P Square nut M6 (6x) DIN 6921 (M6SF) ISO 7089 (BRB) M6x14 FZB 8.8 (6x) 6.4x12x1.5 FZB (6x) 10.5 Make M6 threads on the original door carriers ISO 14583 (MRT-TT) DIN 6921 (M6SF) M6x10 FZB 8.8 (6x) M6x8 FZB 8.8 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (28x)
  • Page 63 3 Mechanical installation Porte Automatiche GTV ISO 7089 (BRB) ISO 4035 (ML6M) 6.4x12x1.5 FZB (6x) M6 FZB (6x) DIN 6921 (M6SF) M6x12 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (8x) DIN 6921 (M6SF) M6x14 FZB 8.8 (4x)
  • Page 64 3 Mechanical installation Record STA7 Make M6 threads on the steel beam manually. original Original screws or DIN 6921 (M6SF) M6x12 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) Original screws ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) Connecting bracket Mounting bracket Bracket 2...
  • Page 65 3 Mechanical installation Record STA8 Make M6 threads on the steel beam manually. original Original screws or DIN 6921 (M6SF) M6x12 FZB 8.8 (6x) Original screws DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (8x) Connecting bracket Bracket 1 Mounting bracket...
  • Page 66 3 Mechanical installation Record STA9/STA10 Make M6 threads on the steel beam manually. original Original screws or DIN 6921 (M6SF) M6x12 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) DIN 6921 (M6SF) M6x14 FZB 8.8 (4x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) Connecting bracket Bracket 1...
  • Page 67 3 Mechanical installation Record STA11 Square nut M6 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (6x) DIN 6921 (M6SF) M6x14 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) DIN 6921 (M6SF) M6x12 FZB 8.8 (4x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) Connecting bracket...
  • Page 68 3 Mechanical installation Record STA12/STA14 Steel Original screws or DIN 6921 (M6SF) M6x12 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 4035 (ML6M) M6 FZB (4x) DIN 6921 (M6SF) M6x14 FZB 8.8 (4x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) Connecting bracket Bracket 1 Mounting bracket...
  • Page 69 3 Mechanical installation Record STA12/STA14 AL Original or DIN 6921 (M6SF) Nut M6 M6x12 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 7089 (BRB) Nut M6 6.4x12x1.5 FZB (12x) DIN 6921 (M6SF) M6x14 FZB 8.8 (4x) ISO 14583 (MRT-TT) M6x16 FZB 8.8 (4x) Connecting bracket Bracket 1...
  • Page 70 3 Mechanical installation Record STA13 ISO 4035 (ML6M) DIN 6921 (M6SF) M6 FZB (6x) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) ISO 4035 (ML6M) M6x10 FZB 8.8 (4x) M6 FZB (4x) ISO 7089 (BRB) 6.4x12x1.5 FZB (4x) DIN 6921 (M6SF) M6x14 FZB 8.8 (4x)
  • Page 71 3 Mechanical installation Record STA15 ISO 4035 (ML6M) DIN 6921 (M6SF) M6 FZB (6x) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 4035 (ML6M) M6 FZB (4x) DIN 6921 (M6SF) M6x14 FZB 8.8 (4x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) Connecting bracket Bracket 1...
  • Page 72 3 Mechanical installation Record STA16/17 Note! * Cut the original beam to several pieces. Bi-parting 2/3 of the original beam for backbone assembly. 1/6 of the original beam for tension wheel. 1/6 of the original beam for belt lock. Left opening 2/3 of the original beam for backbone assembly.
  • Page 73 3 Mechanical installation Record STA19 DIN 6921 (M6SF) Nut M6 (6x) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (24x) ISO 14583 (MRT-TT) M6x20 FZB 8.8 (4x) Connecting bracket Bracket 4 1019202-DIen-2.0 Issue 2019-12-24...
  • Page 74 3 Mechanical installation Record STA20 DIN 6921 (M6SF) DIN 6921 (M6SF) Nut M6 (6x) M6x10 FZB 8.8 (6x) M6x8 FZB 8.8 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (8x) DIN 6921 (M6SF) M6x10 FZB 8.8 (4x) Connecting bracket Bracket 4 Issue 2019-12-24 1019202-DIen-2.0...
  • Page 75 3 Mechanical installation Record STA21 DIN 6921 (M6SF) DIN 6921 (M6SF) Nut M6 (6x) M6x10 FZB 8.8 (6x) M6x8 FZB 8.8 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (8x) DIN 6921 (M6SF) M6x12 FZB 8.8 (4x) Connecting bracket Bracket 4 1019202-DIen-2.0 Issue 2019-12-24...
  • Page 76 3 Mechanical installation Tormax TMP ISO 7089 (BRB) DIN 6921 (M6SF) 6.4x12x1.5 FZB (6x) M6x12 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (4x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (8x) Connecting bracket Bracket 1...
  • Page 77 3 Mechanical installation Tormax TX/TM/TMX Original screws or DIN 6921 (M6SF) M6x12 FZB 8.8 (6x) 117.5 DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (8x) Connecting bracket Bracket 1 Mounting bracket 1019202-DIen-2.0 Issue 2019-12-24...
  • Page 78 3 Mechanical installation Tormax TEP/TXP DIN 6921 (M6SF) ISO 7089 (BRB) M6x12 FZB 8.8 (6x) 6.4x12x1.5 FZB (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (20x) DIN 6921 (M6SF) M6x16 FZB 8.8 (4x) Connecting bracket Mounting plate...
  • Page 79 3 Mechanical installation Waldoor EC 152.4 DIN 6921 (M6SF) M6x12 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) Connecting bracket Mounting bracket 1019202-DIen-2.0 Issue 2019-12-24...
  • Page 80 3 Mechanical installation Waldoor UC ISO 7089 (BRB) ISO 14583 (MRT-TT) DIN 6921 (M6SF) ISO 7089 (BRB) 6.4x12x1.5 FZB (18x) M6x10 FZB 8.8 (6x) M6x14 FZB 8.8 (6x) 6.4x12x1.5 FZB (6x) DIN 6921 (M6SF) M6x12 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (8x)
  • Page 81 3 Mechanical installation Waldoor UWS 800 ISO 4035 (ML6M) ISO 7089 (BRB) M6 FZB(6x) 6.4x12x1.5 FZB (6x) ISO 14583 (MRT-TT) DIN 6921 (M6SF) M6x10 FZB 8.8 (6x) M6x12 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (8x) Connecting bracket Bracket 1...
  • Page 82 3 Mechanical installation Waldoor UWS 2400 ISO 14583 (MRT-TT) ISO 7089 (BRB) M6x10 FZB 8.8 (6x) 6.4x12x1.5 FZB (6x) 10.5 DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (28x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (8x) Connecting bracket Bracket 1 Mounting bracket...
  • Page 83 3 Mechanical installation Ditec VALOR (escape route) ISO 4035 (ML6M) ISO 7089 (BRB) M6 FZB (6x) 6.4x12x1.5 FZB (6x) DIN 6921 (M6SF) M6x12 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (6x) ISO 7089 (BRB) 6.4x12x1.5 FZB (40x) ISO 14583 (MRT-TT)
  • Page 84 3 Mechanical installation Ditec Bis O ISO 4035 (ML6M) ISO 7089 (BRB) M6 FZB (6x) 6.4x12x1.5 FZB (6x) ISO 14583 (MRT-TT) DIN 6921 (M6SF) M6x10 FZB 8.8 (6x) M6x12 FZB 8.8 (6x) Cut Line Original screws DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) Connecting bracket...
  • Page 85 3 Mechanical installation Ditec Bis V ISO 4035 (ML6M) ISO 7089 (BRB) M6 FZB (6x) 6.4x12x1.5 FZB (6x) ISO 14583 (MRT-TT) DIN 6921 (M6SF) M6x10 FZB 8.8 (6x) M6x12 FZB 8.8 (6x) DIN 6921 (M6SF) M6x8 FZB 8.8 (6x) ISO 14583 (MRT-TT) M6x10 FZB 8.8 (4x) ISO 7089 (BRB) 6.4x12x1.5 FZB (20x)
  • Page 86 3 Mechanical installation Ditec KS800BTX additional bracket kit for Tormax iMotion 2202 3.2.1 Preparing the components • Components of KS200 x 16 x 16 Tooth belt Slack reducer (Not needed, if belt lock equipped) Belt clamp Backbone assembly Universal transmission bracket Issue 2019-12-24 1019202-DIen-2.0...
  • Page 87 3 Mechanical installation • Components of TORMAX iMotion 2202 Belt Tension Screw: ISO 14583 (MRT) M5x10 Nut: DIN 985 M6 (M6M) Nut: M6 Screw: ISO 14581 (MFT) M6x12 Drive unit plate Transmission bracket Electronic mounting plate Nut: M5 1019202-DIen-2.0 Issue 2019-12-24...
  • Page 88 3 Mechanical installation 3.2.2 Preparing a Dismount the original drive system, following components should be retained: door carriers (1), beam (2), cover set (3), door stops (4), cable holders (5), nuts (11) and screws (12). Note! If there are not enough nuts (11) and screws (12), use the nuts (35) and the screws (36) to replace.
  • Page 89 3 Mechanical installation 3.2.3 The IOU (KS902MP) and the battery (KS902BAT2) installation Note! IOU must be selected when bi-stable. a Remove the brackets for the IOU and battery. Fix the IOU and the battery (8) to the main control assembly (14) with the screws (9) and (10). ISO 14583 (MRT) ISO 14583 (MRT-TT) M4x6 (2x)
  • Page 90 3 Mechanical installation 3.2.4 Fix the nuts and screws on the drive unit kit and the main control assembly a Take off the drive unit from the Backbone assembly (40), then fix it onto drive unit plate (57) with the original screws and washeres. Backbone assembly Drive unit plate Issue 2019-12-24...
  • Page 91 3 Mechanical installation b Take off the PSU from the Backbone assembly (40), then fix it onto drive unit plate (57) with the original screws and other components. Backbone assembly Drive unit plate 1019202-DIen-2.0 Issue 2019-12-24...
  • Page 92 3 Mechanical installation c Take off the MCU from the Backbone assembly (40), then fix it onto electronic mounting plate (58) with the original screws and washeres. Backbone assembly Electronic mounting plate Issue 2019-12-24 1019202-DIen-2.0...
  • Page 93 3 Mechanical installation d Fix the nuts (11) to the drive unit kit (13) and main control assembly (14) with screws (12), but do not tighten the screws (12). M5x10 (3x) M5x10 (2x) Nut: M5 Screw: M5x10 Drive unit kit (HD or DD) Main control assembly 1019202-DIen-2.0 Issue 2019-12-24...
  • Page 94 3 Mechanical installation 3.2.5 Fix the drive unit kit and the main control assembly a Lift the drive unit kit (13) and main control assembly (14) to the beam (2), Then tighten the screws (12) with a torque of 6 Nm. Beam Nut: M5 Screw: M5x10...
  • Page 95 3 Mechanical installation 3.2.6 Fix the tension wheel assembly a Fix the nuts (11) to the tension wheel assembly (15) with screws (12), but do not tighten the screws (12). Lift the tension wheel assembly (15) to the beam (2), do not tighten the screws (12) fully, so it shall be able to slide along the beam (2).
  • Page 96 3 Mechanical installation 3.2.7 Fix the transmission brackets a Unscrew the existing screws (24), fix the transmission brackets (27) and the universal transmis- sion brackets (28) to the door carriers (1) with the screws (24) and (26). Note! The door leaves should be holded firmly when unscrew the the existing screws (24) on the door carriers (1).
  • Page 97 3 Mechanical installation 3.2.8 Placement of the transmission brackets Bi-parting opening The transmission bracket (16) on the left door leaf shall be connected to the inner belt. The transmission bracket (16) on the right door leaf shall be connected to the outer belt. Transmission bracket Single left opening The transmission bracket (16) shall be connected to the inner belt.
  • Page 98 3 Mechanical installation 3.2.9 Attachment of the tooth belt a Cut the tooth belt (18) to the right length if needed. Route the tooth belt (18) around the drive unit pulley (19) and around the tension wheel assembly (15). b For bi-parting doors the belt ends are joined with the belt clamp (20) in the outer part of the tooth belt (18).
  • Page 99 3 Mechanical installation 3.2.10 Checking and adjusting the belt tension a Loosen the fixing screw (32) without removing it. b Screw the adjustment screw (33) to its outmost position. c Tension the tooth belt (18) by pulling the tension wheel assembly (15) by hand. Tighten the screws (12) with a torque of 6 Nm.
  • Page 100 3 Mechanical installation 3.2.11 Bi-parting operators a Put doors in fully closed position. Make sure that the doors trailing edge is align with the side light. b Click the belt clamp (20) into position in the inner transmission bracket (16). c Check door panels for proper centering in the fully closed and opened positions.
  • Page 101 3 Mechanical installation 3.2.12 Attachment of slack reducer Attach the slack reducer between the eighth and ninth belt tooth on each side of the low transmis- sion bracket. If two slack reducers are needed put the second slack reducer in the same way under the upper transmissions bracket.
  • Page 102 3 Mechanical installation 3.2.13 Install the belt lock (KSFB3LOCK) (option) a Fix the nuts (11) to the belt lock (21) with screws (12), but do not tighten the screws (12). Lift the tooth belt lock (21) to the beam (2), then tighten the screws (12) with a torque of 6 b Fix the belt to belt lock (21).
  • Page 103 3 Mechanical installation For electrical connection, start up and parameter setting, please refer to DAS200 Installation Manual using the following QR code. https://www.ditecentrematic.com/Entrematic/ditecentrematicCOM/QR/Multilan- guages/DAS200/DitecDAS200.pdf KS800BGZ additional bracket kit for GEZE Slimdrive SL NT 3.3.1 Preparing the components • Components of KS200...
  • Page 104 3 Mechanical installation • Components of GEZE Slimdrive Screw: ISO 14583 (MRT) M4x6 Cable bracket (Use them to replace if needed.) Screw: ISO 14585 ST 4.2x9.5 Screw: ISO 4014 (M6S) M6x8 Screw: ISO 14581 (MFT) M6x12 Screw: DIN 6921 (M6SF) M6x10 Nut: M6 Tension wheel assembly Screw: ISO 14583 (MRT) M5x10...
  • Page 105 3 Mechanical installation 3.3.2 Preparing a Dismount the original drive system, following components should be retained: door carriers (1), beam (2), cover set (3), square nuts (4), door stops (5) and extension beams (6). Note! If there are not enough square nuts (4), use the nuts (37) to replace. Door carrier Beam Cover set...
  • Page 106 3 Mechanical installation 3.3.3 Exchange the extension beams a Exchange the extension beams (6). Extension beam Issue 2019-12-24 1019202-DIen-2.0...
  • Page 107 3 Mechanical installation 3.3.4 Fix the PSU (power supply unit) and drive unit kit a Take off the PSU from the Backbone assembly (40), then fix it onto PSU bracket (41) with the original screws and washeres. Backbone assembly PSU bracket 1019202-DIen-2.0 Issue 2019-12-24...
  • Page 108 3 Mechanical installation b Take off the drive unit from the Backbone assembly (40), then fix it onto drive motor mounting plate (42) with the original screws, washeres and other components. Backbone assembly Drive motor mounting plate Issue 2019-12-24 1019202-DIen-2.0...
  • Page 109 3 Mechanical installation c Fix the PSU (14) and the drive unit kit (13) onto the extension beam (6) with screws (12). Then tighten the screws (12) with a torque of 10 Nm. DIN 6921 (M6SF) M6x10 (4x) Square nut: M6 Extension beam Screw: DIN 6921 (M6SF) M6x10 Drive unit kit...
  • Page 110 3 Mechanical installation 3.3.5 Fix the mounting plate and MCU (control unit) a Fix the mounting plate (24) to the extension beam (6) with screws (25), then fix the MCU (26) onto the mounting plate (24) with the original screws (9) and washeres. ISO 7046 (MFX) M6x10 (2x) ISO 14583 (MRT)
  • Page 111 3 Mechanical installation 3.3.6 IOU (KS902MP) and the battery (KS902BAT2) installation Note! The IOU must be selected when bi-stable. a Remove the brackets for the IOU and battery. b Fix the IOU (7) and the battery (8) to the mounting plate (24) with screws (9) and (10). ISO 14583 (MRT-TT) M4x55 (4x) ISO 14583 (MRT)
  • Page 112 3 Mechanical installation 3.3.7 Fix the tension wheel assembly a Fix the tension wheel assembly (15) to the extension beam (6) with the screws (32), do not tighten the screws (32) fully, so it shall be able to slide along the extension beam (6). b The position of the tension wheel assembly (15) should be as close as possible to the drive unit, but make sure that the tension wheel assembly (15) will not interfere with the door carrier when the door is fully opened.
  • Page 113 3 Mechanical installation 3.3.8 Fix the transmission brackets a Unscrew the existing screws (29), fix the transmission brackets (27) and the universal transmis- sion brackets (28) to the door carriers (1) with the existing screws (29) and the screws (11). Note! If there are not enough existing screws (29), use the screws (38) to replace.
  • Page 114 3 Mechanical installation 3.3.9 Placement of the transmission brackets Bi-parting opening The transmission bracket (16) on the left door leaf shall be connected to the upper belt. The transmission bracket (16) on the right door leaf shall be connected to the lower belt. Transmission bracket Single left opening The transmission bracket (16) shall be connected to the upper belt.
  • Page 115 3 Mechanical installation 3.3.10 Attachment of the tooth belt a Cut the tooth belt (18) to the right length if needed. Route the tooth belt (18) around the drive unit pulley (19) and around the tension wheel assembly (15). b For bi-parting doors the belt ends are joined with the belt clamp (20) in the lower part of the tooth belt (18).
  • Page 116 3 Mechanical installation 3.3.11 Checking and adjusting the belt tension a Loosen the fixing screw (34) without removing it. b Screw the adjustment screw (35) to its outmost position. c Tension the tooth belt (18) by pulling the tension wheel assembly (15) by hand. Tighten the screws (32) with a torque of 10 Nm.
  • Page 117 3 Mechanical installation 3.3.12 Bi-parting operators a Put doors in fully closed position. Make sure that the doors trailing edge is align with the side light. b Click the belt clamp (20) into the transmission bracket (16) on upper. c Check door panels for proper centering in the fully closed and opened positions. Tension wheel assembly Transmission bracket Tooth belt...
  • Page 118 3 Mechanical installation 3.3.13 Attachment of slack reducer Attach the slack reducer between the eighth and ninth belt tooth on each side of the low transmis- sion bracket. If two slack reducers are needed put the second slack reducer in the same way under the upper transmissions bracket.
  • Page 119 3 Mechanical installation 3.3.14 Install the belt lock (KSFB4LOCK) (option) a Fix the belt lock (21) to the extension beam (6) with screws (12). Then tighten the screws (12) with a torque of 10 Nm. Note! * Cut the extension beam to smaller pieces. Bi-parting 2/3 of the extension beam for backbone assembly.
  • Page 120 Fix the cable bracket (30) to the beam (2) with screws (31). ISO 14585 ST 4.2x9.5 (5x) Beam Cable bracket Screw: ISO 14585 ST 4.2x9.5 For electrical connection, start up and parameter setting, please refer to DAS200 Installation Manual using the following QR code. https://www.ditecentrematic.com/Entrematic/ditecentrematicCOM/QR/Multilan- guages/DAS200/DitecDAS200.pdf Issue 2019-12-24 1019202-DIen-2.0...
  • Page 122 Entrematic Group AB, Lodjursgatan 10, SE-261 44 Landskrona, Sweden www.entrematic.com...

This manual is also suitable for:

Ditec ks200rgDitec ks200hd replacement kitDitec ks200rg replacement kit
