Swing Door Operator
EM PSW250
User Manual
Original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM PSW250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Entrematic EM PSW250

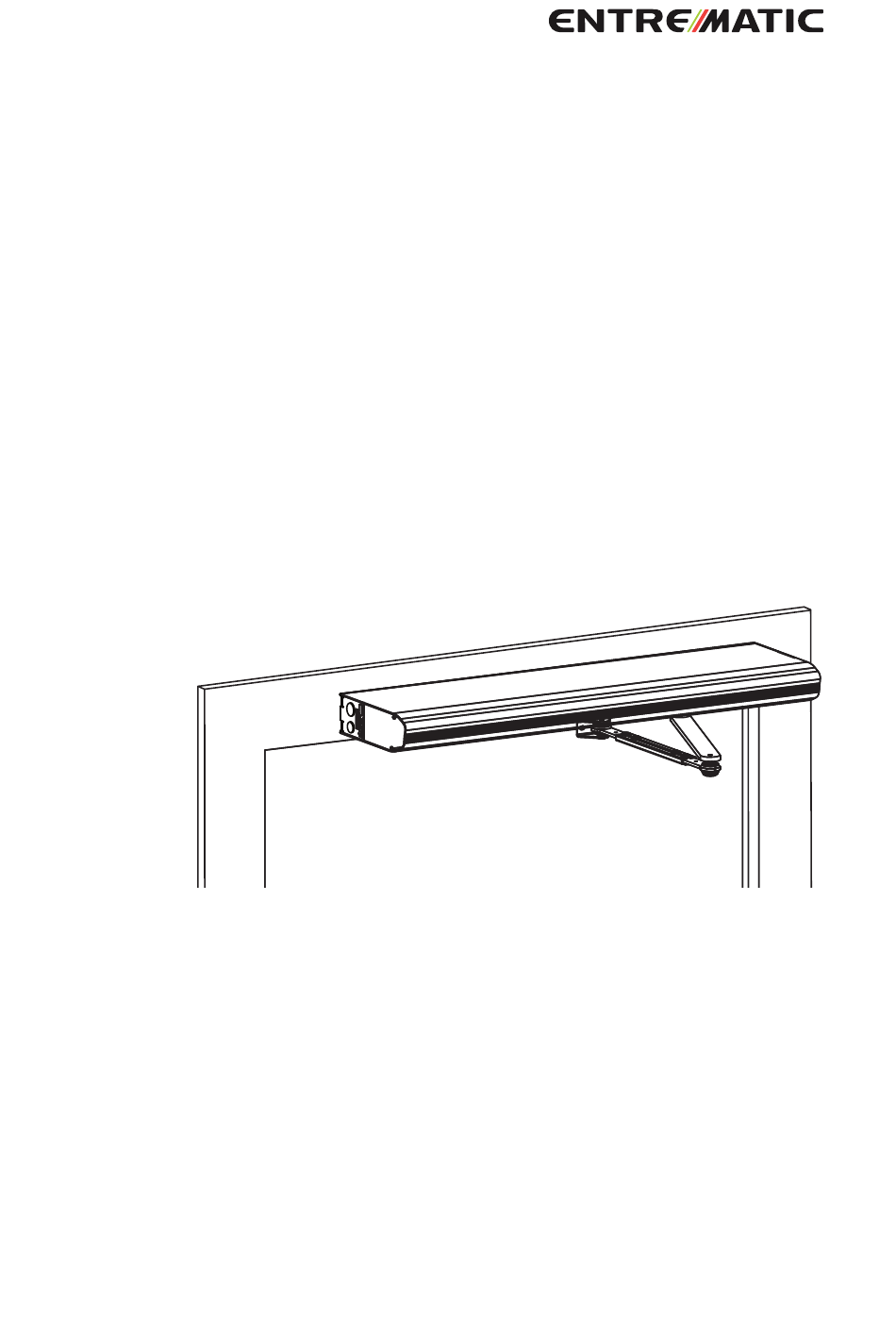

  • Page 1 Swing Door Operator EM PSW250 User Manual Original instructions...
  • Page 2: Table Of Contents

    Other products from Entrematic Group ..................Declaration of conformity ........................ © All rights in and to this material are the sole property of Entrematic Group AB. Copying, scanning, alterations or modifications are expressly forbidden without the prior written consent of Entrematic Group AB. Rights reserved for changes without prior notice.
  • Page 3: Instructions For Safe Operation

    Instructions for safe operation Failure to observe the information in this manual may result in personal injury or damage to equipment. To reduce the risk of injury to persons - use this oper- ator with single or double pedestrian swinging or folding doors only.
  • Page 4: Congratulations On Your New Automatic Door

    Congratulations on your new automatic door! Entrematic Group AB has developed automatic doors for more than 50 years. State-of-the-art tech- nology and carefully tested materials and components provide you with a superior product. As with all other technical products, your automatic door requires periodic maintenance and service.
  • Page 5: Service

    The EM PSW250 is an automatic swing door operator developed to make life easier for everyone who can benefit from automatic doors. The EM PSW250 is a low-energy as well as a full power oper- ator using a DC motor and a gear-reduction system to drive an arm system, which opens the door.
  • Page 6: How The Em Psw250 Works

    The EM PSW250 can be set in three or four different modes, depending on programme selector type, see table below. In fully manual use (or in case of a power failure) the EM PSW250 acts as a normal door closer. Position...
  • Page 7: Regular Safety Checks

    The door must not hit you when opening nor when closing. If you are unsure of which type of sensor you have, please contact your Entrematic Group rep- resentative.
  • Page 8 CLEANING The best way to remove dust and dirt from the EM PSW250 is to use water and a soft cloth or a sponge. A gentle detergent may be used. To maintain the quality of the surface treatment, the surfaces should be cleaned once/four months period.
  • Page 9 Product label: Mandatory Emergency break-out: Mandatory, if approved for escape route. Entrematic Group door sticker: Mandatory, if applicable to highlight the presence of the glass (applied to all glass sections that are moving). Supervision of child (applied to both sides of the door): Mandatory according to national regulations.
  • Page 10: General Accessories

    Door stop (not illustrated) Safety accessories Even though the EM PSW250 is installed to comply with all applicable safety regulations, it is possible to enhance safety/comfort with the following add-ons (please contact your local Entrematic Group company for detailed description).
  • Page 11: Service/Maintenance

    Service/Maintenance Service and adjustments performed by your Entrematic Group-authorized representative will ensure safe and proper operation of your automatic door unit. Remember to keep “Service Log Book” and “Site Acceptance Test and Risk Assessment” documents available. These are used together.
  • Page 12: Declaration Of Conformity

    DIN 18263-4:1997 EN 1158:1997+A1:2002+AC:2006 EN 1634-1:2008 EC type examination or certificate issued by a notified or competent body (for full address, please contact Entrematic Group AB) concerning the equipment: SC1323-13 The manufacturing process ensures the compliance of the equipment with the technical file. The manufacturing process is regularly assessed by 3rd party.
  • Page 14 Entrematic Group AB, Lodjursgatan 10, SE-261 44 Landskrona, Sweden Tel: +46 10 47 48 300 www.entrematic.com info.em@entrematic.com...
