2.5.10

Bi-parting operators (for fast door leaves)

a Put doors in fully closed position. Make sure that the doors trailing edge is align with the side
light.
b Click the belt clamp (20) into position in the inner transmission bracket (16).
c Check door panels for proper centering in the fully closed and opened positions.
2.5.11

Attachment of slack reducer

Please refer to PSL150 Installation and Service Manual (1016248).
For electrical connection, start up and parameter setting, please refer to PSL150 Installation and
Service Manual (1016248).
1018482-EMen-2.0

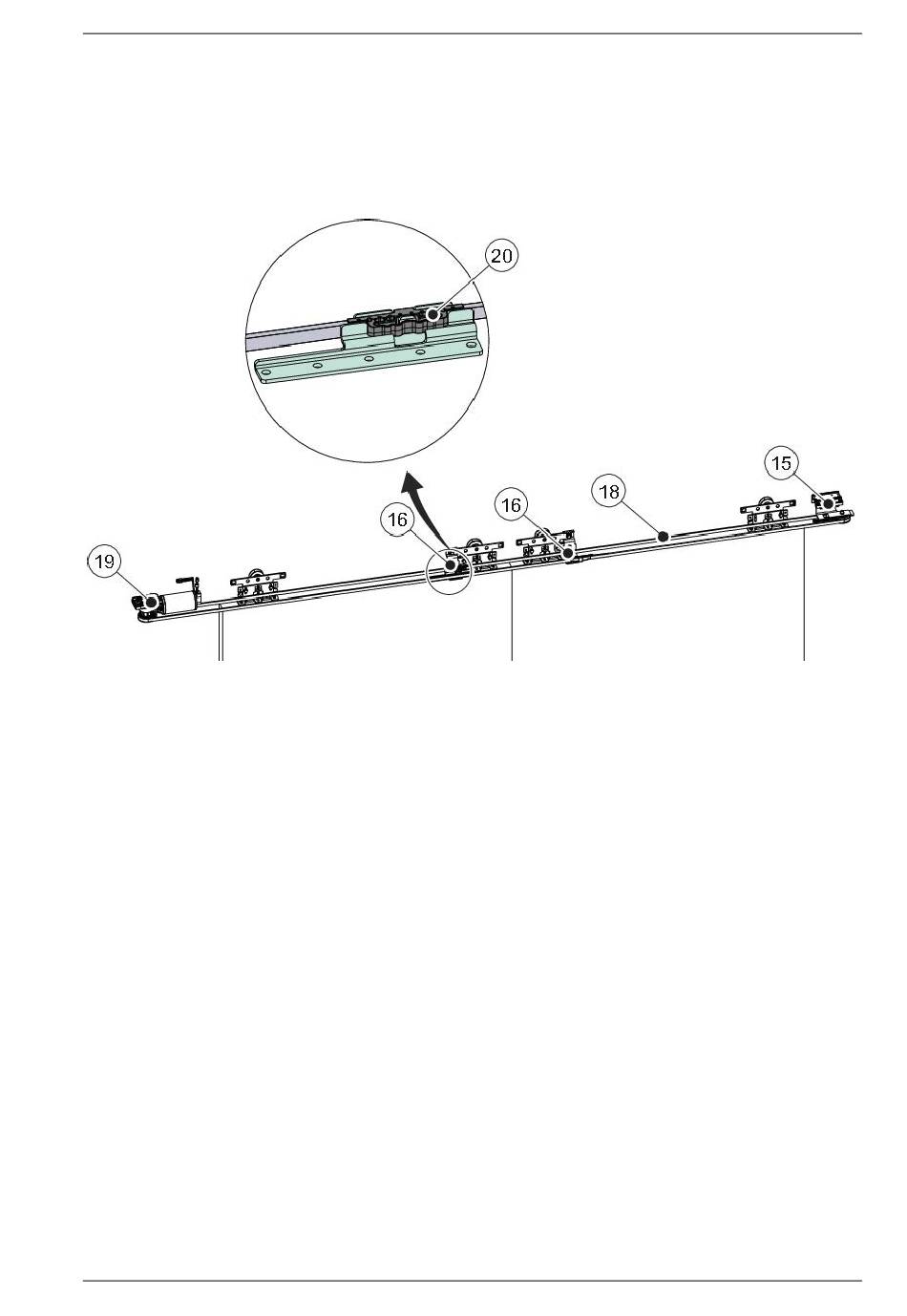

15 Tension wheel assembly
16 Transmission bracket
18 Tooth belt
19 Drive unit pulley
20 Belt clamp
Issue 2019-07-13
2 Mechanical installation
125
