Entrematic PSL Retrofit Kit for Entrematic EMSL
2.4.1
Check the components

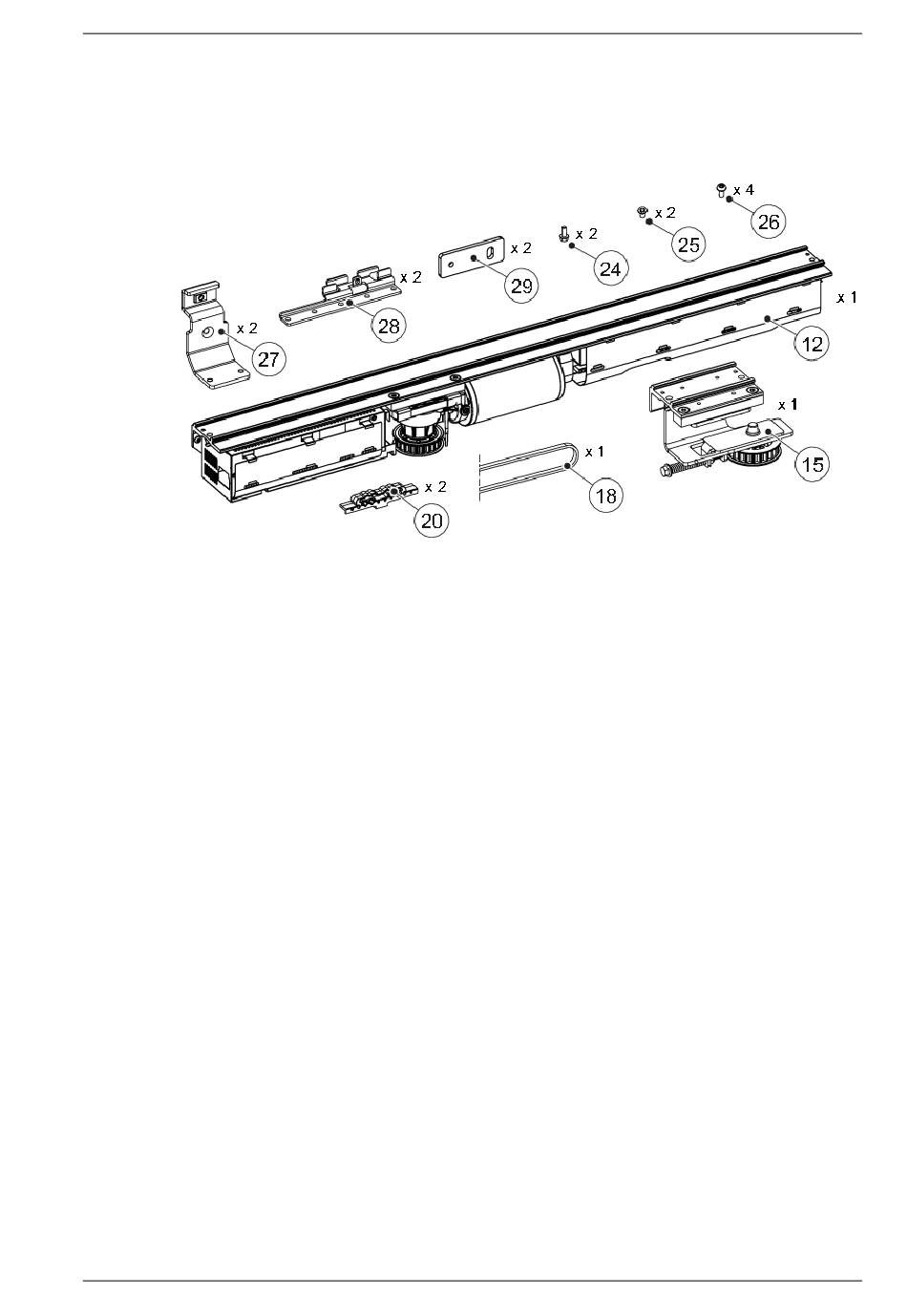

Check the components in the package as following.
1018482-EMen-2.0
12
Backbone assembly
15
Tension wheel assembly
18
Tooth belt
20
Belt clamp
24
Screw: DIN 6921 (M6SF) M6x14
25
Screw: ISO 10642 (MF6S) M6x8
26
Screw: ISO 14853 (MRT) M6x12
27
Connector bracket
28
Belt holder bracket
29
Reinforcement plate
Issue 2019-07-13
2 Mechanical installation
105
