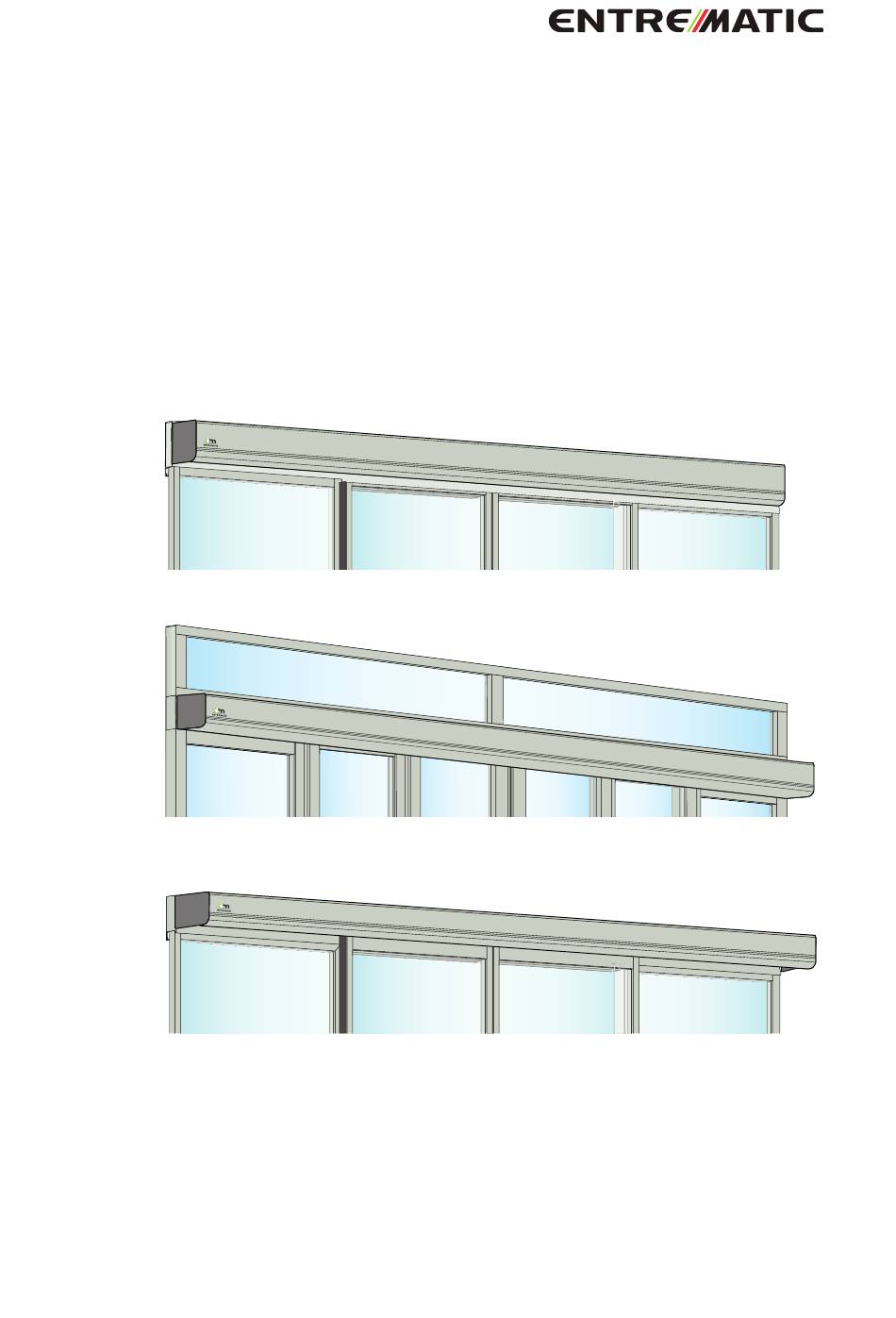

- Page 1 Sliding Door Operator EM PSL150, PSL150-T, PSL100 User Manual Original instructions...
-
Page 2: Table Of Contents
Environmental requirements ......................Product liability ........................... Service ..............................Intended use ........................................................Technical specification ........................How the EM PSL150, EM PSL150-T and EM PSL100 work ............Locking ..............................Unlocking ............................... Operation mode selectors ....................... Functions ........................Access codes and flashing light ................ - Page 3 Other products from Entrematic Group ..................Declaration of conformity ........................ © All rights in and to this material are the sole property of Entrematic Group AB. Copying, scanning, alterations or modifications are expressly forbidden without the prior written consent of Entrematic Group AB. Rights reserved for changes without prior notice.
-
Page 4: Instructions For Safe Operation
Instructions for safe operation Failure to observe the information in this manual may result in personal injury or damage to equipment. To reduce the risk of injury of persons - use this oper- ator only with pedestrian doors. Do not use the equipment if repair or adjustment is necessary. -
Page 5: Congratulations On Your New Automatic Door
Environmental requirements Entrematic Group products are equipped with electronics and may also be equipped with batteries containing materials which are hazardous to the environment. Disconnect power before removing electronics and battery and make sure it is disposed of properly according to local regulations (how and where) as was done with the packaging material. -
Page 6: Service
Talk to your Entrematic Group representative to learn more about our service offering. Intended use The EM PSL150, EM PSL150-T and EM PSL100 are automatic sliding door operators developed to fa- cilitate entrances to buildings and within buildings through sliding doors. -
Page 7: How The Em Psl150, Em Psl150-T And Em Psl100 Work
The closing starts when no OPENING IMPULSE is received and the HOLD OPEN TIME has expired. The EM PSL150, EM PSL150-T and EM PSL100 user can select five different modes of operation if a programme selector is installed. See Operation mode selectors on page 8. -
Page 8: Operation Mode Selectors
Operation mode selectors The door functions are set with different operate mode selectors. The operation mode selector is available with 5 buttons (plus RESET). The key on the PS-6 mode selector must always be removed on emergency escape doors after changing settings. -
Page 9: Access Codes And Flashing Light
Note! If monitored emergency unit is a demand, a test of the emergency unit is performed when the operate mode selector is set from OFF or OPEN to any other operation mode. CM-No. Done Date 12-586 SEJOB Access codes and flashing light Codes Flashing light... -
Page 10: Integrated Safety
Integrated safety To permit a safe passage between closing doors, the doors reverse immediately if an obstruction is detected. They then resume their interrupted movement at low speed to check whether the obstruc- tion has disappeared or not. If an obstruction is detected between opening doors and surrounding walls or interior fittings, the doors stop immediately, and then close after a time delay. -
Page 11: Technologically Advanced Sensors
Technologically advanced sensors The Entrematic Group sensors have been tested and approved by the Entrematic Group test labor- atory for use on Entrematic Group's automatic sliding doors. These presence sensors further improve the already high obstruction detection obtained with the built in self-monitored crush force limitation. -
Page 12: How To Check Your Side Presence Detector(S)
Open the door and move your hand from one side (right/left) into the inner door face presence field. Keep it motionless for several seconds at about 30 cm over the floor level. The door should remain open as long as you are within the detection area. Repeat the same procedure on the outer door face. -
Page 13: Emergency Escape
Emergency escape The operator can be fitted with different emergency escape units to ensure a safe evacuation of the building. Break-out unit PSB The door leaves and the side screens are swung outwards when a defined pressure is applied. The break-out function can also be used to create a wider opening. From the fully swung out position, the door leaves can be manually slid sideways, offering the possibility to transport wide objects through the opening, or to make a shop entrance more inviting during good weather. -
Page 14: Regular Safety Checks
Check the safety sensors if any. If you are unsure of which type of sensor you have, please contact your Entrematic Group repres- entative. If the operator is equipped with break-out system, set the programme se- lector to AUTO mode. - Page 15 FUNCTION AND VISUAL INSPECTION 10 11 Click! ILL-01798 ≥ 25 CLEANING A gentle detergent may be used. To maintain the quality of the enamel layer, the surfaces should be cleaned once/four months period. The cleaning should be documented. To avoid damages to the profiles the brushes/weather stripping must be vacuum-cleaned weekly.
- Page 16 Product label: Mandatory Emergency break-out: Mandatory, if approved for escape route. Entrematic Group door sticker: Mandatory, if applicable to highlight the presence of the glass (applied to all glass sections that are moving). Supervision of child: Mandatory, if applicable (applied to both sides of the door). To be placed on entrances where the risk analysis shows use by children, elderly and disabled.
-
Page 17: Safety Accessories
Safety accessories Even though the EM PSL150, EM PSL150-T and EM PSL100 are installed to comply with all applicable safety regulations, it is possible to enhance safety/comfort with the following add-ons (please contact your local Entrematic Group company for detailed description). - Page 18 Electrical emergency unit with batteries and two motors Used if a door is required to be opened by means of a rechargeable battery unit and remain in this position in the event of power failure. Authorities can demand that the emergency unit is monitored on a regular time basis.
- Page 19 Reset the operator by pushing the AUTO-symbol on the mode selector and then push a narrow object on the globe of the logotype on the operator mode selector. Allow the operator to control the closed position without interruption. If the problem continues, please contact your Entrematic Group representative. 1009216-EMEI-4.0 Issue 2016-03-14...
- Page 20 Service/Maintenance Service and adjustments performed by your Entrematic Group-authorized representative will ensure safe and proper operation of your automatic door unit. Remember to keep “Service Log Book” and “Site Acceptance Test and Risk Assessment” documents available. These are used together.
- Page 21 EN 60335-2-103 IEC 60335-2-103 IEC 60335-1 EC type examination or certificate issued by a notified or competent body (for full address, please contact Entrematic Group AB) concerning the equipment: UL File E47833 The manufacturing process ensures the compliance of the equipment with the technical file. The manufacturing process is regularly assessed by 3rd party.
- Page 22 Entrematic Group AB, Lodjursgatan 10, SE-261 44 Landskrona, Sweden Tel: +46 10 47 48 300 Fax: +46 418 201 15 www.entrematic.com info.em@entrematic.com...
