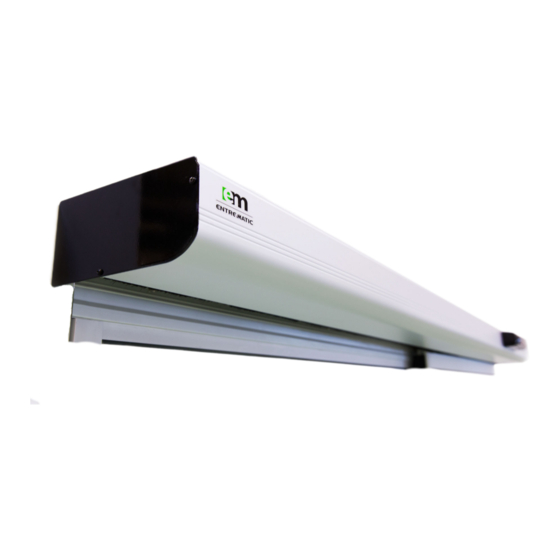

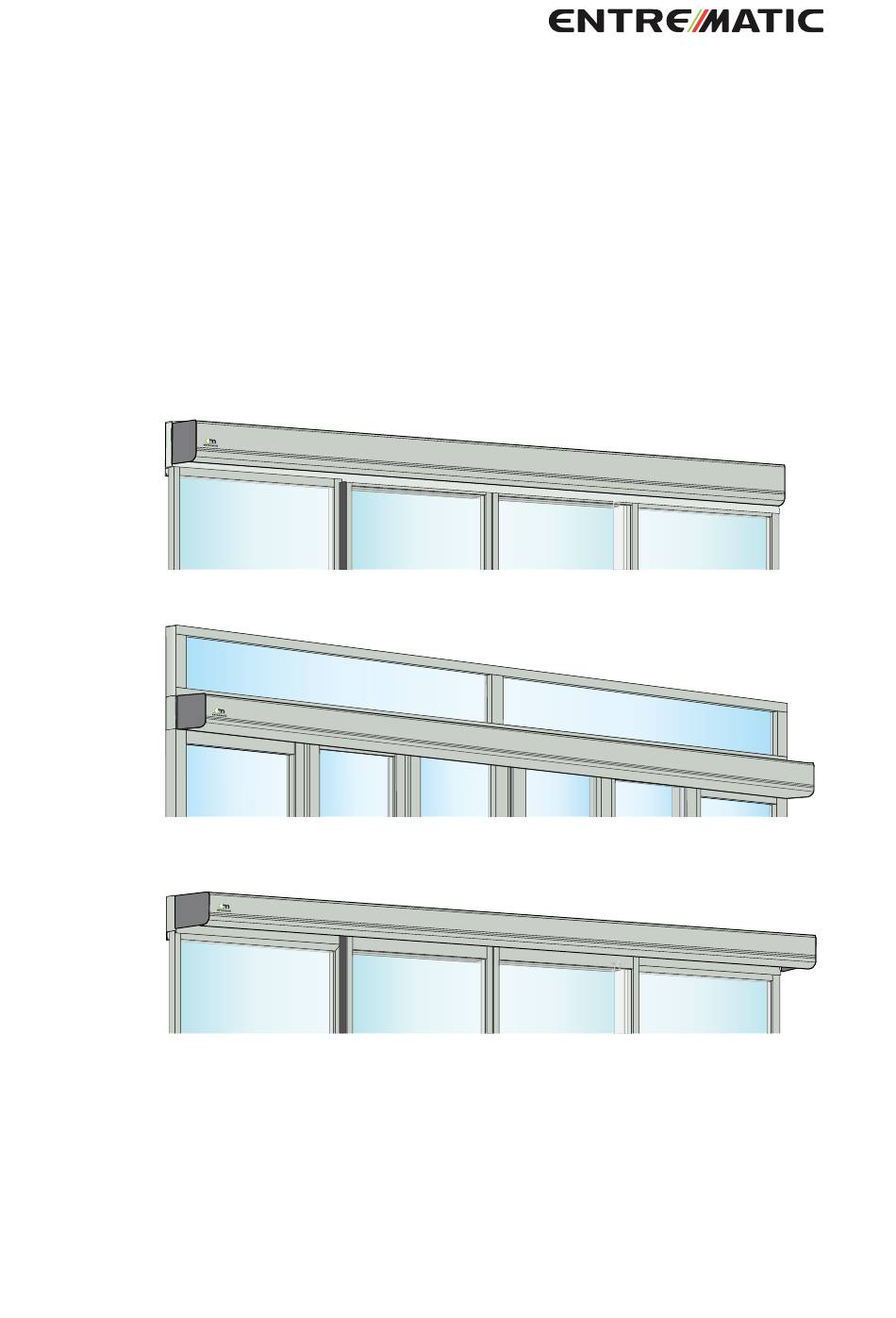

- Page 1 Sliding Door Operator EM PSL150, PSL150-T, PSL100 User Manual Original instructions...
-
Page 2: Table Of Contents
Product liability ........................... Service ..............................Intended use ........................................................Technical specification ........................How the EM PSL150, EM PSL150-T and EM PSL100 work ............Locking ..............................Unlocking ............................... Entrematic Door Connect ........................ Operation mode selectors ....................... OMS Standard and OMS BLE - Modes ............... - Page 3 Other products from Entrematic Group ..................Declaration of conformity ........................ © All rights in and to this material are the sole property of Entrematic Group AB. Copying, scanning, alterations or modifications are expressly forbidden without the prior written consent of Entrematic Group AB. Rights reserved for changes without prior notice.
-
Page 4: Instructions For Safe Operation
Instructions for safe operation Failure to observe the information in this manual may result in personal injury or damage to equipment. To reduce the risk of injury of persons - use this oper- ator only with pedestrian doors. Do not use the equipment if repair or adjustment is necessary. -
Page 5: Congratulations On Your New Automatic Door
Congratulations on your new automatic door! Entrematic Group AB has developed automatic doors for more than 50 years. State-of-the-art tech- nology and carefully tested materials and components provide you with a superior product. As with all other technical products, your automatic door requires periodic maintenance and service. -
Page 6: Service
Talk to your Entrematic Group representative to learn more about our service offering. Intended use The EM PSL150, EM PSL150-T and EM PSL100 are automatic sliding door operators developed to fa- cilitate entrances to buildings and within buildings through sliding doors. -
Page 7: How The Em Psl150, Em Psl150-T And Em Psl100 Work
The closing starts when no OPENING IMPULSE is received and the HOLD OPEN TIME has expired. The EM PSL150, EM PSL150-T and EM PSL100 user can select five different modes of operation if a mode selector is installed. See... -
Page 8: Entrematic Door Connect
Entrematic Door Connect. Installation of the app Download the app Entrematic Door Connect, at App Store or Google Play. Make sure to have your value document ready. Tap the button "+ Add Door " in the app, and follow the door setup wizard. The setup wizard will guide you how to pair the smartphone with the door. -
Page 9: Operation Mode Selectors
Operation mode selectors The door functions are set with different operation mode selectors. The operation mode selector is available with 5 positions (plus RESET). The key on the PS-6, OMS Standard and OMS BLE mode selectors must always be removed on emergency escape doors after changing settings. -
Page 10: Oms Standard And Oms Ble - Access Codes And Flashing Light Description
OMS Standard and OMS BLE - Access codes and flashing light description Codes One of four access codes can be used. No access code. The access is obtained by pushing any mode selection button for 2 seconds. Once unlocked, it will stay unlocked if no button has been pushed for 5 seconds. A passcode can be selected where the access is obtained by briefly pushing the buttons in the correct order. - Page 11 Bluetooth LED (For OMS BLE) No light Bluetooth is disabled Bluetooth is active Flashing light OMS BLE module is paring with the app Entrematic Door Connect 1016696-EMen-5.0 Issue 2019-10-01...
-
Page 12: Oms Basic And Ps-6 - Modes
OMS Basic and PS-6 - Modes OPEN, AUTO PARTIAL, AUTO, EXIT and OFF modes can be obtained. Symbol Text Mode The door is permanently open. The door can be moved by hand OPEN e.g. for window cleaning. All activation units except for the emergency push button (if fitted) are disconnected. -
Page 13: Oms Basic - Access Codes And Flashing Light Description
Note! If monitored emergency unit is a demand, a test of the emergency unit is performed when the operation mode selector is set from OFF or OPEN to any other operation mode. OMS Basic - Access codes and flashing light description Codes Three alternative selectable codes are used. -
Page 14: Safety System With Presence Sensors
The doors will start to close when the object is removed. Technologically advanced sensors The Entrematic Group sensors have been tested and approved by the Entrematic Group test labor- atory for use on Entrematic Group's automatic sliding doors. These presence sensors further improve the already high obstruction detection obtained with the built in self-monitored crush force limitation. - Page 15 1016696-EMen-5.0 Issue 2019-10-01...
-
Page 16: How To Check Your Side Presence Detector(S)
How to check your side presence detector(s) Side presence sensors can be used for example if higher door speed is required or for installations in homes for elderly/disabled or childcare centres, to protect users from being struck by the doors during their opening cycle. -
Page 17: Emergency Escape
Emergency escape The operator can be fitted with different emergency escape units to ensure a safe evacuation of the building. Break-out unit PSB The door leaves and the side screens are swung outwards when a defined pressure is applied. The break-out function can also be used to create a wider opening. From the fully swung out position, the door leaves can be manually slid sideways, offering the possibility to transport wide objects through the opening, or to make a shop entrance more inviting during good weather. -
Page 18: Regular Safety Checks
Check the safety sensors if any. If you are unsure of which type of sensor you have, please contact your Entrematic Group repres- entative. If the operator is equipped with break-out system, set the mode selector to AUTO mode. - Page 19 FUNCTION AND VISUAL INSPECTION CLEANING A gentle detergent may be used. To maintain the quality of the surface treatment, the surfaces should be cleaned once/four months period. The cleaning should be documented. To avoid damages to the profiles the brushes/weather stripping must be vacuum-cleaned weekly. Do not expose windows, doors or profiles to alkalis.
-
Page 20: Safety Accessories
Automatic door Safety accessories Even though the EM PSL150, EM PSL150-T and EM PSL100 are installed to comply with all applicable safety regulations, it is possible to enhance safety/comfort with the following add-ons (please contact your local Entrematic Group company for detailed description). -
Page 21: General Accessories
General accessories Your EM PSL150, EM PSL150-T and EM PSL100 can be further improved with the following add-ons (please contact your local Entrematic Group dealer for detailed description). Cover Made in clear anodized aluminium as standard. Paint finished in RAL colours or anodizing optional. -
Page 22: Electrical Emergency Unit With Batteries And Two Motors
Electrical emergency unit with batteries and two motors Used if a door is required to be opened by means of a rechargeable battery unit and remain in this position in the event of power failure. Authorities can demand that the emergency unit is monitored on a regular time basis. -
Page 23: Open / Close Function
The door moves slowly Prevent traffic from using the door and allow it to close completely. Reset the operator by briefly pushing the reset button (see page 9). If the problem continues, please contact your Entrematic Group representative. 1016696-EMen-5.0 Issue 2019-10-01... -
Page 24: Service/Maintenance
Service/Maintenance Service and adjustments performed by your Entrematic Group-authorized representative will ensure safe and proper operation of your automatic door unit. Remember to keep “Service Log Book” and “Site Acceptance Test and Risk Assessment” documents available. These are used together. -
Page 25: Declaration Of Conformity
IEC 60335-2-103 ed.2 1:2011 IEC 60335-1 ed. 5:2010 DIN 18650-1/-2:2010 AutSchR:1997 EC type examination or certificate issued by a notified or competent body (for full address, please contact Entrematic Group AB) concerning the equipment: SC1320-13 B 1604 85479 007 B 085479 0010 The manufacturing process ensures the compliance of the equipment with the technical file. - Page 26 Entrematic Group AB, Lodjursgatan 10, SE-261 44 Landskrona, Sweden Tel: +46 10 47 48 300 www.entrematic.com info.em@entrematic.com...
