2 Mechanical installation

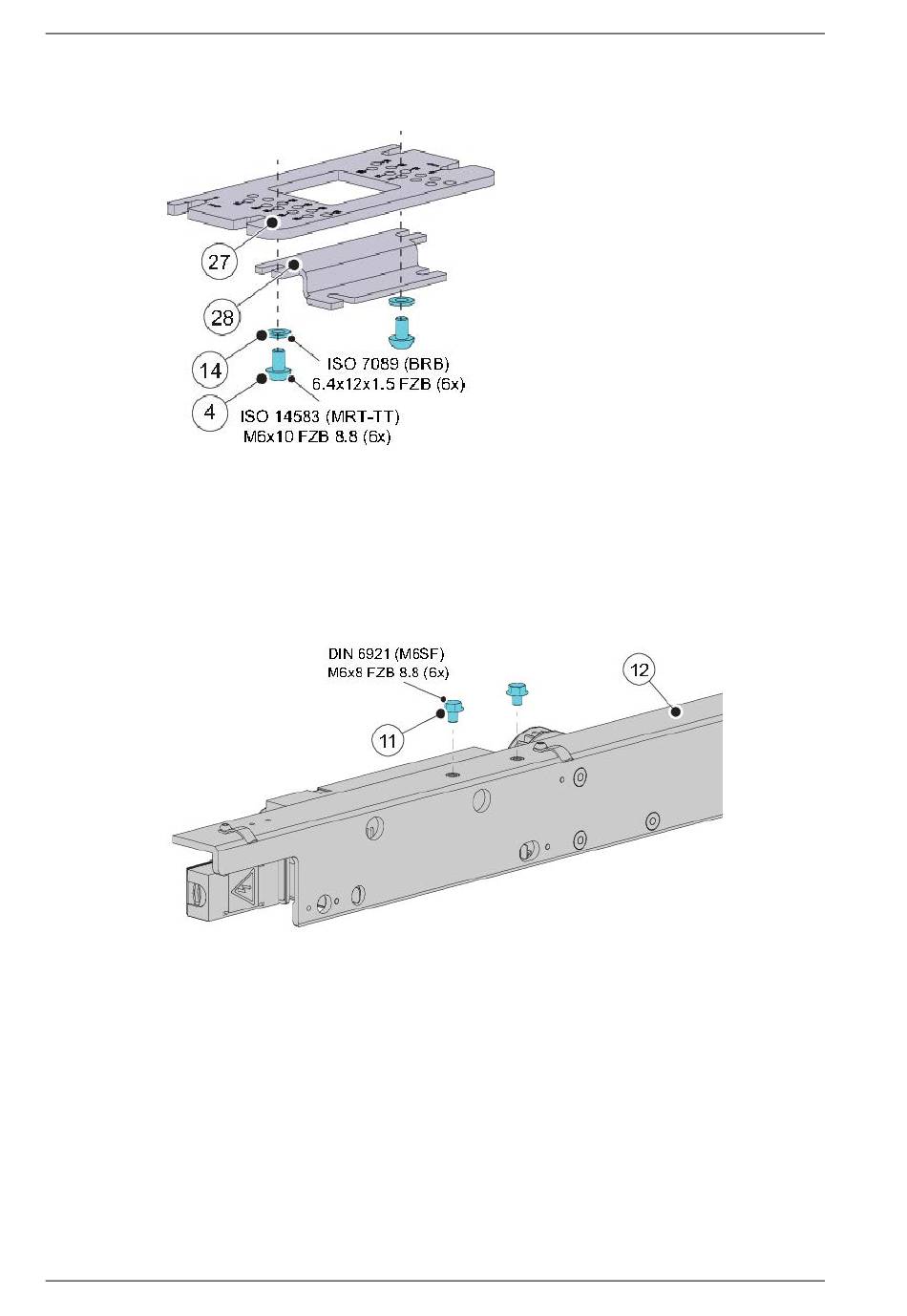

b Assemble the mounting plate (27) and mounting bracket (28) with the washers (14) and screws
(4).
c Fix two screws (11) to the backbone assembly (12), don't tighten the screws (11).
16
4
Screw: ISO 14583 (MRT-TT) M6x10 FZB 8.8
14
Washer: ISO 7089 (BRB) 6.4x12x1.5 FZB
27
Mounting plate
28
Mounting bracket
11
Screw: DIN 6921 (M6SF) M6x8 FZB 8.8
12
Backbone assembly
Issue 2019-07-13
1018482-EMen-2.0
