2 Mechanical installation

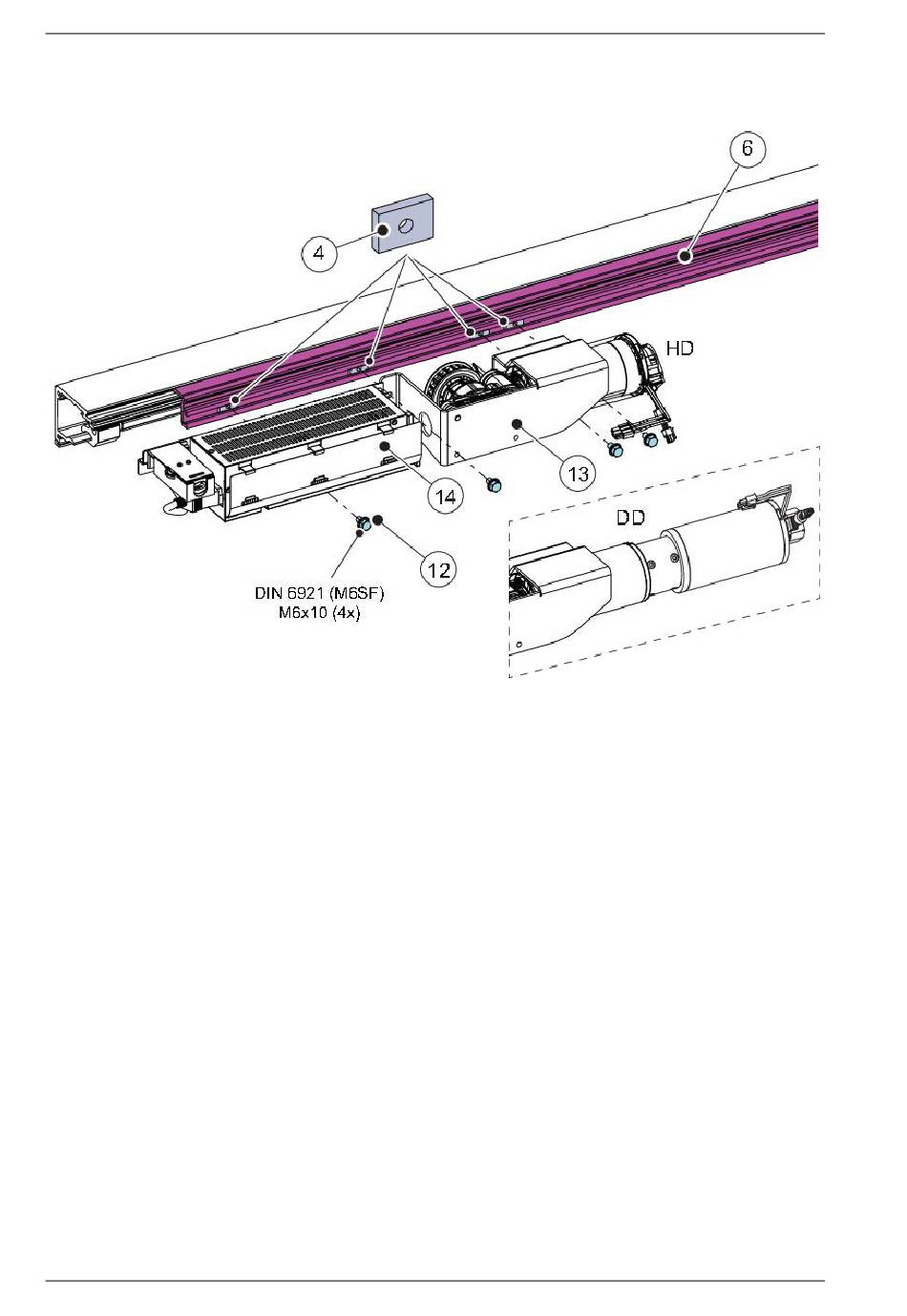

c Fix the PSU (14) and the drive unit kit (13) onto the extension beam (6) with screws (12). Then
tighten the screws (12) with a torque of 10 Nm.
94
4
Square nut: M6
6
Extension beam
12
Screw: DIN 6921 (M6SF) M6x10
13
Drive unit kit
14
PSU
Issue 2019-07-13
1018482-EMen-2.0
