2.3.7

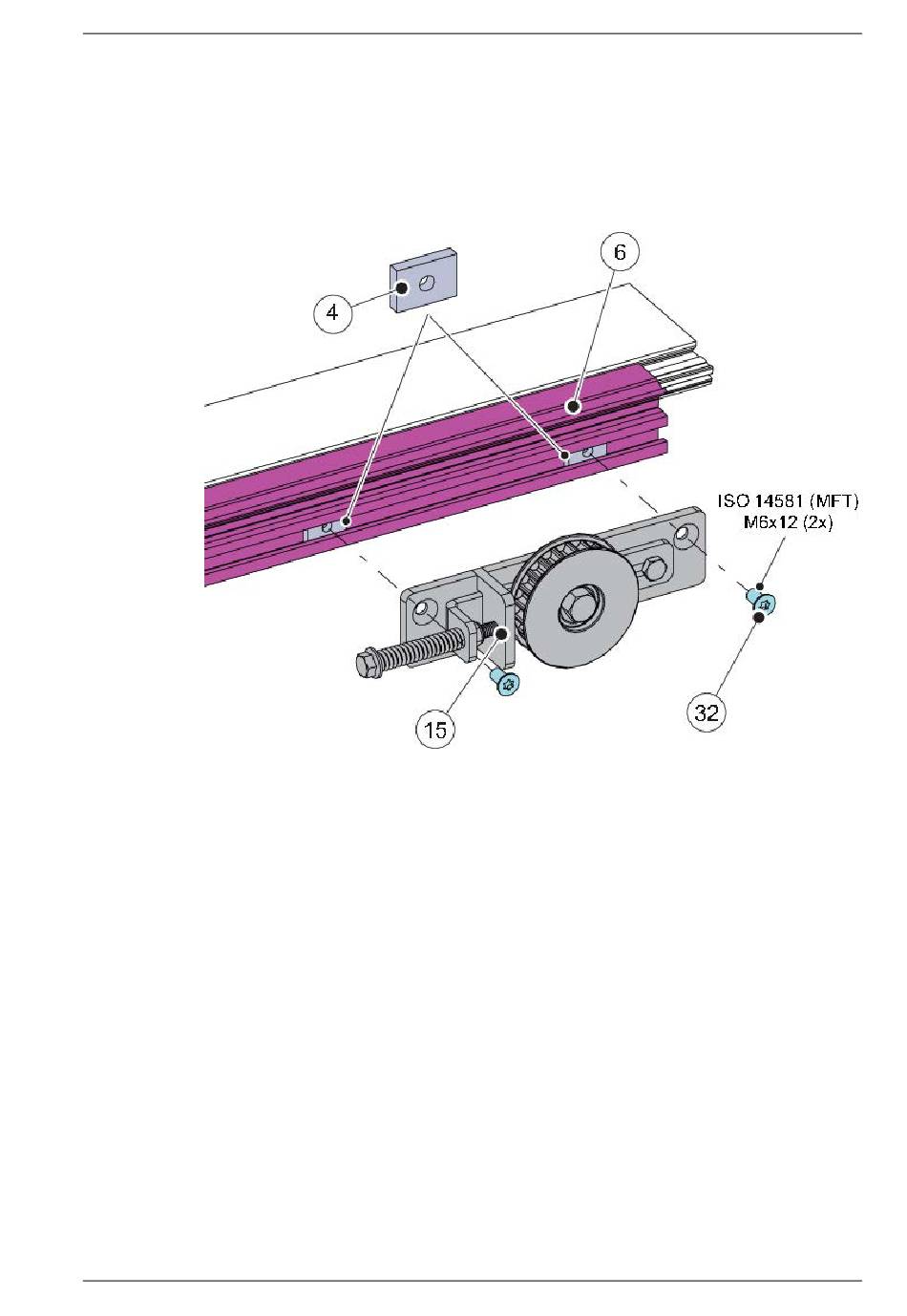

Fix the tension wheel assembly
a Fix the tension wheel assembly (15) to the extension beam (6) with the screws (32), do not
tighten the screws (32) fully, so it shall be able to slide along the extension beam (6).
b The position of the tension wheel assembly (15) should be as close as possible to the drive unit,
but make sure that the tension wheel assembly (15) will not interfere with the door carrier
when the door is fully opened.
1018482-EMen-2.0
4
Square nut: M6
6
Extension beam
15
Tension wheel assembly
32
Screw: ISO 14581 (MFT) M6x12
Issue 2019-07-13
2 Mechanical installation
97
