Fix The Brackets To The Tension Wheel; Fix The Brackets To The Belt Lock (Option) - Entrematic PSL Retrofit Kit Installation Manual

2 Mechanical installation
2.1.4

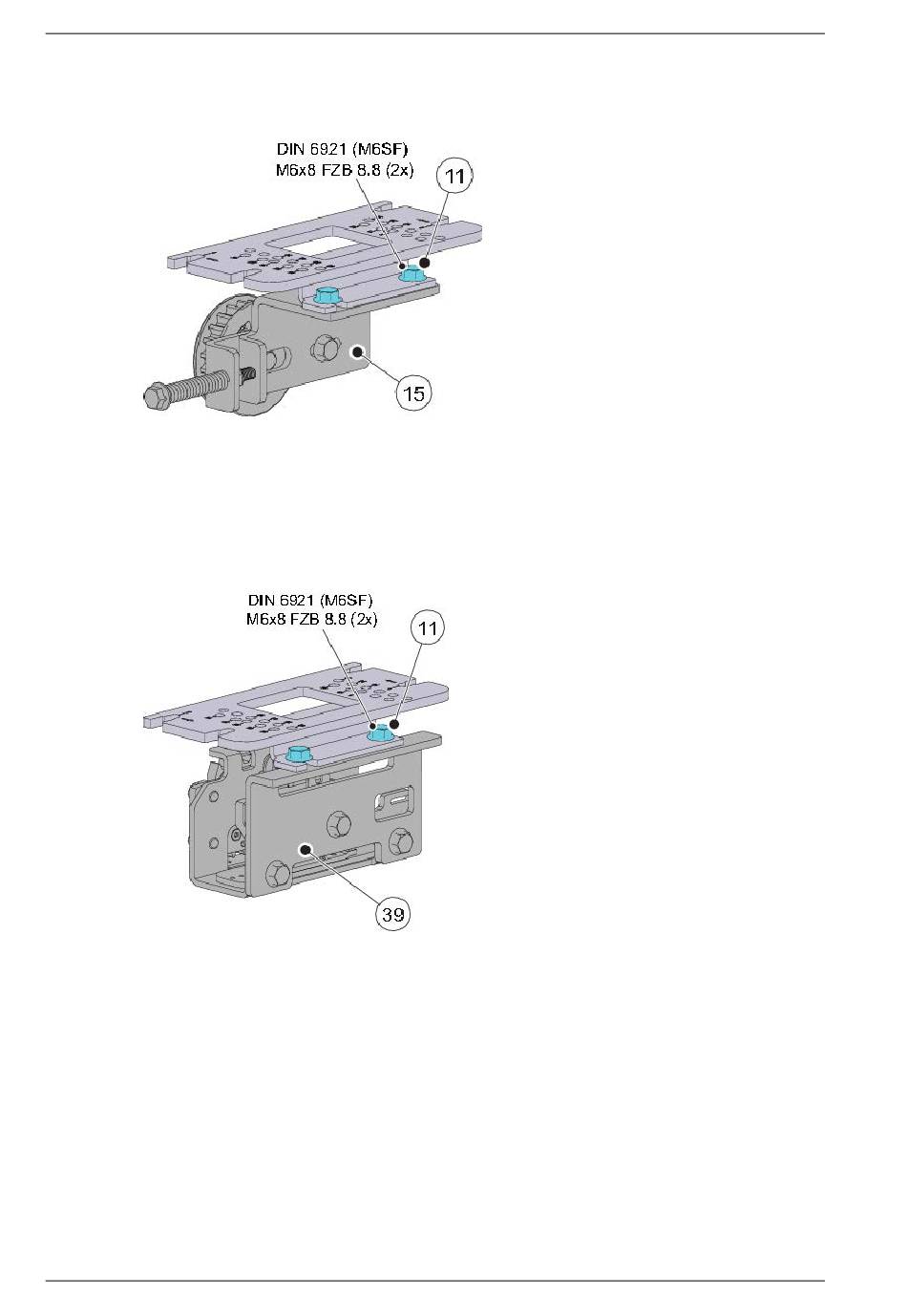

Fix the brackets to the tension wheel

Fix the brackets to the tension wheel assembly (15) in the same way as
2.1.5

Fix the brackets to the belt lock (option)

Fix the brackets to the belt lock (39) in the same way as 2.1.3.
18
11 Screw: DIN 6921 (M6SF) M6x8 FZB 8.8
15 Tension wheel assembly
11 Screw: DIN 6921 (M6SF) M6x8 FZB 8.8
39 Belt lock
Issue 2019-07-13
2.1.3 .
1018482-EMen-2.0
